E56A

Mitsubishi GALANT · 1993 · 3,287 parts · 219 categories
E56A ×

← Back to categories

3,287 items

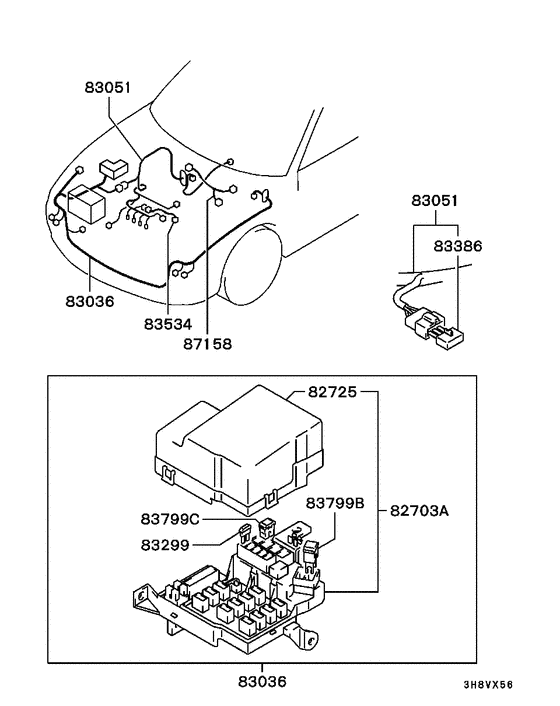

Wiring & attaching parts (WIRING HARNESS(AROUND ENGINE ROOM)) 24
#OEMPart name
82703 MB904287 BOX ASSY,RELAY
82703 MR368969 BOX ASSY,RELAY
82725 MB904291 COVER,RELAY BOX
82725 MR368978 COVER,RELAY BOX
83036 MR368963 HARNESS,CHASSIS,FR
83036 MR368967 HARNESS,CHASSIS,FR
83036 MR368968 HARNESS,CHASSIS,FR
83051 MR337475 HARNESS,CONTROL
83051 MR337478 HARNESS,CONTROL
83051 MR337473 HARNESS,CONTROL
83051 MR337476 HARNESS,CONTROL
83299 MS810986 FUSE, A/C CONTROL EQUIP - Blade type,10a
83299 MS810987 FUSE, CHASSIS WIRING - Blade type,15a
83299 MS810988 FUSE, A/C CONTROL EQUIP - Blade type,20a
83299 MS810990 FUSE, BODY WIRING - Blade type,30a
83386 MU804012 DIODE, INSTRUMENT PANEL WIRING - 1.5a,3p
83534 MR122735 SUB HARNESS,ENG CONTROL - FOR O2 SENSOR
83799 MU840022 FUSIBLE LINK - 100a,screw up type
83799 MU840015 FUSIBLE LINK - 30a,conn type
83799 MU840016 FUSIBLE LINK - 40a,conn type
83799 MU840017 FUSIBLE LINK - 50a,conn type
83799 MU840018 FUSIBLE LINK - 60a,conn type
87158 MB904048 HARNESS,A/C
87158 MR318946 HARNESS,A/C
