Search › Model › E51
E51

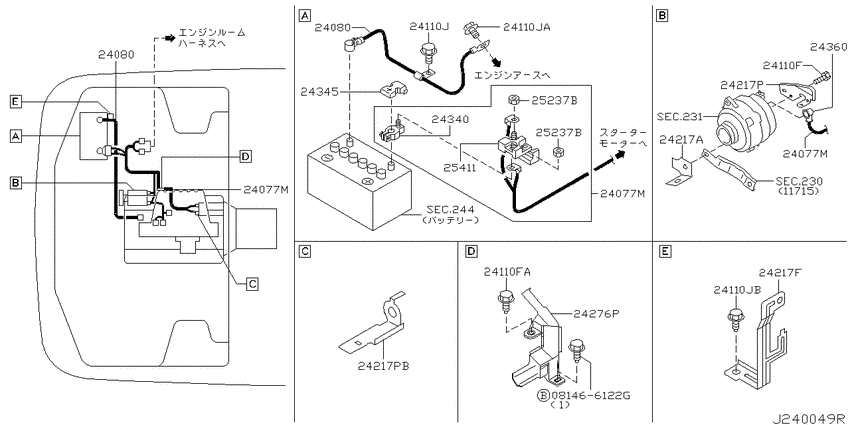

Wiring (2004-12-01 ~ 2006-12-01; ﾊﾞｯﾃﾘｰ 周り; 5K.VQ25DE) 9
| # | OEM | Part name |
|---|---|---|
| 24077 | 24077-WL620 | Harness Assy-Engine |
| 24110 | 01121-05851 | BOLT |
| 24110 | 01125-02501 | BOLT |
| 24217 | 24237-WL601 | Bracket-Harness Clip |
| 24217 | 24239-WL600 | Bracket-Harness Clip |
| 24217 | 24239-VG210 | Bracket-Harness Clip |
| 24276 | 24280-WL300 | Protector-Harness |
| 24345 | 24345-7992A | Cover-Connector |
| 24360 | 24360-4E100 | CAP-TERMINAL |
| OEM | Part name | Category |
|---|---|---|
| 01121-05851 | BOLT | Wiring (2004-12-01 ~ 2006-12-01; ﾊﾞｯﾃﾘｰ 周り; 5K.VQ25DE) |
| 01125-02501 | BOLT | Wiring (2004-12-01 ~ 2006-12-01; ﾊﾞｯﾃﾘｰ 周り; 5K.VQ25DE) |
| 24077-WL620 | Harness Assy-Engine | Wiring (2004-12-01 ~ 2006-12-01; ﾊﾞｯﾃﾘｰ 周り; 5K.VQ25DE) |
| 24237-WL601 | Bracket-Harness Clip | Wiring (2004-12-01 ~ 2006-12-01; ﾊﾞｯﾃﾘｰ 周り; 5K.VQ25DE) |
| 24239-VG210 | Bracket-Harness Clip | Wiring (2004-12-01 ~ 2006-12-01; ﾊﾞｯﾃﾘｰ 周り; 5K.VQ25DE) |
| 24239-WL600 | Bracket-Harness Clip | Wiring (2004-12-01 ~ 2006-12-01; ﾊﾞｯﾃﾘｰ 周り; 5K.VQ25DE) |
| 24280-WL300 | Protector-Harness | Wiring (2004-12-01 ~ 2006-12-01; ﾊﾞｯﾃﾘｰ 周り; 5K.VQ25DE) |
| 24345-7992A | Cover-Connector | Wiring (2004-12-01 ~ 2006-12-01; ﾊﾞｯﾃﾘｰ 周り; 5K.VQ25DE) |
| 24360-4E100 | CAP-TERMINAL | Wiring (2004-12-01 ~ 2006-12-01; ﾊﾞｯﾃﾘｰ 周り; 5K.VQ25DE) |
