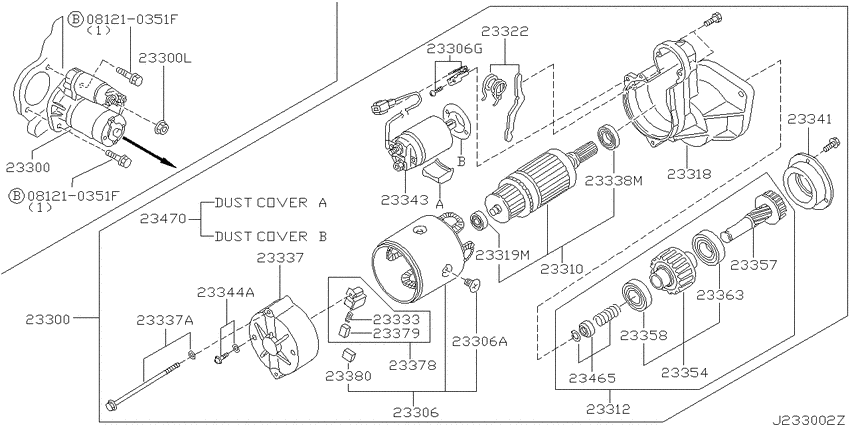

| 23300-VG102 |
Motor Assy-Starter |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23300-VG112 |
Motor Assy-Starter |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23305-09500 |
Screw-Pole Core Set |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23306-2W200 |
Coil Assy-Field |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23306-2W210 |
Coil Assy-Field |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23310-2W200 |
Armature Assy |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23312-2W200 |
Pinion Assy |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23318-2W200 |
Case Assy-Gear |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23319-M4900 |
Metal-Gear Case |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23322-2W200 |
Lever Set-Shift |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23333-W2500 |
Spring-Brush |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23337-2W200 |
Cover Assy-Rear |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23338-M4900 |
Metal-Rear Cover |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23340-2W200 |
Bolt-Through |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23341-43G00 |
Retainer-Bearing |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23343-VC101 |
Switch Assy-Magnetic |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23344-57J05 |
Screw |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23347-VC100 |
Plate-Connecting |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23354-2W200 |
Clutch Assy |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23357-6T000 |
Shaft-Pinion |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23358-07G00 |
Bearing |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23363-07G00 |
Bearing |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23378-1W400 |
Holder Assy-Brush |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23379-1W400 |
Brush-Minus |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23465-M4900 |
Stopper Set-Pinion |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
| 23470-2W200 |
Cover Set-Dust |
Starter motor (2000-08-01 ~ ; ZD30DDTI) |
