E50

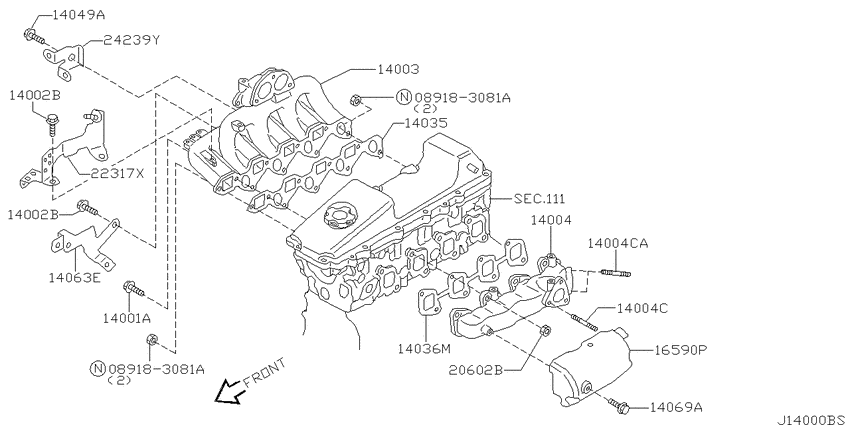

Manifold (2000-08-01 ~ ; ZD30DDTI) 13
| # | OEM | Part name |
|---|---|---|
| 14001 | 01125-08254 | BOLT |
| 14002 | 01125-08164 | BOLT-BALANCE SHAFT |
| 14003 | 14003-VG101 | Manifold-Intake |
| 14004 | 14004-2W205 | Manifold-Exhaust |
| 14004 | 14004-9S000 | Manifold-Exhaust |
| 14004 | 14414-2W202 | Stud-Turbo Housing |
| 14049 | 01125-08124 | BOLT |
| 14063 | 24136-VG100 | Bracket-Egi Harness |
| 16590 | 16590-2W203 | Cover-Exhaust Manifold |
| 16590 | 16590-9S001 | Cover-Exhaust Manifold |
| 20602 | 20602-41G00 | Nut-Fix, Exhaust Tube |
| 22317 | 14957-VG102 | Bracket |
| 24239 | 24238-VG100 | Bracket-Clip |
| OEM | Part name | Category |
|---|---|---|
| 01125-08124 | BOLT | Manifold (2000-08-01 ~ ; ZD30DDTI) |
| 01125-08164 | BOLT-BALANCE SHAFT | Manifold (2000-08-01 ~ ; ZD30DDTI) |
| 01125-08254 | BOLT | Manifold (2000-08-01 ~ ; ZD30DDTI) |
| 14003-VG101 | Manifold-Intake | Manifold (2000-08-01 ~ ; ZD30DDTI) |
| 14004-2W205 | Manifold-Exhaust | Manifold (2000-08-01 ~ ; ZD30DDTI) |
| 14004-9S000 | Manifold-Exhaust | Manifold (2000-08-01 ~ ; ZD30DDTI) |
| 14414-2W202 | Stud-Turbo Housing | Manifold (2000-08-01 ~ ; ZD30DDTI) |
| 14957-VG102 | Bracket | Manifold (2000-08-01 ~ ; ZD30DDTI) |
| 16590-2W203 | Cover-Exhaust Manifold | Manifold (2000-08-01 ~ ; ZD30DDTI) |
| 16590-9S001 | Cover-Exhaust Manifold | Manifold (2000-08-01 ~ ; ZD30DDTI) |
| 20602-41G00 | Nut-Fix, Exhaust Tube | Manifold (2000-08-01 ~ ; ZD30DDTI) |
| 24136-VG100 | Bracket-Egi Harness | Manifold (2000-08-01 ~ ; ZD30DDTI) |
| 24238-VG100 | Bracket-Clip | Manifold (2000-08-01 ~ ; ZD30DDTI) |
