Search › Model › E50
E50

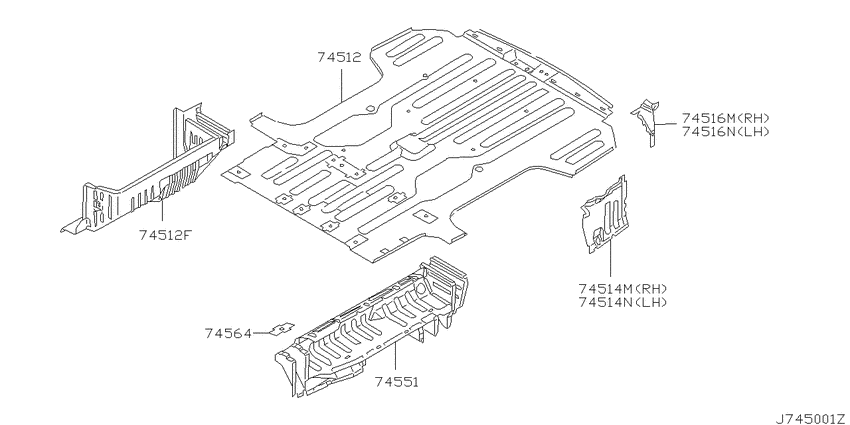

Floor panel (rear) (2000-08-01 ~ ; K) 7
| # | OEM | Part name |
|---|---|---|
| 74512 | 74512-VE000 | Floor-Rear, Front |
| 74512 | 74540-VE000 | Bracket-Air Conditioner Mounting |
| 74514 | 74532-VE000 | Floor-Rear, Rear Side Rh |
| 74514 | 74533-VE000 | Floor-Rear, Rear Side Lh |
| 74516 | 74530-VE000 | Extension-Rear Floor Side, Rh |
| 74516 | 74531-VE000 | Extension-Rear Floor Side, Lh |
| 74564 | 75446-VE001 | Bracket-2Nd Seat Mounting |
| OEM | Part name | Category |
|---|---|---|
| 74512-VE000 | Floor-Rear, Front | Floor panel (rear) (2000-08-01 ~ ; K) |
| 74530-VE000 | Extension-Rear Floor Side, Rh | Floor panel (rear) (2000-08-01 ~ ; K) |
| 74531-VE000 | Extension-Rear Floor Side, Lh | Floor panel (rear) (2000-08-01 ~ ; K) |
| 74532-VE000 | Floor-Rear, Rear Side Rh | Floor panel (rear) (2000-08-01 ~ ; K) |
| 74533-VE000 | Floor-Rear, Rear Side Lh | Floor panel (rear) (2000-08-01 ~ ; K) |
| 74540-VE000 | Bracket-Air Conditioner Mounting | Floor panel (rear) (2000-08-01 ~ ; K) |
| 75446-VE001 | Bracket-2Nd Seat Mounting | Floor panel (rear) (2000-08-01 ~ ; K) |
