Search › Model › E35A

E35A

Mitsubishi GALANT · 1989 · 3,289 parts · 225 categories

3,289 items

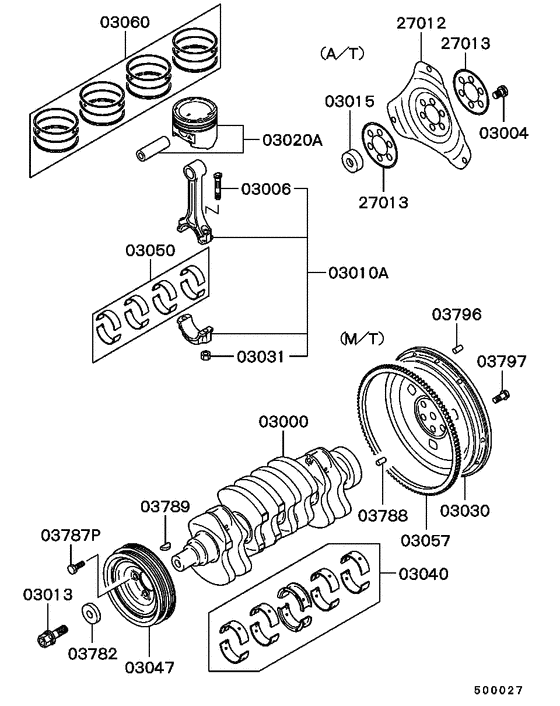

Piston & crankshaft (ALL) 29

#	OEM	Part name
3000	MD097470	CRANKSHAFT
3004	MD952233	BOLT, A/T DRIVE PLATE - 12x17
3006	MD040553	BOLT, CONNROD
3010	MD040550	CONNECTING ROD ASSY
3013	MD074255	CENTER BOLT, CRANKSHAFT PULLEY - 14x40
3015	MD011848	BUSHING, CRANKSHAFT
3020	MD148586	PISTON & PIN ASSY - O/size 0.25
3020	MD148587	PISTON & PIN ASSY - O/size 0.50
3020	MD148588	PISTON & PIN ASSY - O/size 0.75
3020	MD148589	PISTON & PIN ASSY - O/size 1.00
3020	MD149014	PISTON & PIN ASSY - Std a
3020	MD149015	PISTON & PIN ASSY - Std b
3020	MD149016	PISTON & PIN ASSY - Std c
3031	MD006704	NUT, CONNROD - 9
3040	MD091399	BEARING SET, CRANKSHAFT - Plain,std
3047	MD130250	PULLEY, CRANKSHAFT - Ribbed
3050	MD129423	BEARING SET, CONNROD - Plain,std
3060	MD153602	RING SET, PISTON - Std
3060	MD153603	RING SET, PISTON - O/size 0.25
3060	MD153604	RING SET, PISTON - O/size 0.50
3060	MD153605	RING SET, PISTON - O/size 0.75
3060	MD153606	RING SET, PISTON - O/size 1.00
3782	MD012455	WASHER, CRANKSHAFT PULLEY - Plain,14.5
3782	MD377400	WASHER, CRANKSHAFT PULLEY - 14.5
3787	MS240211	BOLT, CRANKSHAFT PULLEY - Washer assembled,8x25
3789	MD008959	KEY, CRANKSHAFT
3797	MD040557	BOLT, CRANKSHAFT - Flange,12x22.5
27012	MD710902	PLATE, A/T DRIVE
27013	MD952138	PLATE, A/T DRIVE PLATE ADAPTER

OEM	Part name	Category
MD006704	NUT, CONNROD - 9	Piston & crankshaft (ALL)
MD008959	KEY, CRANKSHAFT	Piston & crankshaft (ALL)
MD011848	BUSHING, CRANKSHAFT	Piston & crankshaft (ALL)
MD012455	WASHER, CRANKSHAFT PULLEY - Plain,14.5	Piston & crankshaft (ALL)
MD040550	CONNECTING ROD ASSY	Piston & crankshaft (ALL)
MD040553	BOLT, CONNROD	Piston & crankshaft (ALL)
MD040557	BOLT, CRANKSHAFT - Flange,12x22.5	Piston & crankshaft (ALL)
MD074255	CENTER BOLT, CRANKSHAFT PULLEY - 14x40	Piston & crankshaft (ALL)
MD091399	BEARING SET, CRANKSHAFT - Plain,std	Piston & crankshaft (ALL)
MD097470	CRANKSHAFT	Piston & crankshaft (ALL)
MD129423	BEARING SET, CONNROD - Plain,std	Piston & crankshaft (ALL)
MD130250	PULLEY, CRANKSHAFT - Ribbed	Piston & crankshaft (ALL)
MD148586	PISTON & PIN ASSY - O/size 0.25	Piston & crankshaft (ALL)
MD148587	PISTON & PIN ASSY - O/size 0.50	Piston & crankshaft (ALL)
MD148588	PISTON & PIN ASSY - O/size 0.75	Piston & crankshaft (ALL)
MD148589	PISTON & PIN ASSY - O/size 1.00	Piston & crankshaft (ALL)
MD149014	PISTON & PIN ASSY - Std a	Piston & crankshaft (ALL)
MD149015	PISTON & PIN ASSY - Std b	Piston & crankshaft (ALL)
MD149016	PISTON & PIN ASSY - Std c	Piston & crankshaft (ALL)
MD153602	RING SET, PISTON - Std	Piston & crankshaft (ALL)
MD153603	RING SET, PISTON - O/size 0.25	Piston & crankshaft (ALL)
MD153604	RING SET, PISTON - O/size 0.50	Piston & crankshaft (ALL)
MD153605	RING SET, PISTON - O/size 0.75	Piston & crankshaft (ALL)
MD153606	RING SET, PISTON - O/size 1.00	Piston & crankshaft (ALL)
MD377400	WASHER, CRANKSHAFT PULLEY - 14.5	Piston & crankshaft (ALL)
MD710902	PLATE, A/T DRIVE	Piston & crankshaft (ALL)
MD952138	PLATE, A/T DRIVE PLATE ADAPTER	Piston & crankshaft (ALL)
MD952233	BOLT, A/T DRIVE PLATE - 12x17	Piston & crankshaft (ALL)
MS240211	BOLT, CRANKSHAFT PULLEY - Washer assembled,8x25	Piston & crankshaft (ALL)

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 225
Collected: 2026-07-25
