| 01125-06164 |
BOLT |

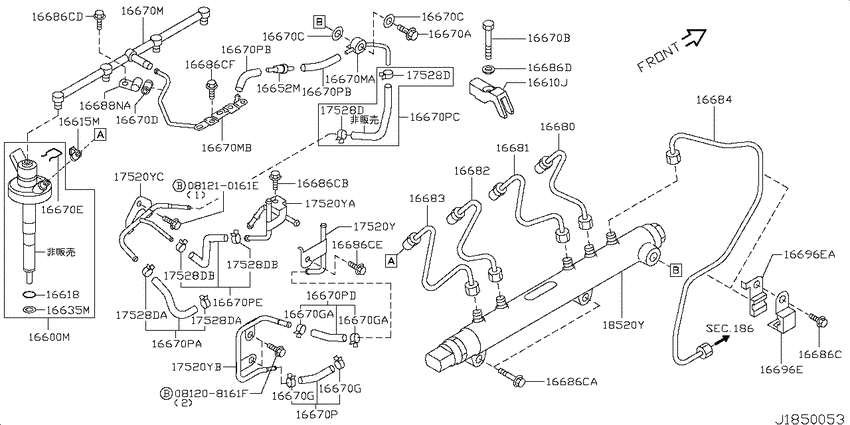

Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 01125-08164 |
BOLT-BALANCE SHAFT |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 01351-21124 |
GASKET-SENSOR |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 01561-00064 |
INSERT RUBBER |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 01619-00581 |
EYEBOLT |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 08121-0161E |
Bolt-hexagon |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 16618-DB000 |
SEALO RINGNOZ |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 16650-DB000 |
Protector-Nozzle |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 16657-2W200 |
Washer-Lock |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 16670-MA70B |
TUBEFUEL SPILL |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 16672-VZ20B |
Tube-Fuel Spill |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 16688-VZ20B |
Bracket Assy |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 16696-MA70A |
Clamp |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 16697-MA70A |
Clamp |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 16815-2W20B |
Bolt-Connector |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 16883-DB000 |
Clip |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 17520-VS41B |
Tube Assy-Fuel |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 17520-VS42A |
Tube Assy-Fuel |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 17520-VZ20A |
Tube Assy-Fuel |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 17520-VZ20B |
Tube Assy-Fuel |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 17528-VS41B |
Hose-Fuel |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 17528-VS41C |
Hose-Fuel |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 17528-VS41D |
Hose-Fuel |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 17528-VZ21A |
Hose-Fuel |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
| 17528-VZ21E |
Hose-Fuel |
Fuel supply system (2007-09-01 ~ ; ZD30DDTI) |
