E24

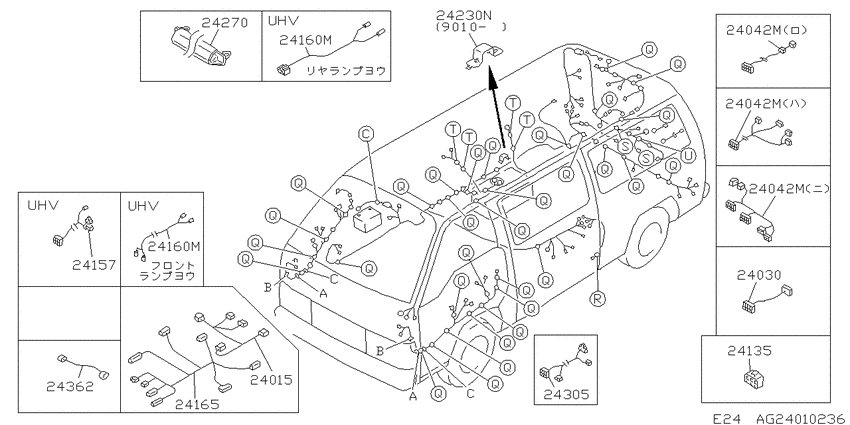

Wiring harness (1986-09-01 ~ ; ボデー(その2); ALL) 10
| # | OEM | Part name |
|---|---|---|
| 24015 | 24015-37N00 | Harness Assy-Tail |
| 24042 | 24019-27N00 | Harness |
| 24042 | 24062-27N00 | Harness-Slide Door |
| 24042 | 24168-27N10 | Harness |
| 24042 | 24024-20N00 | Harness |
| 24165 | 24095-37N00 | Harness Assy-Rear Body, A |
| 24230 | 24230-37N00 | Bracket |
| 24270 | 24342-04P00 | Protector-Harness |
| 24305 | 24127-05N02 | Harness Assy-Door, Rear Lh |
| 24362 | 24075-20N00 | Harness Assy-Solenoid |
| OEM | Part name | Category |
|---|---|---|
| 24015-37N00 | Harness Assy-Tail | Wiring harness (1986-09-01 ~ ; ボデー(その2); ALL) |
| 24019-27N00 | Harness | Wiring harness (1986-09-01 ~ ; ボデー(その2); ALL) |
| 24024-20N00 | Harness | Wiring harness (1986-09-01 ~ ; ボデー(その2); ALL) |
| 24062-27N00 | Harness-Slide Door | Wiring harness (1986-09-01 ~ ; ボデー(その2); ALL) |
| 24075-20N00 | Harness Assy-Solenoid | Wiring harness (1986-09-01 ~ ; ボデー(その2); ALL) |
| 24095-37N00 | Harness Assy-Rear Body, A | Wiring harness (1986-09-01 ~ ; ボデー(その2); ALL) |
| 24127-05N02 | Harness Assy-Door, Rear Lh | Wiring harness (1986-09-01 ~ ; ボデー(その2); ALL) |
| 24168-27N10 | Harness | Wiring harness (1986-09-01 ~ ; ボデー(その2); ALL) |
| 24230-37N00 | Bracket | Wiring harness (1986-09-01 ~ ; ボデー(その2); ALL) |
| 24342-04P00 | Protector-Harness | Wiring harness (1986-09-01 ~ ; ボデー(その2); ALL) |
