Search › Model › E12AR

E12AR

Mitsubishi GALANT-SIGMA · 1984 · 3,590 parts · 211 categories

3,590 items

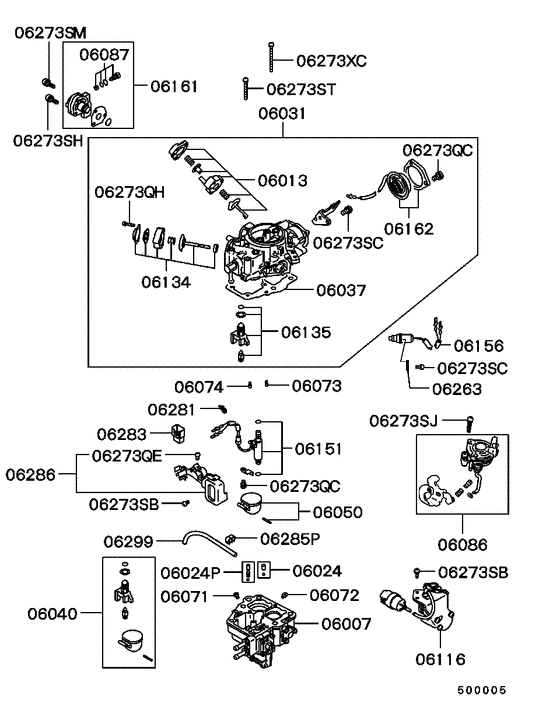

Carburetor (8601.1- (INNER PARTS UPPER)) 61

#	OEM	Part name
6007	MD608772	BODY, CARB MIXING
6007	MD612575	BODY, CARB MIXING
6013	MD617189	BREAKER KIT, CARB CHOKE
6013	MD617190	BREAKER KIT, CARB CHOKE
6024	MD606852	CHECK VALVE KIT, CARB ACCEL PUMP OUTLET
6024	MD612419	CHECK VALVE KIT, CARB ACCEL PUMP OUTLET
6024	MD626368	CHECK VALVE KIT, CARB ACCEL PUMP OUTLET
6031	MD608761	COVER KIT, CARB FLOAT CHAMBER
6031	MD612310	COVER KIT, CARB FLOAT CHAMBER
6031	MD612568	COVER KIT, CARB FLOAT CHAMBER
6031	MD612913	COVER KIT, CARB FLOAT CHAMBER
6037	MD608639	GASKET, CARB FLOAT CHAMBER COVER
6037	MD612561	GASKET, CARB FLOAT CHAMBER COVER
6037	MD612573	GASKET, CARB FLOAT CHAMBER COVER
6040	MD606860	FLOAT & NEEDLE VALVE KIT, CARB
6040	MD612453	FLOAT & NEEDLE VALVE KIT, CARB
6050	MD606844	FLOAT & PIN KIT, CARB
6050	MD612213	FLOAT & PIN KIT, CARB
6071	MD600744	JET, CARB MAIN - #97.5
6071	MD600843	JET, CARB MAIN - #102.5
6072	MD600844	JET, CARB MAIN - #175
6072	MD606199	JET, CARB MAIN - #152.5
6073	MD606968	JET, CARB ENRICHMENT - #57.5
6073	MD612570	JET, CARB PILOT - #41.3
6074	MD606975	JET, CARB ENRICHMENT - #75
6074	MD608030	JET, CARB ENRICHMENT - #62.5
6086	MD608767	OPENER KIT, CARB THROTTLE
6086	MD612315	OPENER KIT, CARB THROTTLE
6086	MD612574	OPENER KIT, CARB THROTTLE
6087	MD617226	ORIFICE KIT, CARB MIXTURE CONTROL VALVE
6134	MD608684	VALVE KIT, CARB BOWL VENTILATOR
6134	MD612106	VALVE KIT, CARB BOWL VENTILATOR
6134	MD612452	VALVE KIT, CARB BOWL VENTILATOR
6134	MD617185	VALVE KIT, CARB BOWL VENTILATOR
6135	MD606843	NEEDLE VALVE KIT, CARB FLOAT
6135	MD612417	NEEDLE VALVE KIT, CARB FLOAT
6151	MD612576	VALVE KIT, CARB SOLENOID
6156	MD612006	VALVE KIT, CARB SOLENOID
6156	MD612434	VALVE, CARB SLOW CUT SOLENOID
6161	MD612416	BODY, CARB MIXTURE CONTROL VALVE
6162	MD612555	BIMETAL KIT, CARB
6263	MD612427	PLATE, CARB INR
6273	MF350024	SCREW, FUEL TANK - Washer assembled,4x10
6273	MF350026	SCREW, ENG HANGER - Washer assembled,4x14
6273	MF350029	SCREW, CARB INR
6273	MF350047	SCREW, FLYWHEEL HOUSING - Washer assembled,5x10
6273	MF350048	SCREW, ACCEL CABLE SUPPORT - Washer assembled,5x12
6273	MF350053	SCREW, CARB INR
6273	MF350054	SCREW, LPG TANK - Washer assembled,5x25
6273	MF350056	SCREW, CARB INR
6273	MF350061	SCREW, CARB INR
6273	MD606948	SCREW, CARB INR
6281	MD608632	CLIP, CARB INR
6283	MD612016	CONNECTOR, CARB INR
6283	MD612556	CONNECTOR, CARB INR
6285	MD001843	CLAMP, CARB INR
6286	MD608787	BRACKET, CARB INR
6286	MD612017	BRACKET, CARB INR
6286	MD612557	BRACKET, CARB INR
6299	MD606951	HOSE, CARB DEPRESSION CHAMBER - 1000
6299	MD617777	HOSE, CARB INR - 1000

OEM	Part name	Category
MD001843	CLAMP, CARB INR	Carburetor (8601.1- (INNER PARTS UPPER))
MD600744	JET, CARB MAIN - #97.5	Carburetor (8601.1- (INNER PARTS UPPER))
MD600843	JET, CARB MAIN - #102.5	Carburetor (8601.1- (INNER PARTS UPPER))
MD600844	JET, CARB MAIN - #175	Carburetor (8601.1- (INNER PARTS UPPER))
MD606199	JET, CARB MAIN - #152.5	Carburetor (8601.1- (INNER PARTS UPPER))
MD606843	NEEDLE VALVE KIT, CARB FLOAT	Carburetor (8601.1- (INNER PARTS UPPER))
MD606844	FLOAT & PIN KIT, CARB	Carburetor (8601.1- (INNER PARTS UPPER))
MD606852	CHECK VALVE KIT, CARB ACCEL PUMP OUTLET	Carburetor (8601.1- (INNER PARTS UPPER))
MD606860	FLOAT & NEEDLE VALVE KIT, CARB	Carburetor (8601.1- (INNER PARTS UPPER))
MD606948	SCREW, CARB INR	Carburetor (8601.1- (INNER PARTS UPPER))
MD606951	HOSE, CARB DEPRESSION CHAMBER - 1000	Carburetor (8601.1- (INNER PARTS UPPER))
MD606968	JET, CARB ENRICHMENT - #57.5	Carburetor (8601.1- (INNER PARTS UPPER))
MD606975	JET, CARB ENRICHMENT - #75	Carburetor (8601.1- (INNER PARTS UPPER))
MD608030	JET, CARB ENRICHMENT - #62.5	Carburetor (8601.1- (INNER PARTS UPPER))
MD608632	CLIP, CARB INR	Carburetor (8601.1- (INNER PARTS UPPER))
MD608639	GASKET, CARB FLOAT CHAMBER COVER	Carburetor (8601.1- (INNER PARTS UPPER))
MD608684	VALVE KIT, CARB BOWL VENTILATOR	Carburetor (8601.1- (INNER PARTS UPPER))
MD608761	COVER KIT, CARB FLOAT CHAMBER	Carburetor (8601.1- (INNER PARTS UPPER))
MD608767	OPENER KIT, CARB THROTTLE	Carburetor (8601.1- (INNER PARTS UPPER))
MD608772	BODY, CARB MIXING	Carburetor (8601.1- (INNER PARTS UPPER))
MD608787	BRACKET, CARB INR	Carburetor (8601.1- (INNER PARTS UPPER))
MD612006	VALVE KIT, CARB SOLENOID	Carburetor (8601.1- (INNER PARTS UPPER))
MD612016	CONNECTOR, CARB INR	Carburetor (8601.1- (INNER PARTS UPPER))
MD612017	BRACKET, CARB INR	Carburetor (8601.1- (INNER PARTS UPPER))
MD612106	VALVE KIT, CARB BOWL VENTILATOR	Carburetor (8601.1- (INNER PARTS UPPER))
MD612213	FLOAT & PIN KIT, CARB	Carburetor (8601.1- (INNER PARTS UPPER))
MD612310	COVER KIT, CARB FLOAT CHAMBER	Carburetor (8601.1- (INNER PARTS UPPER))
MD612315	OPENER KIT, CARB THROTTLE	Carburetor (8601.1- (INNER PARTS UPPER))
MD612416	BODY, CARB MIXTURE CONTROL VALVE	Carburetor (8601.1- (INNER PARTS UPPER))
MD612417	NEEDLE VALVE KIT, CARB FLOAT	Carburetor (8601.1- (INNER PARTS UPPER))
MD612419	CHECK VALVE KIT, CARB ACCEL PUMP OUTLET	Carburetor (8601.1- (INNER PARTS UPPER))
MD612427	PLATE, CARB INR	Carburetor (8601.1- (INNER PARTS UPPER))
MD612434	VALVE, CARB SLOW CUT SOLENOID	Carburetor (8601.1- (INNER PARTS UPPER))
MD612452	VALVE KIT, CARB BOWL VENTILATOR	Carburetor (8601.1- (INNER PARTS UPPER))
MD612453	FLOAT & NEEDLE VALVE KIT, CARB	Carburetor (8601.1- (INNER PARTS UPPER))
MD612555	BIMETAL KIT, CARB	Carburetor (8601.1- (INNER PARTS UPPER))
MD612556	CONNECTOR, CARB INR	Carburetor (8601.1- (INNER PARTS UPPER))
MD612557	BRACKET, CARB INR	Carburetor (8601.1- (INNER PARTS UPPER))
MD612561	GASKET, CARB FLOAT CHAMBER COVER	Carburetor (8601.1- (INNER PARTS UPPER))
MD612568	COVER KIT, CARB FLOAT CHAMBER	Carburetor (8601.1- (INNER PARTS UPPER))
MD612570	JET, CARB PILOT - #41.3	Carburetor (8601.1- (INNER PARTS UPPER))
MD612573	GASKET, CARB FLOAT CHAMBER COVER	Carburetor (8601.1- (INNER PARTS UPPER))
MD612574	OPENER KIT, CARB THROTTLE	Carburetor (8601.1- (INNER PARTS UPPER))
MD612575	BODY, CARB MIXING	Carburetor (8601.1- (INNER PARTS UPPER))
MD612576	VALVE KIT, CARB SOLENOID	Carburetor (8601.1- (INNER PARTS UPPER))
MD612913	COVER KIT, CARB FLOAT CHAMBER	Carburetor (8601.1- (INNER PARTS UPPER))
MD617185	VALVE KIT, CARB BOWL VENTILATOR	Carburetor (8601.1- (INNER PARTS UPPER))
MD617189	BREAKER KIT, CARB CHOKE	Carburetor (8601.1- (INNER PARTS UPPER))
MD617190	BREAKER KIT, CARB CHOKE	Carburetor (8601.1- (INNER PARTS UPPER))
MD617226	ORIFICE KIT, CARB MIXTURE CONTROL VALVE	Carburetor (8601.1- (INNER PARTS UPPER))
MD617777	HOSE, CARB INR - 1000	Carburetor (8601.1- (INNER PARTS UPPER))
MD626368	CHECK VALVE KIT, CARB ACCEL PUMP OUTLET	Carburetor (8601.1- (INNER PARTS UPPER))
MF350024	SCREW, FUEL TANK - Washer assembled,4x10	Carburetor (8601.1- (INNER PARTS UPPER))
MF350026	SCREW, ENG HANGER - Washer assembled,4x14	Carburetor (8601.1- (INNER PARTS UPPER))
MF350029	SCREW, CARB INR	Carburetor (8601.1- (INNER PARTS UPPER))
MF350047	SCREW, FLYWHEEL HOUSING - Washer assembled,5x10	Carburetor (8601.1- (INNER PARTS UPPER))
MF350048	SCREW, ACCEL CABLE SUPPORT - Washer assembled,5x12	Carburetor (8601.1- (INNER PARTS UPPER))
MF350053	SCREW, CARB INR	Carburetor (8601.1- (INNER PARTS UPPER))
MF350054	SCREW, LPG TANK - Washer assembled,5x25	Carburetor (8601.1- (INNER PARTS UPPER))
MF350056	SCREW, CARB INR	Carburetor (8601.1- (INNER PARTS UPPER))
MF350061	SCREW, CARB INR	Carburetor (8601.1- (INNER PARTS UPPER))
