E12AR

Mitsubishi GALANT-SIGMA · 1984 · 3,590 parts · 211 categories

← Back to categories

3,590 items

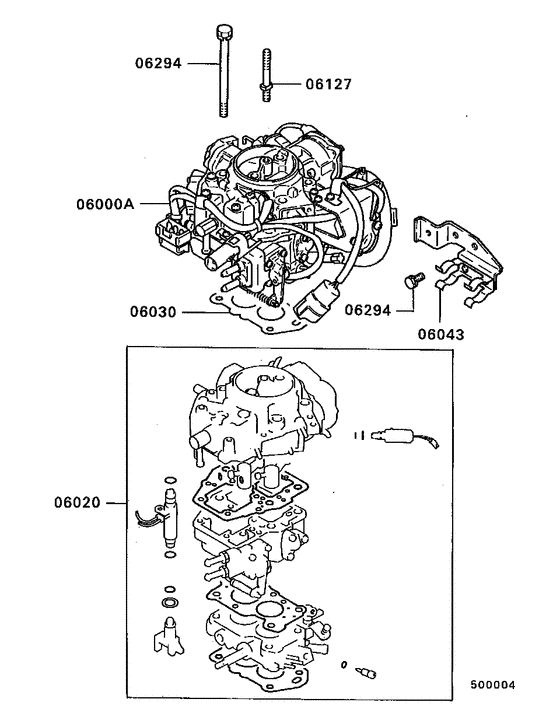

Carburetor (8601.1- (ASSEMBLY)) 13

#	OEM	Part name
6000	MD071611	CARBURETOR ASSY
6000	MD082662	CARBURETOR ASSY
6000	MD100477	CARBURETOR ASSY
6000	MD113931	CARBURETOR ASSY
6020	MD608769	GASKET KIT, CARB
6020	MD612572	GASKET KIT, CARB
6020	MD617264	GASKET KIT, CARB
6030	MD025344	GASKET, CARB
6030	MD091628	GASKET, CARB
6127	MD600446	STUD, CARB
6294	MD025419	BOLT, CARB - Washer assembled,8x110
6294	MD025519	BOLT, CARB - Washer assembled,8x110
6294	MF241227	BOLT, ROCKER COVER - Washer assembled,6x20

OEM	Part name	Category
MD025344	GASKET, CARB	Carburetor (8601.1- (ASSEMBLY))
MD025419	BOLT, CARB - Washer assembled,8x110	Carburetor (8601.1- (ASSEMBLY))
MD025519	BOLT, CARB - Washer assembled,8x110	Carburetor (8601.1- (ASSEMBLY))
MD071611	CARBURETOR ASSY	Carburetor (8601.1- (ASSEMBLY))
MD082662	CARBURETOR ASSY	Carburetor (8601.1- (ASSEMBLY))
MD091628	GASKET, CARB	Carburetor (8601.1- (ASSEMBLY))
MD100477	CARBURETOR ASSY	Carburetor (8601.1- (ASSEMBLY))
MD113931	CARBURETOR ASSY	Carburetor (8601.1- (ASSEMBLY))
MD600446	STUD, CARB	Carburetor (8601.1- (ASSEMBLY))
MD608769	GASKET KIT, CARB	Carburetor (8601.1- (ASSEMBLY))
MD612572	GASKET KIT, CARB	Carburetor (8601.1- (ASSEMBLY))
MD617264	GASKET KIT, CARB	Carburetor (8601.1- (ASSEMBLY))
MF241227	BOLT, ROCKER COVER - Washer assembled,6x20	Carburetor (8601.1- (ASSEMBLY))
