DK4A

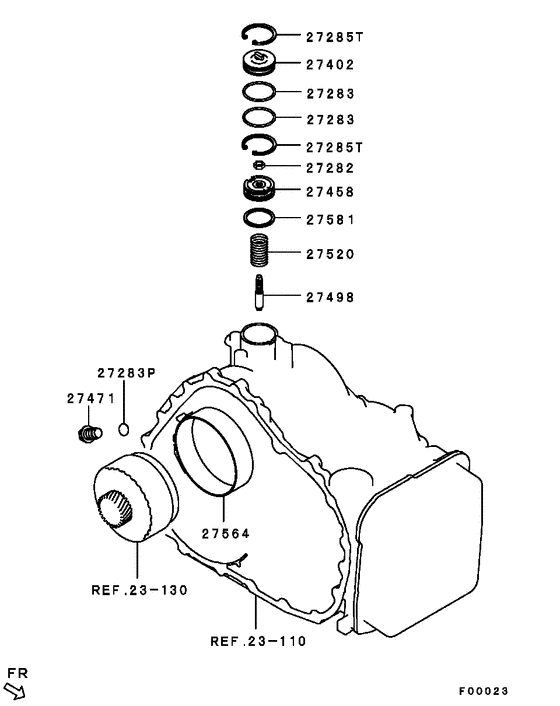

A/t brake (ALL (REDUCTION BRAKE)) 11
| # | OEM | Part name |
|---|---|---|
| 27282 | MD756943 | NUT, A/T BRAKE - Jam,10 |
| 27283 | MD759015 | O-RING, A/T BRAKE - 47 |
| 27283 | MD750175 | O-RING, A/T BRAKE - 16 |
| 27285 | MD758938 | SNAP RING, A/T BRAKE - 1.5 |
| 27402 | MD758939 | COVER, A/T REDUCTION BRAKE PISTON |
| 27458 | MD758940 | PISTON, A/T REDUCTION BRAKE |
| 27471 | MD750254 | PLUG, A/T BRAKE |
| 27498 | MD758353 | ROD, A/T REDUCTION BRAKE PISTON |
| 27520 | MD758459 | SPRING, A/T REDUCTION BRAKE PISTON |
| 27564 | MD762016 | BAND, A/T BRAKE |
| 27581 | MD758998 | SEAL RING, A/T BRAKE - 41.4 |
| OEM | Part name | Category |
|---|---|---|
| MD750175 | O-RING, A/T BRAKE - 16 | A/t brake (ALL (REDUCTION BRAKE)) |
| MD750254 | PLUG, A/T BRAKE | A/t brake (ALL (REDUCTION BRAKE)) |
| MD756943 | NUT, A/T BRAKE - Jam,10 | A/t brake (ALL (REDUCTION BRAKE)) |
| MD758353 | ROD, A/T REDUCTION BRAKE PISTON | A/t brake (ALL (REDUCTION BRAKE)) |
| MD758459 | SPRING, A/T REDUCTION BRAKE PISTON | A/t brake (ALL (REDUCTION BRAKE)) |
| MD758938 | SNAP RING, A/T BRAKE - 1.5 | A/t brake (ALL (REDUCTION BRAKE)) |
| MD758939 | COVER, A/T REDUCTION BRAKE PISTON | A/t brake (ALL (REDUCTION BRAKE)) |
| MD758940 | PISTON, A/T REDUCTION BRAKE | A/t brake (ALL (REDUCTION BRAKE)) |
| MD758998 | SEAL RING, A/T BRAKE - 41.4 | A/t brake (ALL (REDUCTION BRAKE)) |
| MD759015 | O-RING, A/T BRAKE - 47 | A/t brake (ALL (REDUCTION BRAKE)) |
| MD762016 | BAND, A/T BRAKE | A/t brake (ALL (REDUCTION BRAKE)) |
