DJ5A

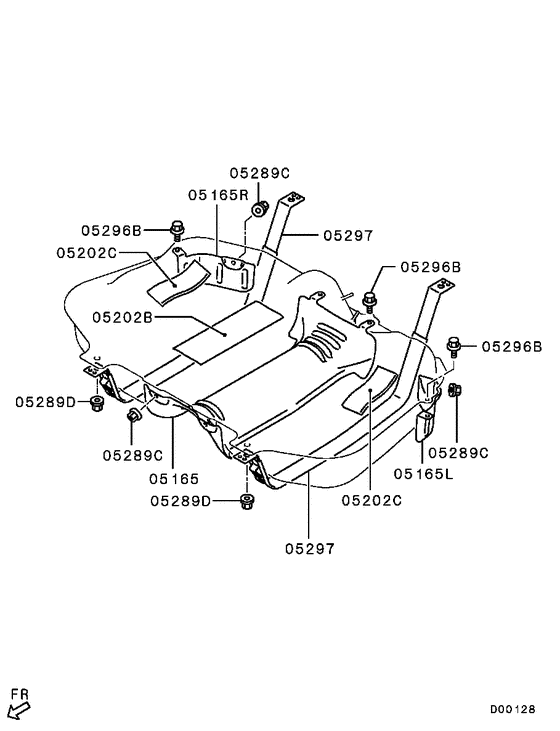

Fuel tank (PROTECTOR,PAD,BAND,ETC.) 9
| # | OEM | Part name |
|---|---|---|
| 5165 | MN120760 | PROTECTOR,FUEL TANK |
| 5165 | MN120761 | PROTECTOR,FUEL TANK,FR |
| 5165 | MN120762 | PROTECTOR,FUEL TANK,FR |
| 5202 | MN106138 | PAD,FUEL TANK PROTECTOR |
| 5202 | MN106139 | PAD,FUEL TANK PROTECTOR |
| 5289 | MF434104 | NUT, ROCKER COVER - Flange,8 |
| 5289 | MS440504 | NUT - Washer assembled,10 |
| 5296 | MF140021 | BOLT, ACCEL CABLE SUPPORT - Flange,8x12 |
| 5297 | MR556468 | BAND,FUEL TANK |
| OEM | Part name | Category |
|---|---|---|
| MF140021 | BOLT, ACCEL CABLE SUPPORT - Flange,8x12 | Fuel tank (PROTECTOR,PAD,BAND,ETC.) |
| MF434104 | NUT, ROCKER COVER - Flange,8 | Fuel tank (PROTECTOR,PAD,BAND,ETC.) |
| MN106138 | PAD,FUEL TANK PROTECTOR | Fuel tank (PROTECTOR,PAD,BAND,ETC.) |
| MN106139 | PAD,FUEL TANK PROTECTOR | Fuel tank (PROTECTOR,PAD,BAND,ETC.) |
| MN120760 | PROTECTOR,FUEL TANK | Fuel tank (PROTECTOR,PAD,BAND,ETC.) |
| MN120761 | PROTECTOR,FUEL TANK,FR | Fuel tank (PROTECTOR,PAD,BAND,ETC.) |
| MN120762 | PROTECTOR,FUEL TANK,FR | Fuel tank (PROTECTOR,PAD,BAND,ETC.) |
| MR556468 | BAND,FUEL TANK | Fuel tank (PROTECTOR,PAD,BAND,ETC.) |
| MS440504 | NUT - Washer assembled,10 | Fuel tank (PROTECTOR,PAD,BAND,ETC.) |
