DJ3A

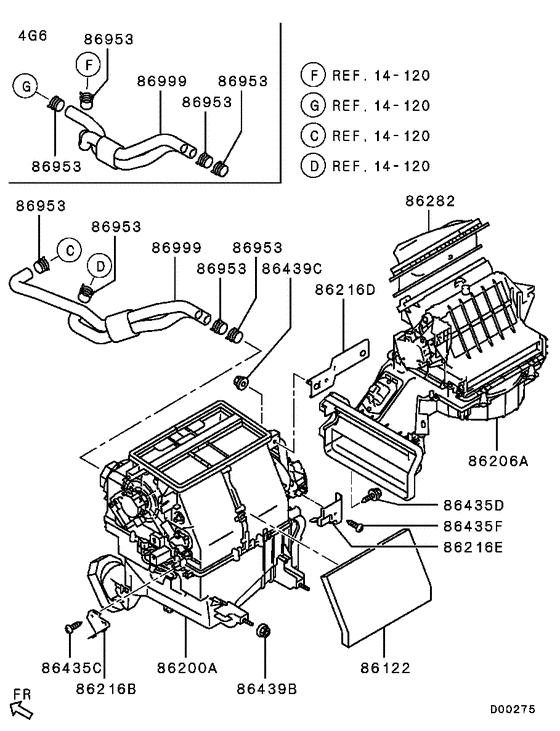

Heater unit & piping (INSTALLING PARTS) 11
| # | OEM | Part name |
|---|---|---|
| 86216 | MR960752 | BRACKET,HEATER |
| 86216 | MR958192 | BRACKET,HEATER |
| 86216 | MR568129 | BRACKET,HEATER |
| 86282 | MR958327 | DUCT,HEATER AIR INTAKE |
| 86435 | MF453017 | SCREW - Tapping,4x12 |
| 86435 | MR568112 | SCREW,HEATER |
| 86435 | MB899699 | SCREW, A/C - 4x16 |
| 86439 | MS440522 | NUT, FUEL TANK - Washer assembled,6 |
| 86439 | MZ701437 | NUT,HEATER |
| 86953 | MU470040 | CLAMP, HEATER PIPING - 21.7 |
| 86999 | MR958332 | HOSE,HEATER PIPING |
| OEM | Part name | Category |
|---|---|---|
| MB899699 | SCREW, A/C - 4x16 | Heater unit & piping (INSTALLING PARTS) |
| MF453017 | SCREW - Tapping,4x12 | Heater unit & piping (INSTALLING PARTS) |
| MR568112 | SCREW,HEATER | Heater unit & piping (INSTALLING PARTS) |
| MR568129 | BRACKET,HEATER | Heater unit & piping (INSTALLING PARTS) |
| MR958192 | BRACKET,HEATER | Heater unit & piping (INSTALLING PARTS) |
| MR958327 | DUCT,HEATER AIR INTAKE | Heater unit & piping (INSTALLING PARTS) |
| MR958332 | HOSE,HEATER PIPING | Heater unit & piping (INSTALLING PARTS) |
| MR960752 | BRACKET,HEATER | Heater unit & piping (INSTALLING PARTS) |
| MS440522 | NUT, FUEL TANK - Washer assembled,6 | Heater unit & piping (INSTALLING PARTS) |
| MU470040 | CLAMP, HEATER PIPING - 21.7 | Heater unit & piping (INSTALLING PARTS) |
| MZ701437 | NUT,HEATER | Heater unit & piping (INSTALLING PARTS) |
