DJ3A

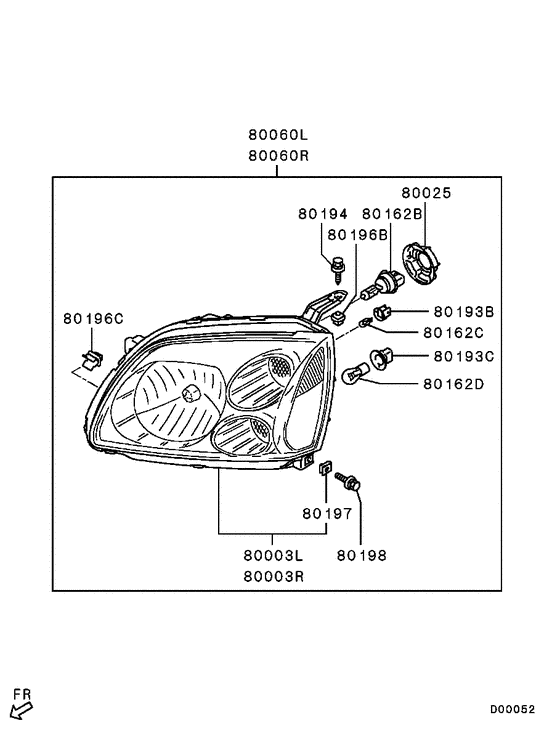

Headlamp (ALL) 11
| # | OEM | Part name |
|---|---|---|
| 80025 | MN126661 | COVER,HEADLAMP BULB SOCKET |
| 80162 | MS820973 | BULB,HEADLAMP - HALOGEN |
| 80162 | MS820077 | BULB, FR LAMP - 12v-5w |
| 80162 | MS820037 | BULB,FR TURN SIGNAL LAMP |
| 80193 | MU805833 | SOCKET, HEADLAMP |
| 80193 | MU805820 | SOCKET, FR LAMP |
| 80194 | MS452393 | SCREW, OVERFENDER - Washer assembled,6x20 |
| 80196 | MR393386 | GROMMET, FR BUMPER - 6 |
| 80196 | MR361004 | GROMMET, HEADLAMP |
| 80198 | MS240142 | BOLT, FUEL TANK - Washer assembled,6x20 |
| 80198 | MS240156 | BOLT - Washer assembled,6x20 |
| OEM | Part name | Category |
|---|---|---|
| MN126661 | COVER,HEADLAMP BULB SOCKET | Headlamp (ALL) |
| MR361004 | GROMMET, HEADLAMP | Headlamp (ALL) |
| MR393386 | GROMMET, FR BUMPER - 6 | Headlamp (ALL) |
| MS240142 | BOLT, FUEL TANK - Washer assembled,6x20 | Headlamp (ALL) |
| MS240156 | BOLT - Washer assembled,6x20 | Headlamp (ALL) |
| MS452393 | SCREW, OVERFENDER - Washer assembled,6x20 | Headlamp (ALL) |
| MS820037 | BULB,FR TURN SIGNAL LAMP | Headlamp (ALL) |
| MS820077 | BULB, FR LAMP - 12v-5w | Headlamp (ALL) |
| MS820973 | BULB,HEADLAMP - HALOGEN | Headlamp (ALL) |
| MU805820 | SOCKET, FR LAMP | Headlamp (ALL) |
| MU805833 | SOCKET, HEADLAMP | Headlamp (ALL) |
