Search › Model › DJ3A
DJ3A

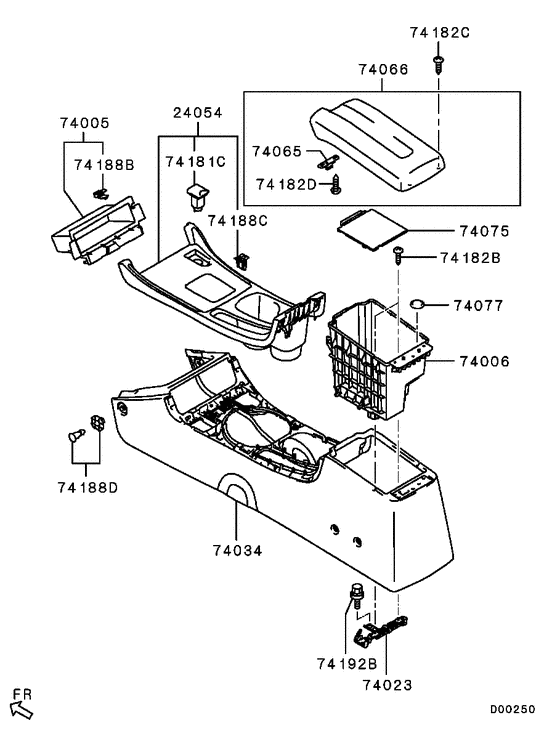

Console (0712.1-) 12
| # | OEM | Part name |
|---|---|---|
| 74006 | MR590254 | BOX,FLOOR CONSOLE,INR |
| 74023 | MR590258 | BRACKET,FLOOR CONSOLE,RR |
| 74065 | MR590270 | LEVER,FLOOR CONSOLE LID LOCK |
| 74075 | MR590259 | PLATE,FLOOR CONSOLE |
| 74077 | MR330151 | CAP, RR SHELF TRIM |
| 74181 | MR975283 | SOCKET,ACCESSORY |
| 74182 | MF453033 | SCREW, TAPPING, 5x16 - Tapping,5x16 |
| 74182 | MF453093 | SCREW, FUEL FILLER LID LOCKING - Tapping,5x16 |
| 74182 | MF453094 | SCREW, STEERING COLUMN COVER - Tapping,5x20 |
| 74188 | MR402859 | CLIP, FLOOR CONSOLE |
| 74188 | MR328954 | CLIP, SPLASH SHIELD - 8x22 |
| 74192 | MS240121 | BOLT, CONNROD - Washer assembled,6x16 |
| OEM | Part name | Category |
|---|---|---|
| MF453033 | SCREW, TAPPING, 5x16 - Tapping,5x16 | Console (0712.1-) |
| MF453093 | SCREW, FUEL FILLER LID LOCKING - Tapping,5x16 | Console (0712.1-) |
| MF453094 | SCREW, STEERING COLUMN COVER - Tapping,5x20 | Console (0712.1-) |
| MR328954 | CLIP, SPLASH SHIELD - 8x22 | Console (0712.1-) |
| MR330151 | CAP, RR SHELF TRIM | Console (0712.1-) |
| MR402859 | CLIP, FLOOR CONSOLE | Console (0712.1-) |
| MR590254 | BOX,FLOOR CONSOLE,INR | Console (0712.1-) |
| MR590258 | BRACKET,FLOOR CONSOLE,RR | Console (0712.1-) |
| MR590259 | PLATE,FLOOR CONSOLE | Console (0712.1-) |
| MR590270 | LEVER,FLOOR CONSOLE LID LOCK | Console (0712.1-) |
| MR975283 | SOCKET,ACCESSORY | Console (0712.1-) |
| MS240121 | BOLT, CONNROD - Washer assembled,6x16 | Console (0712.1-) |
