Search › Model › DJ3A
DJ3A

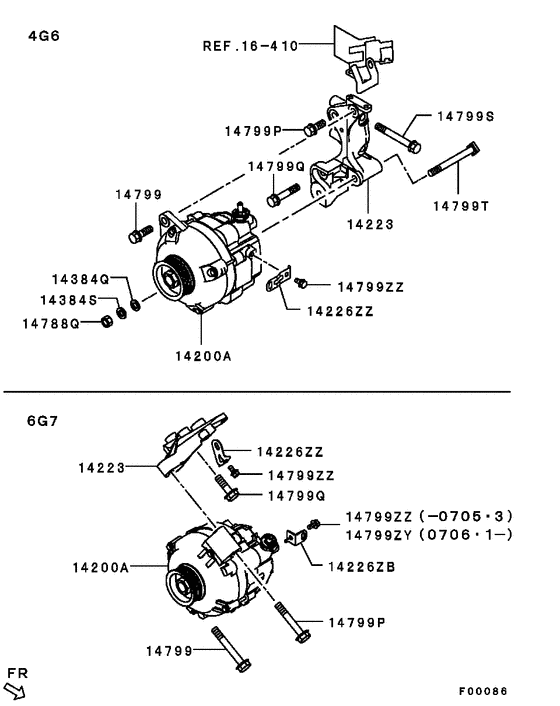

Alternator & vacuum pump 10
| # | OEM | Part name |
|---|---|---|
| 14200 | MN176256 | ALTERNATOR ASSY |
| 14200 | MR984944 | ALTERNATOR ASSY |
| 14223 | MD375319 | BRACKET,ALTERNATOR MOUNTING |
| 14226 | MD349280 | BRACKET, IGNITION COIL |
| 14226 | MR988134 | BRACKET,ALTERNATOR HARNESS |
| 14799 | MF140273 | BOLT, ENG SUPPORT ROD - Flange,10x75 |
| 14799 | MF140271 | BOLT, STARTER - Flange,10x65 |
| 14799 | MF140264 | BOLT, ENG RR PLATE - Flange,10x35 |
| 14799 | MF140203 | BOLT, ACCEL CABLE SUPPORT - Flange,6x12 |
| 14799 | MF151004 | BOLT,ALTERNATOR |
| OEM | Part name | Category |
|---|---|---|
| MD349280 | BRACKET, IGNITION COIL | Alternator & vacuum pump |
| MD375319 | BRACKET,ALTERNATOR MOUNTING | Alternator & vacuum pump |
| MF140203 | BOLT, ACCEL CABLE SUPPORT - Flange,6x12 | Alternator & vacuum pump |
| MF140264 | BOLT, ENG RR PLATE - Flange,10x35 | Alternator & vacuum pump |
| MF140271 | BOLT, STARTER - Flange,10x65 | Alternator & vacuum pump |
| MF140273 | BOLT, ENG SUPPORT ROD - Flange,10x75 | Alternator & vacuum pump |
| MF151004 | BOLT,ALTERNATOR | Alternator & vacuum pump |
| MN176256 | ALTERNATOR ASSY | Alternator & vacuum pump |
| MR984944 | ALTERNATOR ASSY | Alternator & vacuum pump |
| MR988134 | BRACKET,ALTERNATOR HARNESS | Alternator & vacuum pump |
