| 09140-10019-000 |
NUT |

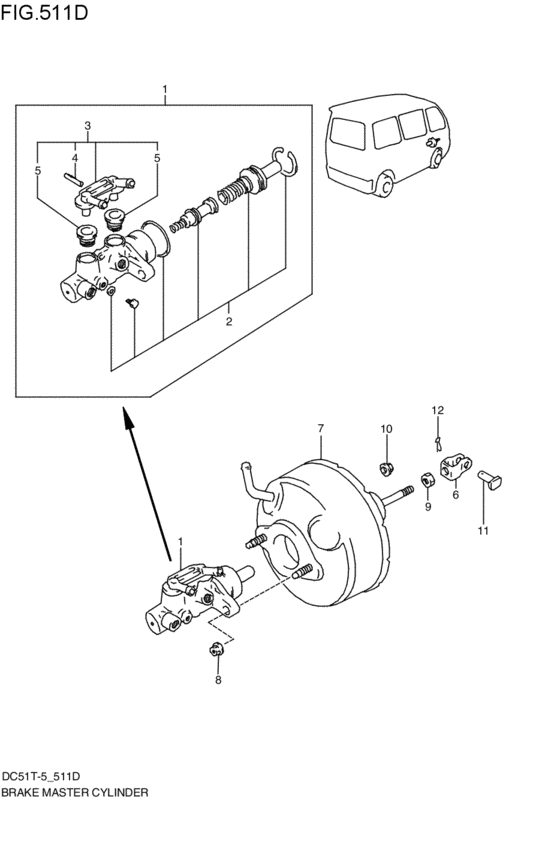

brakes master cylinder (1997-04-01~1998-11-01) |
| 09159-08069-000 |
Nut |
brakes master cylinder (1997-04-01~1998-11-01) |
| 09159-08075-000 |
NUT |
brakes master cylinder (1997-04-01~1998-11-01) |
| 09159-08135-000 |
NUT |
brakes master cylinder (1997-04-01~1998-11-01) |
| 09200-10021-000 |
PIN |
brakes master cylinder (1997-04-01~1998-11-01) |
| 09205-05016-000 |
PIN,SPRING(5X32) |
brakes master cylinder (1997-04-01~1998-11-01) |
| 09385-10006-000 |
PIN,SNAP |
brakes master cylinder (1997-04-01~1998-11-01) |
| 51100-50F00-000 |
Cylinder assy,brake master |
brakes master cylinder (1997-04-01~1998-11-01) |
| 51100-50F01-000 |
CYLINDER ASSY,BRAKE MASTER |
brakes master cylinder (1997-04-01~1998-11-01) |
| 51100-85871-000 |
Piston set,brake master |
brakes master cylinder (1997-04-01~1998-11-01) |
| 51100-85872-000 |
PISTON SET,BRAKE MASTER |
brakes master cylinder (1997-04-01~1998-11-01) |
| 51182-85520-000 |
CLEVIS,CYLINDER PUSH ROD |
brakes master cylinder (1997-04-01~1998-11-01) |
| 51190-50F00-000 |
UNION ASSY |
brakes master cylinder (1997-04-01~1998-11-01) |
| 51197-85520-000 |
GROMMET,RESERVOIR CONNECTOR |
brakes master cylinder (1997-04-01~1998-11-01) |
| 51300-50F50-000 |
BOOSTER ASSY,BRAKE MASTER |
brakes master cylinder (1997-04-01~1998-11-01) |
