Search › Model › DE3A
DE3A

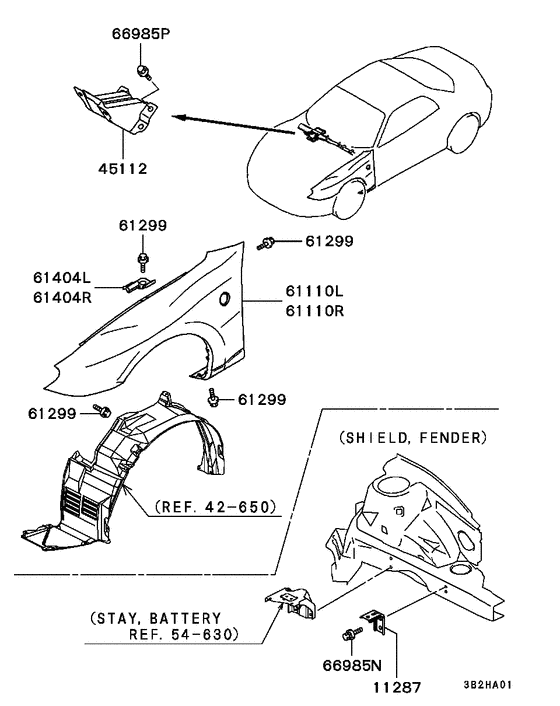

Fender & front end cover 11
| # | OEM | Part name |
|---|---|---|
| 11287 | MR179200 | BRACKET, AIR CLEANER |
| 45112 | MR178541 | BRACKET, STEERING COLUMN SUPPORT |
| 61110 | MR178535 | FENDER, FR LH |
| 61110 | MR178536 | FENDER, FR RH |
| 61110 | MR178533 | FENDER, FR LH |
| 61110 | MR178534 | FENDER, FR RH |
| 61299 | MS100221 | BOLT, RADIATOR SHROUD - Flange,6x12 |
| 61404 | MR179267 | BRACKET, HOOD DAMPER, LH |
| 61404 | MR179268 | BRACKET, HOOD DAMPER, RH |
| 66985 | MS240121 | BOLT, CONNROD - Washer assembled,6x16 |
| 66985 | MS240125 | BOLT, FUEL TANK - Washer assembled,8x20 |
| OEM | Part name | Category |
|---|---|---|
| MR178533 | FENDER, FR LH | Fender & front end cover |
| MR178534 | FENDER, FR RH | Fender & front end cover |
| MR178535 | FENDER, FR LH | Fender & front end cover |
| MR178536 | FENDER, FR RH | Fender & front end cover |
| MR178541 | BRACKET, STEERING COLUMN SUPPORT | Fender & front end cover |
| MR179200 | BRACKET, AIR CLEANER | Fender & front end cover |
| MR179267 | BRACKET, HOOD DAMPER, LH | Fender & front end cover |
| MR179268 | BRACKET, HOOD DAMPER, RH | Fender & front end cover |
| MS100221 | BOLT, RADIATOR SHROUD - Flange,6x12 | Fender & front end cover |
| MS240121 | BOLT, CONNROD - Washer assembled,6x16 | Fender & front end cover |
| MS240125 | BOLT, FUEL TANK - Washer assembled,8x20 | Fender & front end cover |
