Search › Model › DE2A
DE2A

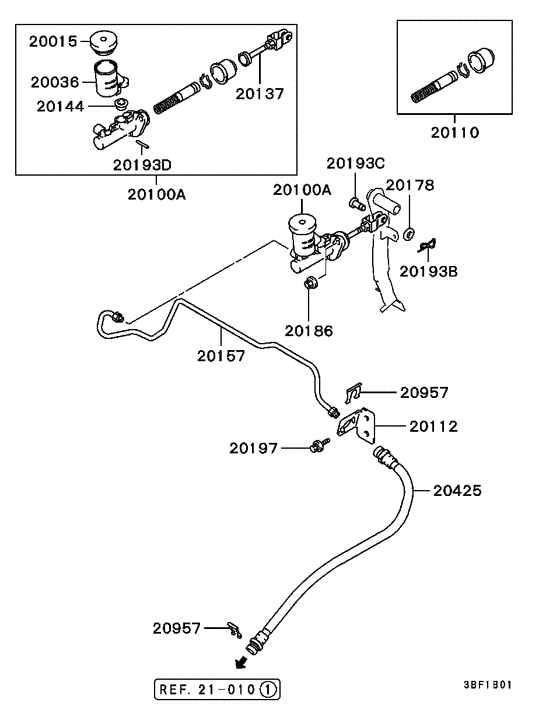

Clutch control (9509.1-) 21
| # | OEM | Part name |
|---|---|---|
| 20015 | MB555135 | CAP, CLUTCH FLUID RESERVOIR |
| 20036 | MA115416 | RESERVOIR, CLUTCH FLUID |
| 20036 | MR272776 | RESERVOIR, CLUTCH FLUID |
| 20100 | MR197825 | CYLINDER ASSY, CLUTCH MASTER |
| 20100 | MR244839 | CYLINDER ASSY, CLUTCH MASTER |
| 20110 | MR235341 | CYLINDER KIT, CLUTCH MASTER |
| 20110 | MR272770 | CYLINDER KIT, CLUTCH MASTER |
| 20112 | MR131333 | BRACKET, CLUTCH M/CYL TUBE |
| 20137 | MR235340 | PUSH ROD, CLUTCH M/CYL |
| 20144 | MB555016 | SEAL, CLUTCH M/CYL |
| 20144 | MR244929 | SEAL, CLUTCH M/CYL |
| 20157 | MR131330 | TUBE, CLUTCH M/CYL |
| 20178 | MB151106 | WASHER, CLUTCH M/CYL - 10 |
| 20186 | MS440503 | NUT - Washer assembled,8 |
| 20193 | MB858800 | PIN, BRAKE BOOSTER - Snap,10 |
| 20193 | MF473492 | PIN, CLUTCH M/CYL - Clevis,10x23 |
| 20193 | MR244930 | PIN, CLUTCH M/CYL |
| 20197 | MS240081 | BOLT, FUEL RETURN LINE - Washer assembled,6x16 |
| 20197 | MS240121 | BOLT, CONNROD - Washer assembled,6x16 |
| 20425 | MR197962 | HOSE, CLUTCH RELEASE CYLINDER - 435 |
| 20957 | MA431825 | CLIP, BRAKE FLUID LINE - 13 |
| OEM | Part name | Category |
|---|---|---|
| MA115416 | RESERVOIR, CLUTCH FLUID | Clutch control (9509.1-) |
| MA431825 | CLIP, BRAKE FLUID LINE - 13 | Clutch control (9509.1-) |
| MB151106 | WASHER, CLUTCH M/CYL - 10 | Clutch control (9509.1-) |
| MB555016 | SEAL, CLUTCH M/CYL | Clutch control (9509.1-) |
| MB555135 | CAP, CLUTCH FLUID RESERVOIR | Clutch control (9509.1-) |
| MB858800 | PIN, BRAKE BOOSTER - Snap,10 | Clutch control (9509.1-) |
| MF473492 | PIN, CLUTCH M/CYL - Clevis,10x23 | Clutch control (9509.1-) |
| MR131330 | TUBE, CLUTCH M/CYL | Clutch control (9509.1-) |
| MR131333 | BRACKET, CLUTCH M/CYL TUBE | Clutch control (9509.1-) |
| MR197825 | CYLINDER ASSY, CLUTCH MASTER | Clutch control (9509.1-) |
| MR197962 | HOSE, CLUTCH RELEASE CYLINDER - 435 | Clutch control (9509.1-) |
| MR235340 | PUSH ROD, CLUTCH M/CYL | Clutch control (9509.1-) |
| MR235341 | CYLINDER KIT, CLUTCH MASTER | Clutch control (9509.1-) |
| MR244839 | CYLINDER ASSY, CLUTCH MASTER | Clutch control (9509.1-) |
| MR244929 | SEAL, CLUTCH M/CYL | Clutch control (9509.1-) |
| MR244930 | PIN, CLUTCH M/CYL | Clutch control (9509.1-) |
| MR272770 | CYLINDER KIT, CLUTCH MASTER | Clutch control (9509.1-) |
| MR272776 | RESERVOIR, CLUTCH FLUID | Clutch control (9509.1-) |
| MS240081 | BOLT, FUEL RETURN LINE - Washer assembled,6x16 | Clutch control (9509.1-) |
| MS240121 | BOLT, CONNROD - Washer assembled,6x16 | Clutch control (9509.1-) |
| MS440503 | NUT - Washer assembled,8 | Clutch control (9509.1-) |
