| 03111-06123-000 |
スクリュ |

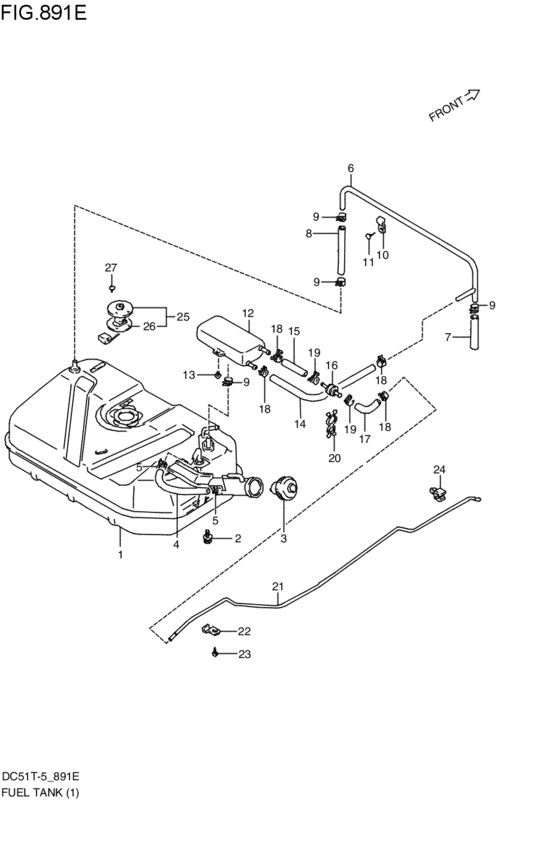

fuel tank (C; 1997-04-01~1998-11-01) |
| 03111-0612A-000 |
SCREW |
fuel tank (C; 1997-04-01~1998-11-01) |
| 03141-06163-000 |
Screw 6x16 |
fuel tank (C; 1997-04-01~1998-11-01) |
| 03141-0616A-000 |
SCREW |
fuel tank (C; 1997-04-01~1998-11-01) |
| 09118-08151-000 |
Bolt (8x25) |
fuel tank (C; 1997-04-01~1998-11-01) |
| 09118-08151-XC0 |
BOLT(8X25) |
fuel tank (C; 1997-04-01~1998-11-01) |
| 09136-05045-000 |
SCREW(5X10) |
fuel tank (C; 1997-04-01~1998-11-01) |
| 09355-54115-600 |
HOSE(5.4X11.4X600) - Hose, vacuum |
fuel tank (C; 1997-04-01~1998-11-01) |
| 09401-11412-000 |
CLIP |
fuel tank (C; 1997-04-01~1998-11-01) |
| 09401-11413-000 |
CLIP |
fuel tank (C; 1997-04-01~1998-11-01) |
| 09401-18406-000 |
CLIP |
fuel tank (C; 1997-04-01~1998-11-01) |
| 09403-05302-000 |
CLAMP |
fuel tank (C; 1997-04-01~1998-11-01) |
| 09403-06317-000 |
CLAMP |
fuel tank (C; 1997-04-01~1998-11-01) |
| 09408-00023-000 |
CLIP |
fuel tank (C; 1997-04-01~1998-11-01) |
| 34810-79002-000 |
GAUGE ASSY,FUEL LEVEL |
fuel tank (C; 1997-04-01~1998-11-01) |
| 34825-67012-000 |
GASKET |
fuel tank (C; 1997-04-01~1998-11-01) |
| 85451-75100-000 |
VALVE,2WAY CHECK - Valve, check |
fuel tank (C; 1997-04-01~1998-11-01) |
| 89101-51FF0-000 |
TANK ASSY,FUEL |
fuel tank (C; 1997-04-01~1998-11-01) |
| 89250-52F00-000 |
HOSE,FUEL TANK BREATHER |
fuel tank (C; 1997-04-01~1998-11-01) |
| 89260-50C00-000 |
CAP ASSY,FUEL FILLER |
fuel tank (C; 1997-04-01~1998-11-01) |
| 89411-60C00-000 |
SEPARATOR,FUEL AND VAPOR |
fuel tank (C; 1997-04-01~1998-11-01) |
| 89430-51F00-000 |
パイプ,タンクエバポレータ,NO.1 |
fuel tank (C; 1997-04-01~1998-11-01) |
| 89461-50F00-000 |
PIPE,EVAPORATOR MAIN |
fuel tank (C; 1997-04-01~1998-11-01) |
