Search › Model › DC51T
DC51T

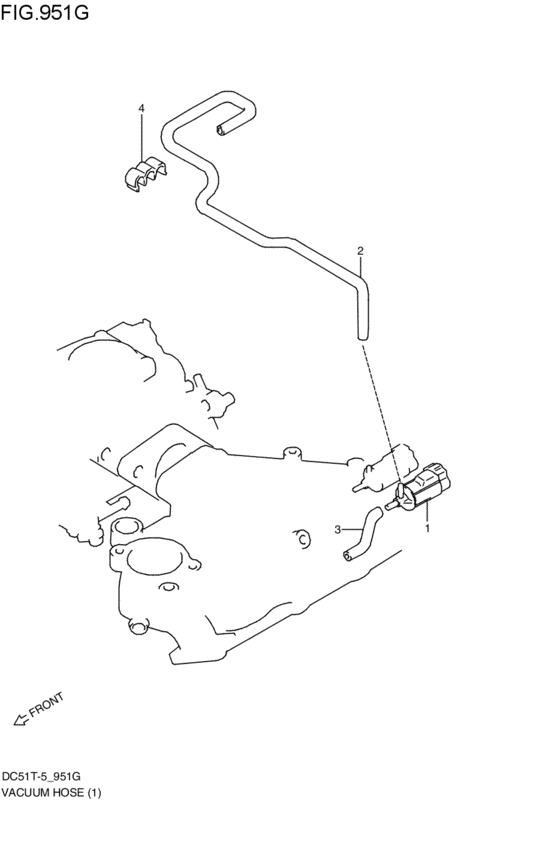

vacuum hose (エアコンシヨウ; C:KU; 1997-04-01~1998-11-01) 4
| # | OEM | Part name |
|---|---|---|
| 1 | 95160-70B00-000 | VSV,IDLE UP |
| 2 | 09355-35754-601 | HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve) |
| 2 | 09355-35006-601 | Hose(3.5X7.5X601) |
| 4 | 09408-00033-000 | CLAMP |
| OEM | Part name | Category |
|---|---|---|
| 09355-35006-601 | Hose(3.5X7.5X601) | vacuum hose (エアコンシヨウ; C:KU; 1997-04-01~1998-11-01) |
| 09355-35754-601 | HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve) | vacuum hose (エアコンシヨウ; C:KU; 1997-04-01~1998-11-01) |
| 09408-00033-000 | CLAMP | vacuum hose (エアコンシヨウ; C:KU; 1997-04-01~1998-11-01) |
| 95160-70B00-000 | VSV,IDLE UP | vacuum hose (エアコンシヨウ; C:KU; 1997-04-01~1998-11-01) |
