Search › Model › DC51T
DC51T

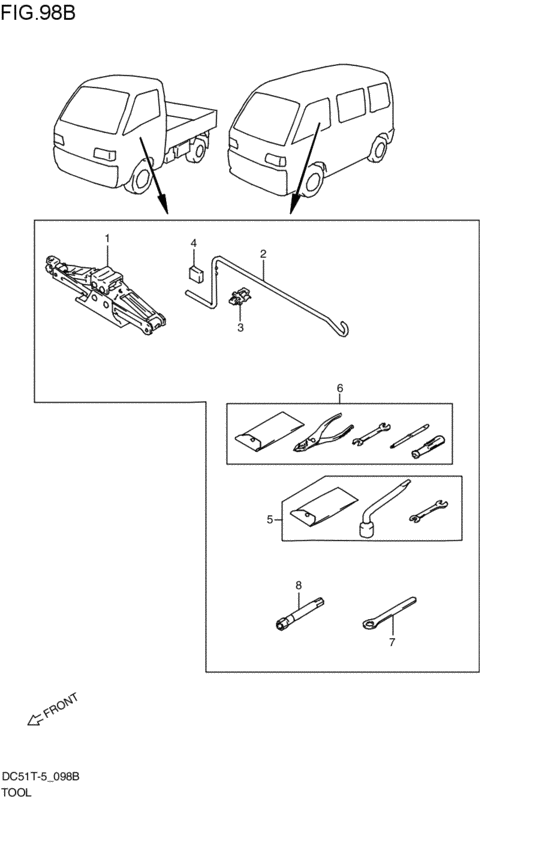

tool (1997-04-01~1998-11-01) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 89913-50F00-000 | JACK |
| 2 | 09824-00017-000 | HANDLE,JACK |
| 3 | 09403-08321-000 | CLAMP |
| 5 | 09800-40029-000 | TOOL ASSY - Wheel wrench: #19, spanner 12x14 |
| 6 | 09800-40030-000 | TOOL ASSY |
| 7 | 09817-00046-000 | SPANNER,RING(17) |
| 8 | 09816-00141-000 | BOX,SPANNER(16) |
| 8 | 09816-00160-000 | BOX,SPANNER(21) |
| OEM | Part name | Category |
|---|---|---|
| 09403-08321-000 | CLAMP | tool (1997-04-01~1998-11-01) |
| 09800-40029-000 | TOOL ASSY - Wheel wrench: #19, spanner 12x14 | tool (1997-04-01~1998-11-01) |
| 09800-40030-000 | TOOL ASSY | tool (1997-04-01~1998-11-01) |
| 09816-00141-000 | BOX,SPANNER(16) | tool (1997-04-01~1998-11-01) |
| 09816-00160-000 | BOX,SPANNER(21) | tool (1997-04-01~1998-11-01) |
| 09817-00046-000 | SPANNER,RING(17) | tool (1997-04-01~1998-11-01) |
| 09824-00017-000 | HANDLE,JACK | tool (1997-04-01~1998-11-01) |
| 89913-50F00-000 | JACK | tool (1997-04-01~1998-11-01) |
