DC2

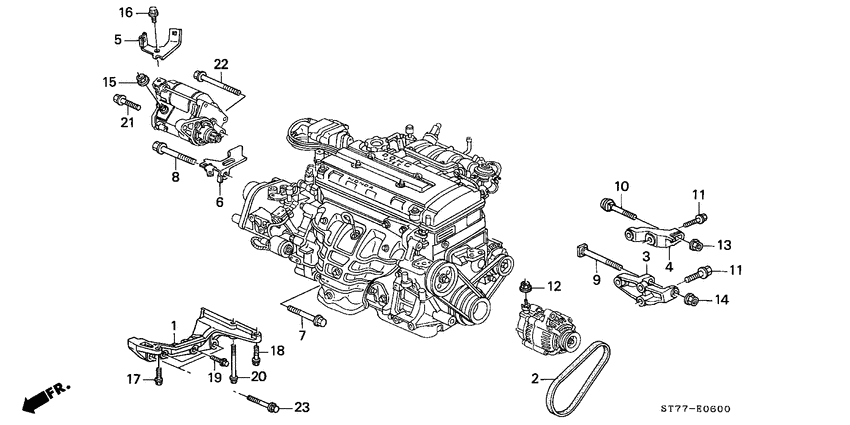

Alternator bracket 12
| # | OEM | Part name |
|---|---|---|
| 1 | 11950-P73-J00 | Stiffener - ENGINE |
| 2 | 31110-P73-A01 | Belt - ALTERNATOR (MITSUBOSHI) |
| 2 | 31110-P73-508 | Belt |
| 3 | 31112-P2T-000 | Bracket comp. a - ALTERNATOR |
| 4 | 31113-P2T-000 | Bracket b - ALTERNATOR |
| 5 | 32746-P72-A00 | Stay f - ENGINE HARNESS |
| 6 | 32752-P01-000 | Stay b - ENGINE WIRE HARNESS |
| 7 | 90050-PG7-000 | Bolt - FLANGE, 12X65 |
| 8 | 90051-PE0-000 | Bolt - FLANGE, 12X70 |
| 9 | 90057-PG7-003 | Bolt - ALTERNATOR |
| 10 | 90058-P72-000 | Bolt - ALTERNATOR UPPER |
| 11 | 90059-PR3-000 | Bolt - KNOCK, 10X35 |
| OEM | Part name | Category |
|---|---|---|
| 11950-P73-J00 | Stiffener - ENGINE | Alternator bracket |
| 31110-P73-508 | Belt | Alternator bracket |
| 31110-P73-A01 | Belt - ALTERNATOR (MITSUBOSHI) | Alternator bracket |
| 31112-P2T-000 | Bracket comp. a - ALTERNATOR | Alternator bracket |
| 31113-P2T-000 | Bracket b - ALTERNATOR | Alternator bracket |
| 32746-P72-A00 | Stay f - ENGINE HARNESS | Alternator bracket |
| 32752-P01-000 | Stay b - ENGINE WIRE HARNESS | Alternator bracket |
| 90050-PG7-000 | Bolt - FLANGE, 12X65 | Alternator bracket |
| 90051-PE0-000 | Bolt - FLANGE, 12X70 | Alternator bracket |
| 90057-PG7-003 | Bolt - ALTERNATOR | Alternator bracket |
| 90058-P72-000 | Bolt - ALTERNATOR UPPER | Alternator bracket |
| 90059-PR3-000 | Bolt - KNOCK, 10X35 | Alternator bracket |
