DB71V

Suzuki CARRY-EVERY · 1985 · 3,317 parts · 119 categories

3,317 items

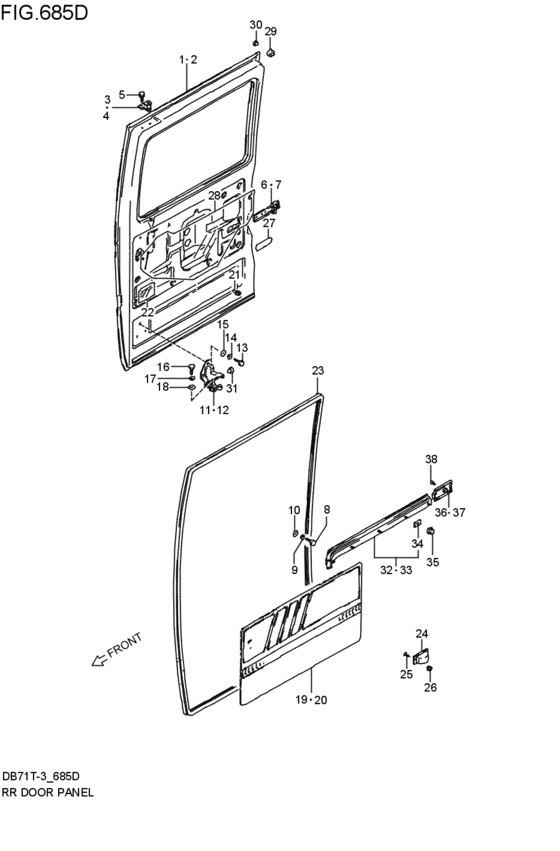

rear door panel (V; 1987-08-01~1989-04-01) 61

#	OEM	Part name
1	68500-85500-000	パネルアッシ,リヤドア,ライト
1	68500-75D00-000	PANEL ASSY,REAR DOOR,R
1	68500-85560-000	パネルアッシ,リヤドア,ライト
2	68700-85500-000	パネルアッシ,リヤドア,レフト
2	68700-75D00-000	PANEL ASSY,REAR DOOR,L
2	68700-85560-000	パネルアッシ,リヤドア,レフト
2	68700-75D60-000	パネルアッシ,リヤドア,レフト
3	84120-85500-000	アームアッシ,リヤドアアッパ,ライト
3	84120-85501-000	ARM ASSY,RR DR UPR,R
4	84220-85500-000	アームアッシ,リヤドアアッパ,レフト
4	84220-85501-000	ARM ASSY,RR DR UPR,L
5	01517-08166-000	Bolt 8x16
5	01550-0816B-000	Bolt
6	84110-85510-000	Hinge assy,slide
6	84110-85511-000	HINGE ASSY,SLIDE
7	84210-85510-000	Hinge assy,slide
7	84210-85511-000	HINGE ASSY,SLIDE
8	01107-08206-000	Bolt
8	01500-0820A-000	Bolt
9	08321-21086-000	Wsherlck8.2x15.2x1.6
9	08321-0108B-000	WASHER,LOCK
9	08321-0108A-000	WASHER,LOCK
10	08322-21086-000	Washer 8mm
10	08322-0108B-000	WASHER
10	08322-0108A-000	WASHER
11	84130-85500-000	Arm assy,rear door lower,r
11	84130-85510-000	ARM ASSY,RR DR LWR,R
12	84230-85500-000	Arm assy,rear door lower,l
12	84230-85510-000	ARM ASSY,RR DR LWR,L
15	08322-11086-000	Washer
19	76110-85520-2BM	トリム,リヤドア,ライト(ブラック)
20	76160-85520-2BM	トリム,リヤドア,レフト(ブラック)
21	09409-08309-000	CLIP
21	09409-08320-000	CLIP
22	76182-85710-000	フィルム,リヤドアウォータプルーフ
22	83911-60X52-000	COVER,DR SEALING
23	84661-85500-000	REAR DOOR RUBBER MOLDING
23	84661-85510-000	WEATHERSTRIP,RR DR OPNG
24	86370-58140-5PK	ASH TRAY RR
24	86370-58141-5PK	ASHTRAY,RR DR
25	02122-04128-000	Screw
25	02122-0412B-000	SCREW
25	02122-0412A-000	SCREW - Screw, cap
26	08316-26046-000	Nut 4mm
26	08316-2004A-000	NUT
27	76185-85500-000	プルーフ,リヤドアセンタヒンジウォータ
27	84761-50X50-000	SEAL,140X190 - Seal, rr defogger wire hole
28	76181-85710-000	フィルム,リヤドアダストシール
29	09321-05021-000	CUSHION
30	09321-06011-000	CUSHION
31	84139-85500-000	CUSHION,LOWER ARM STOP
32	84150-85502-000	RAIL,RR DOOR CTR GUIDE,R
33	84250-85502-000	RAIL,RR DOOR CTR GUIDE,L
34	84156-85500-000	PACKING,CTR RAIL
35	08316-26066-000	Nut 6mm
35	08316-2006A-000	NUT
35	08316-1006B-000	NUT
36	77311-85500-5PK	GARNISH,OTR,R
37	77361-85500-5PK	GARNISH,OTR,L
38	03141-04165-000	Vis
38	03141-0416A-000	SCREW

OEM	Part name	Category
01107-08206-000	Bolt	rear door panel (V; 1987-08-01~1989-04-01)
01500-0820A-000	Bolt	rear door panel (V; 1987-08-01~1989-04-01)
01517-08166-000	Bolt 8x16	rear door panel (V; 1987-08-01~1989-04-01)
01550-0816B-000	Bolt	rear door panel (V; 1987-08-01~1989-04-01)
02122-04128-000	Screw	rear door panel (V; 1987-08-01~1989-04-01)
02122-0412A-000	SCREW - Screw, cap	rear door panel (V; 1987-08-01~1989-04-01)
02122-0412B-000	SCREW	rear door panel (V; 1987-08-01~1989-04-01)
03141-04165-000	Vis	rear door panel (V; 1987-08-01~1989-04-01)
03141-0416A-000	SCREW	rear door panel (V; 1987-08-01~1989-04-01)
08316-1006B-000	NUT	rear door panel (V; 1987-08-01~1989-04-01)
08316-2004A-000	NUT	rear door panel (V; 1987-08-01~1989-04-01)
08316-2006A-000	NUT	rear door panel (V; 1987-08-01~1989-04-01)
08316-26046-000	Nut 4mm	rear door panel (V; 1987-08-01~1989-04-01)
08316-26066-000	Nut 6mm	rear door panel (V; 1987-08-01~1989-04-01)
08321-0108A-000	WASHER,LOCK	rear door panel (V; 1987-08-01~1989-04-01)
08321-0108B-000	WASHER,LOCK	rear door panel (V; 1987-08-01~1989-04-01)
08321-21086-000	Wsherlck8.2x15.2x1.6	rear door panel (V; 1987-08-01~1989-04-01)
08322-0108A-000	WASHER	rear door panel (V; 1987-08-01~1989-04-01)
08322-0108B-000	WASHER	rear door panel (V; 1987-08-01~1989-04-01)
08322-11086-000	Washer	rear door panel (V; 1987-08-01~1989-04-01)
08322-21086-000	Washer 8mm	rear door panel (V; 1987-08-01~1989-04-01)
09321-05021-000	CUSHION	rear door panel (V; 1987-08-01~1989-04-01)
09321-06011-000	CUSHION	rear door panel (V; 1987-08-01~1989-04-01)
09409-08309-000	CLIP	rear door panel (V; 1987-08-01~1989-04-01)
09409-08320-000	CLIP	rear door panel (V; 1987-08-01~1989-04-01)
68500-75D00-000	PANEL ASSY,REAR DOOR,R	rear door panel (V; 1987-08-01~1989-04-01)
68500-85500-000	パネルアッシ,リヤドア,ライト	rear door panel (V; 1987-08-01~1989-04-01)
68500-85560-000	パネルアッシ,リヤドア,ライト	rear door panel (V; 1987-08-01~1989-04-01)
68700-75D00-000	PANEL ASSY,REAR DOOR,L	rear door panel (V; 1987-08-01~1989-04-01)
68700-75D60-000	パネルアッシ,リヤドア,レフト	rear door panel (V; 1987-08-01~1989-04-01)
68700-85500-000	パネルアッシ,リヤドア,レフト	rear door panel (V; 1987-08-01~1989-04-01)
68700-85560-000	パネルアッシ,リヤドア,レフト	rear door panel (V; 1987-08-01~1989-04-01)
76110-85520-2BM	トリム,リヤドア,ライト(ブラック)	rear door panel (V; 1987-08-01~1989-04-01)
76160-85520-2BM	トリム,リヤドア,レフト(ブラック)	rear door panel (V; 1987-08-01~1989-04-01)
76181-85710-000	フィルム,リヤドアダストシール	rear door panel (V; 1987-08-01~1989-04-01)
76182-85710-000	フィルム,リヤドアウォータプルーフ	rear door panel (V; 1987-08-01~1989-04-01)
76185-85500-000	プルーフ,リヤドアセンタヒンジウォータ	rear door panel (V; 1987-08-01~1989-04-01)
77311-85500-5PK	GARNISH,OTR,R	rear door panel (V; 1987-08-01~1989-04-01)
77361-85500-5PK	GARNISH,OTR,L	rear door panel (V; 1987-08-01~1989-04-01)
83911-60X52-000	COVER,DR SEALING	rear door panel (V; 1987-08-01~1989-04-01)
84110-85510-000	Hinge assy,slide	rear door panel (V; 1987-08-01~1989-04-01)
84110-85511-000	HINGE ASSY,SLIDE	rear door panel (V; 1987-08-01~1989-04-01)
84120-85500-000	アームアッシ,リヤドアアッパ,ライト	rear door panel (V; 1987-08-01~1989-04-01)
84120-85501-000	ARM ASSY,RR DR UPR,R	rear door panel (V; 1987-08-01~1989-04-01)
84130-85500-000	Arm assy,rear door lower,r	rear door panel (V; 1987-08-01~1989-04-01)
84130-85510-000	ARM ASSY,RR DR LWR,R	rear door panel (V; 1987-08-01~1989-04-01)
84139-85500-000	CUSHION,LOWER ARM STOP	rear door panel (V; 1987-08-01~1989-04-01)
84150-85502-000	RAIL,RR DOOR CTR GUIDE,R	rear door panel (V; 1987-08-01~1989-04-01)
84156-85500-000	PACKING,CTR RAIL	rear door panel (V; 1987-08-01~1989-04-01)
84210-85510-000	Hinge assy,slide	rear door panel (V; 1987-08-01~1989-04-01)
84210-85511-000	HINGE ASSY,SLIDE	rear door panel (V; 1987-08-01~1989-04-01)
84220-85500-000	アームアッシ,リヤドアアッパ,レフト	rear door panel (V; 1987-08-01~1989-04-01)
84220-85501-000	ARM ASSY,RR DR UPR,L	rear door panel (V; 1987-08-01~1989-04-01)
84230-85500-000	Arm assy,rear door lower,l	rear door panel (V; 1987-08-01~1989-04-01)
84230-85510-000	ARM ASSY,RR DR LWR,L	rear door panel (V; 1987-08-01~1989-04-01)
84250-85502-000	RAIL,RR DOOR CTR GUIDE,L	rear door panel (V; 1987-08-01~1989-04-01)
84661-85500-000	REAR DOOR RUBBER MOLDING	rear door panel (V; 1987-08-01~1989-04-01)
84661-85510-000	WEATHERSTRIP,RR DR OPNG	rear door panel (V; 1987-08-01~1989-04-01)
84761-50X50-000	SEAL,140X190 - Seal, rr defogger wire hole	rear door panel (V; 1987-08-01~1989-04-01)
86370-58140-5PK	ASH TRAY RR	rear door panel (V; 1987-08-01~1989-04-01)
86370-58141-5PK	ASHTRAY,RR DR	rear door panel (V; 1987-08-01~1989-04-01)
