| 01107-08163-000 |
Bolt m8x1.25x16 |

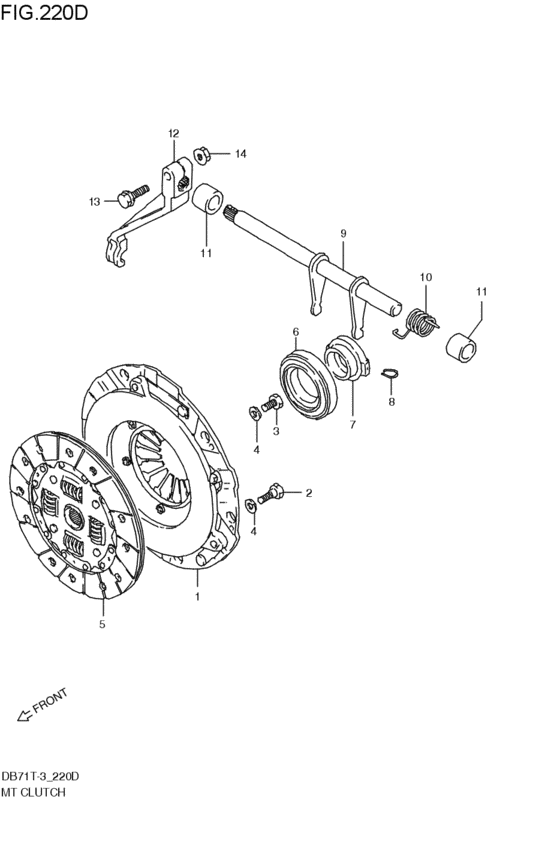

mt - clutch (1987-08-01~1989-04-01) |
| 01500-08163-000 |
Bolt |
mt - clutch (1987-08-01~1989-04-01) |
| 01500-0816B-000 |
Bolt |
mt - clutch (1987-08-01~1989-04-01) |
| 01517-08353-000 |
Bolt |
mt - clutch (1987-08-01~1989-04-01) |
| 01550-0835A-000 |
Bolt |
mt - clutch (1987-08-01~1989-04-01) |
| 01550-0835B-000 |
Bolt |
mt - clutch (1987-08-01~1989-04-01) |
| 08316-1008B-000 |
NUT |
mt - clutch (1987-08-01~1989-04-01) |
| 08316-16083-000 |
Nut |
mt - clutch (1987-08-01~1989-04-01) |
| 08321-0108A-000 |
WASHER,LOCK |
mt - clutch (1987-08-01~1989-04-01) |
| 08321-0108B-000 |
WASHER,LOCK |
mt - clutch (1987-08-01~1989-04-01) |
| 08321-21083-000 |
Washr,lk8.2x15. - Lock washer |
mt - clutch (1987-08-01~1989-04-01) |
| 09111-08035-000 |
BOLT(8X20) |
mt - clutch (1987-08-01~1989-04-01) |
| 09269-38001-000 |
BEARING(38.1X67X16.5) |
mt - clutch (1987-08-01~1989-04-01) |
| 09300-14017-000 |
BUSH(14X22X15) |
mt - clutch (1987-08-01~1989-04-01) |
| 09448-12005-000 |
SPRING |
mt - clutch (1987-08-01~1989-04-01) |
| 09448-20011-000 |
スプリング |
mt - clutch (1987-08-01~1989-04-01) |
| 22100-85001-000 |
COVER ASSY,CLUTCH |
mt - clutch (1987-08-01~1989-04-01) |
| 22400-60C00-000 |
ディスク,クラッチ |
mt - clutch (1987-08-01~1989-04-01) |
| 22400-60D10-000 |
DISC,CLUTCH |
mt - clutch (1987-08-01~1989-04-01) |
| 22400-84321-000 |
DISC,CLUTCH |
mt - clutch (1987-08-01~1989-04-01) |
| 23161-65002-000 |
RETAINER,BEARING |
mt - clutch (1987-08-01~1989-04-01) |
| 23260-79101-000 |
SHAFT,CLUTCH RELEASE |
mt - clutch (1987-08-01~1989-04-01) |
| 23266-85002-000 |
ARM,CLUTCH RELEASE |
mt - clutch (1987-08-01~1989-04-01) |
| 23266-85031-000 |
アーム,クラッチレリーズ |
mt - clutch (1987-08-01~1989-04-01) |
