Search › Model › DB52T
DB52T

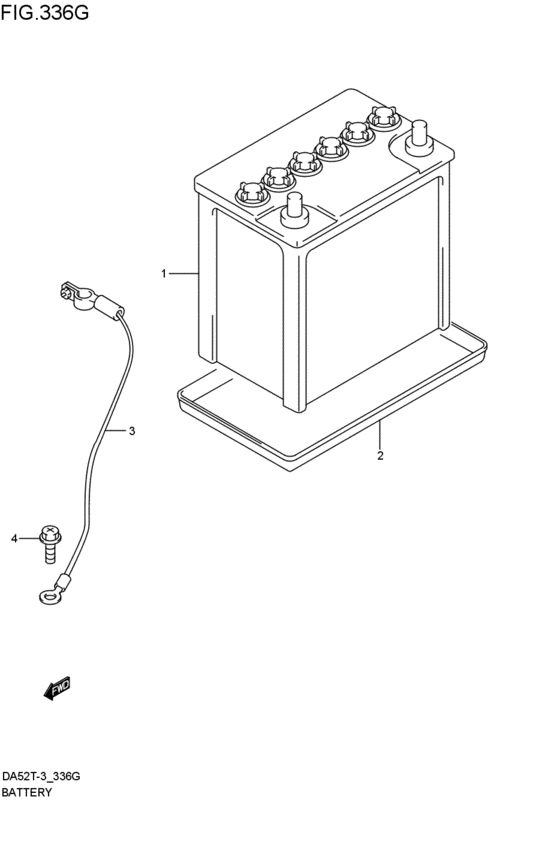

battery (2000-05-01~2001-10-01) 6
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-71320-000 | Battery assy (38b20l,12v,28ah/ - Battery assy (38b20l,12v,28ah/5hr) |
| 2 | 33660-73010-000 | Tray, battery |
| 2 | 33660-71L10-000 | TRAY,BATTERY |
| 3 | 33850-78A00-000 | CABLE,BTRY GND NO.1 |
| 4 | 09115-06001-000 | Bolt, lh - Bolt (6x16) |
| 4 | 09115-06005-000 | BOLT(6X16) |
| OEM | Part name | Category |
|---|---|---|
| 09115-06001-000 | Bolt, lh - Bolt (6x16) | battery (2000-05-01~2001-10-01) |
| 09115-06005-000 | BOLT(6X16) | battery (2000-05-01~2001-10-01) |
| 33610-71320-000 | Battery assy (38b20l,12v,28ah/ - Battery assy (38b20l,12v,28ah/5hr) | battery (2000-05-01~2001-10-01) |
| 33660-71L10-000 | TRAY,BATTERY | battery (2000-05-01~2001-10-01) |
| 33660-73010-000 | Tray, battery | battery (2000-05-01~2001-10-01) |
| 33850-78A00-000 | CABLE,BTRY GND NO.1 | battery (2000-05-01~2001-10-01) |
