Search › Model › DB51V

DB51V

Suzuki CARRY-EVERY · 1990 · 2,987 parts · 116 categories

2,987 items

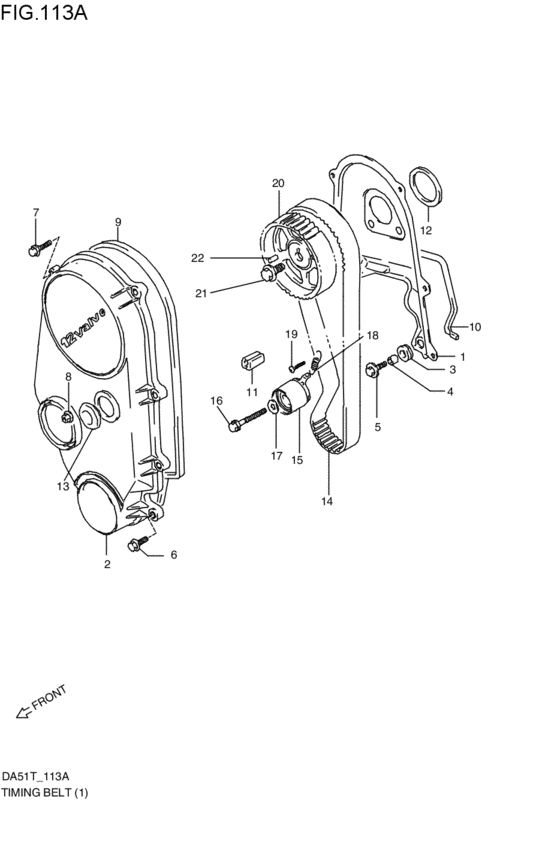

timing belt (4V; 1990-01-01~1991-08-01) 43

#	OEM	Part name
1	11360-61D00-000	カバー,タイミングベルト,インサイド
1	11360-61C00-000	COVER,TIMING BELT INSIDE
2	11390-61C03-000	Timing belt cover
3	09308-10004-000	GROMMET
4	09180-06106-000	SPACER(6.8X10X7)
5	09116-06113-000	ボルト,6X16
5	09116-06167-000	BOLT(6X20) - Bolt (6x20)
6	01517-06163-000	Bolt
6	01550-0616B-000	Bolt
6	01550-0616A-000	Bolt
7	01517-06203-000	Bolt
7	01550-0620B-000	Bolt - Bolt, inspection cap
7	01550-0620A-000	Bolt
8	08316-16063-000	Nut
8	08316-1006B-000	NUT
9	11396-72B00-000	シール,タイミングベルトカバー,アウトサイド
9	11396-71C00-000	SEAL,TIMING BELT COVER OUT
10	11383-60C03-000	シール,タイミングカバーインサイド,NO.1
11	11394-70B00-000	SEAL
12	11483-73001-000	シール,タイミングベルト,NO.3
12	11480-78110-000	SEAL SET,TIMING COVER INSIDE
12	11300-53831-000	SEAL SET,TIMING BELT COVER
13	09250-30015-000	Cap
13	72999-67H00-000	CAP,OD:40
14	11407-71D10-000	Belt set,timing
14	11407-71D30-000	TIMING BELT
15	12810-81401-000	テンショナアッシ,タイミングベルト
15	12810-81402-000	TENSIONER ASSY,TIMING BELT
16	01517-08406-000	Bolt
16	01550-0840B-000	Bolt
16	01550-0840A-000	Bolt
17	08322-11083-000	Washer
17	08322-0108B-000	WASHER
17	08322-0108A-000	WASHER
18	12821-61C00-000	スプリング,テンショナ
18	12821-70B02-000	SPRING,TENSIONER
19	02112-06206-000	Screw
19	02112-0620B-000	SCREW
19	02112-0620A-000	SCREW - Screw, holder
20	12741-61D01-000	PULLEY,CAMSHAFT TIMING BELT
21	01537-12256-000	ボルト
21	01550-1225A-000	Bolt
22	04221-05109-000	PIN

OEM	Part name	Category
01517-06163-000	Bolt	timing belt (4V; 1990-01-01~1991-08-01)
01517-06203-000	Bolt	timing belt (4V; 1990-01-01~1991-08-01)
01517-08406-000	Bolt	timing belt (4V; 1990-01-01~1991-08-01)
01537-12256-000	ボルト	timing belt (4V; 1990-01-01~1991-08-01)
01550-0616A-000	Bolt	timing belt (4V; 1990-01-01~1991-08-01)
01550-0616B-000	Bolt	timing belt (4V; 1990-01-01~1991-08-01)
01550-0620A-000	Bolt	timing belt (4V; 1990-01-01~1991-08-01)
01550-0620B-000	Bolt - Bolt, inspection cap	timing belt (4V; 1990-01-01~1991-08-01)
01550-0840A-000	Bolt	timing belt (4V; 1990-01-01~1991-08-01)
01550-0840B-000	Bolt	timing belt (4V; 1990-01-01~1991-08-01)
01550-1225A-000	Bolt	timing belt (4V; 1990-01-01~1991-08-01)
02112-06206-000	Screw	timing belt (4V; 1990-01-01~1991-08-01)
02112-0620A-000	SCREW - Screw, holder	timing belt (4V; 1990-01-01~1991-08-01)
02112-0620B-000	SCREW	timing belt (4V; 1990-01-01~1991-08-01)
04221-05109-000	PIN	timing belt (4V; 1990-01-01~1991-08-01)
08316-1006B-000	NUT	timing belt (4V; 1990-01-01~1991-08-01)
08316-16063-000	Nut	timing belt (4V; 1990-01-01~1991-08-01)
08322-0108A-000	WASHER	timing belt (4V; 1990-01-01~1991-08-01)
08322-0108B-000	WASHER	timing belt (4V; 1990-01-01~1991-08-01)
08322-11083-000	Washer	timing belt (4V; 1990-01-01~1991-08-01)
09116-06113-000	ボルト,6X16	timing belt (4V; 1990-01-01~1991-08-01)
09116-06167-000	BOLT(6X20) - Bolt (6x20)	timing belt (4V; 1990-01-01~1991-08-01)
09180-06106-000	SPACER(6.8X10X7)	timing belt (4V; 1990-01-01~1991-08-01)
09250-30015-000	Cap	timing belt (4V; 1990-01-01~1991-08-01)
09308-10004-000	GROMMET	timing belt (4V; 1990-01-01~1991-08-01)
11300-53831-000	SEAL SET,TIMING BELT COVER	timing belt (4V; 1990-01-01~1991-08-01)
11360-61C00-000	COVER,TIMING BELT INSIDE	timing belt (4V; 1990-01-01~1991-08-01)
11360-61D00-000	カバー,タイミングベルト,インサイド	timing belt (4V; 1990-01-01~1991-08-01)
11383-60C03-000	シール,タイミングカバーインサイド,NO.1	timing belt (4V; 1990-01-01~1991-08-01)
11390-61C03-000	Timing belt cover	timing belt (4V; 1990-01-01~1991-08-01)
11394-70B00-000	SEAL	timing belt (4V; 1990-01-01~1991-08-01)
11396-71C00-000	SEAL,TIMING BELT COVER OUT	timing belt (4V; 1990-01-01~1991-08-01)
11396-72B00-000	シール,タイミングベルトカバー,アウトサイド	timing belt (4V; 1990-01-01~1991-08-01)
11407-71D10-000	Belt set,timing	timing belt (4V; 1990-01-01~1991-08-01)
11407-71D30-000	TIMING BELT	timing belt (4V; 1990-01-01~1991-08-01)
11480-78110-000	SEAL SET,TIMING COVER INSIDE	timing belt (4V; 1990-01-01~1991-08-01)
11483-73001-000	シール,タイミングベルト,NO.3	timing belt (4V; 1990-01-01~1991-08-01)
12741-61D01-000	PULLEY,CAMSHAFT TIMING BELT	timing belt (4V; 1990-01-01~1991-08-01)
12810-81401-000	テンショナアッシ,タイミングベルト	timing belt (4V; 1990-01-01~1991-08-01)
12810-81402-000	TENSIONER ASSY,TIMING BELT	timing belt (4V; 1990-01-01~1991-08-01)
12821-61C00-000	スプリング,テンショナ	timing belt (4V; 1990-01-01~1991-08-01)
12821-70B02-000	SPRING,TENSIONER	timing belt (4V; 1990-01-01~1991-08-01)
72999-67H00-000	CAP,OD:40	timing belt (4V; 1990-01-01~1991-08-01)

Source: Public OEM parts-catalog data
Variants: 2 / 54
Category: 116
Collected: 2026-08-01
