Search › Model › DB51V

DB51V

Suzuki CARRY-EVERY · 1990 · 2,987 parts · 116 categories

2,987 items

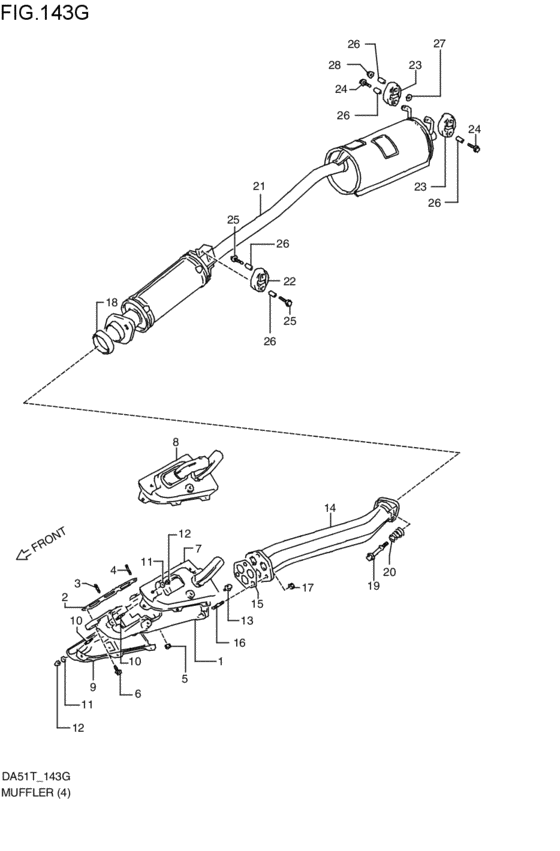

muffler (V:4V:4WD; 1990-01-01~1991-08-01) 55

#	OEM	Part name
1	14111-75D00-000	MANIFOLD,EXH
2	14141-70D10-000	ガスケット,エキゾーストマニホールド
2	14141-63F00-000	GASKET,EXH MANF
3	14118-81400-000	スタッドボルト
3	14119-81402-000	STUD BOLT
4	14119-81400-000	スタッドボルト
5	08310-12083-000	NUT M8X125X65
5	08310-0008A-000	NUT - Nut, bead stopper
5	08310-0008B-000	NUT
6	01107-08253-000	Bolt m8x1.25x25
6	01500-0825A-000	Bolt
7	14120-65C00-000	カバー,エキゾーストマニホールド,アッパ
7	14120-65C10-000	カバー,エキゾーストマニホールド,アッパ
9	14131-65C00-000	COVER,EXH LOWER
10	01411-06123-000	Bolt, stud - Stud bolt
10	01411-0612A-000	BOLT,STUD
11	08322-21063-000	Washer
11	08322-0106B-000	WASHER
12	08310-11063-000	Nut m6x1x5
12	08310-0006B-000	NUT - Nut gear shift link rod
12	08310-0006A-000	NUT
13	01517-06103-000	BOLT 6X10
13	01550-0610A-000	Bolt
13	01550-0610B-000	Bolt
14	14190-85501-000	パイプ,エキゾースト
14	14190-8550V-000	パイプ,エキゾースト
15	14181-85000-000	ガスケット,エキゾーストパイプ
15	14181-85001-000	GASKET,EXH PIPE
16	01411-10253-000	New Genuine Part
16	01411-1025A-000	BOLT,STUD
17	09159-10017-000	NUT
17	09159-10016-000	NUT - Nut, clamp bracket
18	14183-60A10-000	RING EXHAUST PIPE
18	14183-76A00-000	RING,SEAL EXH PIPE
19	09119-10042-000	ボルト,10X65
19	09119-10041-000	BOLT(10X65)
20	14492-82600-000	Spring
20	14492-67D00-000	SPRING,EXH PIPE
21	14300-64C10-000	マフラ
21	14300-64C1V-000	マフラ
22	14282-78010-000	MOUNTING EX
22	14281-60G11-000	MOUNTING,MUFFLER(HS60)
23	14281-79010-000	Mounting, muffler
24	01517-08303-000	BOLT
24	01550-0830A-000	Bolt - Bolt, mount oil seal cover
24	01550-0830B-000	Bolt
25	01517-08353-000	Bolt
25	01550-0835B-000	Bolt
25	01550-0835A-000	Bolt
26	09180-08057-000	Spacer
26	09180-08227-000	SPACER(8.2X12.5X23.5)
27	09160-08107-000	Washer
27	09160-08123-000	WASHER(8.5X20X1.2)
28	08316-16083-000	Nut
28	08316-1008B-000	NUT

OEM	Part name	Category
01107-08253-000	Bolt m8x1.25x25	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
01411-06123-000	Bolt, stud - Stud bolt	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
01411-0612A-000	BOLT,STUD	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
01411-10253-000	New Genuine Part	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
01411-1025A-000	BOLT,STUD	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
01500-0825A-000	Bolt	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
01517-06103-000	BOLT 6X10	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
01517-08303-000	BOLT	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
01517-08353-000	Bolt	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
01550-0610A-000	Bolt	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
01550-0610B-000	Bolt	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
01550-0830A-000	Bolt - Bolt, mount oil seal cover	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
01550-0830B-000	Bolt	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
01550-0835A-000	Bolt	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
01550-0835B-000	Bolt	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
08310-0006A-000	NUT	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
08310-0006B-000	NUT - Nut gear shift link rod	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
08310-0008A-000	NUT - Nut, bead stopper	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
08310-0008B-000	NUT	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
08310-11063-000	Nut m6x1x5	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
08310-12083-000	NUT M8X125X65	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
08316-1008B-000	NUT	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
08316-16083-000	Nut	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
08322-0106B-000	WASHER	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
08322-21063-000	Washer	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
09119-10041-000	BOLT(10X65)	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
09119-10042-000	ボルト,10X65	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
09159-10016-000	NUT - Nut, clamp bracket	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
09159-10017-000	NUT	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
09160-08107-000	Washer	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
09160-08123-000	WASHER(8.5X20X1.2)	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
09180-08057-000	Spacer	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
09180-08227-000	SPACER(8.2X12.5X23.5)	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
14111-75D00-000	MANIFOLD,EXH	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
14118-81400-000	スタッドボルト	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
14119-81400-000	スタッドボルト	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
14119-81402-000	STUD BOLT	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
14120-65C00-000	カバー,エキゾーストマニホールド,アッパ	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
14120-65C10-000	カバー,エキゾーストマニホールド,アッパ	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
14131-65C00-000	COVER,EXH LOWER	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
14141-63F00-000	GASKET,EXH MANF	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
14141-70D10-000	ガスケット,エキゾーストマニホールド	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
14181-85000-000	ガスケット,エキゾーストパイプ	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
14181-85001-000	GASKET,EXH PIPE	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
14183-60A10-000	RING EXHAUST PIPE	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
14183-76A00-000	RING,SEAL EXH PIPE	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
14190-85501-000	パイプ,エキゾースト	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
14190-8550V-000	パイプ,エキゾースト	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
14281-60G11-000	MOUNTING,MUFFLER(HS60)	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
14281-79010-000	Mounting, muffler	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
14282-78010-000	MOUNTING EX	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
14300-64C10-000	マフラ	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
14300-64C1V-000	マフラ	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
14492-67D00-000	SPRING,EXH PIPE	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
14492-82600-000	Spring	muffler (V:4V:4WD; 1990-01-01~1991-08-01)
