DB51V

Suzuki CARRY-EVERY · 1990 · 2,987 parts · 116 categories

2,987 items

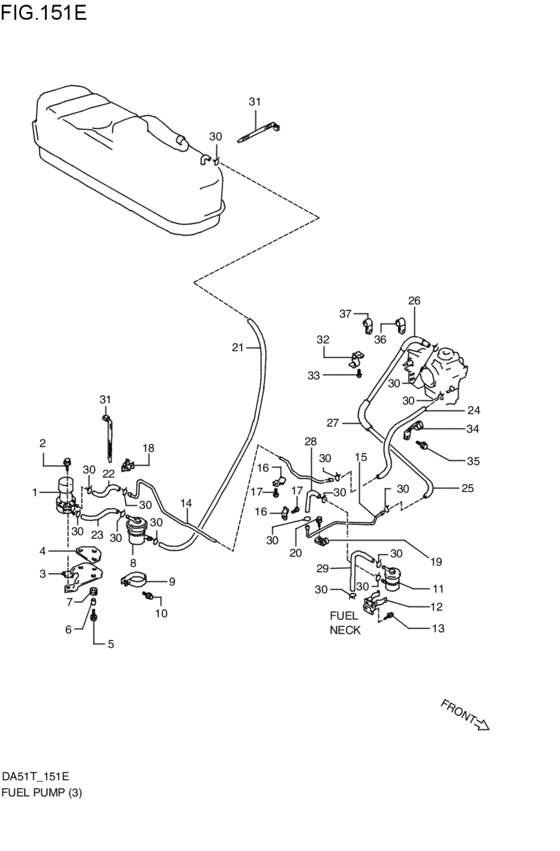

Fuel Pump (V:4V; 1990-01-01~1991-08-01) 60

#	OEM	Part name
1	15100-75D00-000	ポンプアッシ,フューエル
1	15100-75DV0-000	PUMP ASSY,FUEL
2	09116-06129-000	BOLT(6X30)
3	15310-85510-000	BRACKET,FUEL PUMP
4	15316-85500-000	CUSHION,FUEL PUMP BRACKET
5	09116-06056-000	Bolt (6*10) - Bolt (6x20)
5	09116-06115-000	BOLT(6X20) - Bolt (6x20)
6	09180-06044-000	Spacer
6	09180-06248-000	SPACER(6.1X8X9.5)
7	09320-08038-000	グロメット
7	09320-08013-000	CUSHION - Grommet
7	09320-08509-000	Cushion(8X22X7)
8	15410-85200-000	FILTER,FUEL
9	09403-51407-000	CLAMP
10	01517-06123-000	Bolt
10	01550-0612B-000	Bolt - Bolt, clamp
10	01550-0612A-000	Bolt
11	15430-75D00-000	TANK,FUEL RESERVE
12	15420-75D00-000	Bracket,fuel reserve tank
12	15420-75D0V-000	BRACKET,FUEL RESERVE
13	09132-06008-000	SCREW(6X12)
14	15811-85500-000	パイプ,フューエル
15	15861-75D00-000	パイプ,フューエルリターン
16	09403-05302-000	CLAMP
17	03111-06123-000	スクリュ
17	03111-0612A-000	SCREW
18	09403-06312-000	CLAMP
19	09403-07401-000	CLAMP
19	09403-07412-000	Clamp
21	09354-70124-600	ホース,7X12X600
21	09354-65113-600	HOSE(6.5X11.5X600) - Hose (6.5x11.5x600)
21	44421-12FR0-000	HOSE
21	09355-70125-600	HOSE(7X12X600) - Hose, fuel (pump to separator)
21	09355-65001-600	Hose(6.5X11.5X600)
22	09356-58125-300	ホース,8.8X12.2X300
22	09356-58127-600	HOSE(5.8X12.2X600) - Hose (p/r to v/s)
23	09354-54116-300	ホース,5.4X11.4X300
23	09355-54115-600	HOSE(5.4X11.4X600) - Hose, vacuum
24	09356-58123-600	ホース,5.8X12.2X600
26	09351-14171-300	ホース,14X17X300
26	09351-14171-600	HOSE(14X17X600)
27	09352-13162-300	ホース,13.5X16.5X300
27	09352-13162-600	HOSE(13.5X16.5X600) - Protector, seat damper
28	15864-75D00-000	ホース,フューエルリターン
28	09356-58125-600	ホース,5.8X12.2X600
29	09356-58123-300	ホース,5.8X12.2X300
30	09401-11408-000	Clip
30	09401-11415-000	CLIP
30	09401-11407-000	CLIP
31	09407-14403-000	CLAMP(L:125) - Clamp, spark plug cap
32	15881-75D00-000	クランプ,フューエルホース
32	09404-08420-000	CLAMP(L:120 T:1.0)
32	09404-08405-000	Clamp, drain tube
34	09403-13405-000	Сlamp
35	01134-06126-000	Bolt
35	01570-0612B-000	Bolt - Bolt, upper
35	01570-0612A-000	Bolt
36	15815-79110-000	クランプ,トランスミッションケース
36	09404-10417-000	CLAMP(L:97)
36	09404-10404-000	Clamp, trim relay

OEM	Part name	Category
01134-06126-000	Bolt	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
01517-06123-000	Bolt	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
01550-0612A-000	Bolt	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
01550-0612B-000	Bolt - Bolt, clamp	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
01570-0612A-000	Bolt	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
01570-0612B-000	Bolt - Bolt, upper	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
03111-06123-000	スクリュ	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
03111-0612A-000	SCREW	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09116-06056-000	Bolt (6*10) - Bolt (6x20)	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09116-06115-000	BOLT(6X20) - Bolt (6x20)	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09116-06129-000	BOLT(6X30)	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09132-06008-000	SCREW(6X12)	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09180-06044-000	Spacer	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09180-06248-000	SPACER(6.1X8X9.5)	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09320-08013-000	CUSHION - Grommet	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09320-08038-000	グロメット	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09320-08509-000	Cushion(8X22X7)	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09351-14171-300	ホース,14X17X300	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09351-14171-600	HOSE(14X17X600)	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09352-13162-300	ホース,13.5X16.5X300	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09352-13162-600	HOSE(13.5X16.5X600) - Protector, seat damper	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09354-54116-300	ホース,5.4X11.4X300	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09354-65113-600	HOSE(6.5X11.5X600) - Hose (6.5x11.5x600)	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09354-70124-600	ホース,7X12X600	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09355-54115-600	HOSE(5.4X11.4X600) - Hose, vacuum	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09355-65001-600	Hose(6.5X11.5X600)	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09355-70125-600	HOSE(7X12X600) - Hose, fuel (pump to separator)	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09356-58123-300	ホース,5.8X12.2X300	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09356-58123-600	ホース,5.8X12.2X600	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09356-58125-300	ホース,8.8X12.2X300	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09356-58125-600	ホース,5.8X12.2X600	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09356-58127-600	HOSE(5.8X12.2X600) - Hose (p/r to v/s)	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09401-11407-000	CLIP	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09401-11408-000	Clip	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09401-11415-000	CLIP	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09403-05302-000	CLAMP	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09403-06312-000	CLAMP	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09403-07401-000	CLAMP	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09403-07412-000	Clamp	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09403-13405-000	Сlamp	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09403-51407-000	CLAMP	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09404-08405-000	Clamp, drain tube	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09404-08420-000	CLAMP(L:120 T:1.0)	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09404-10404-000	Clamp, trim relay	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09404-10417-000	CLAMP(L:97)	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
09407-14403-000	CLAMP(L:125) - Clamp, spark plug cap	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
15100-75D00-000	ポンプアッシ,フューエル	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
15100-75DV0-000	PUMP ASSY,FUEL	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
15310-85510-000	BRACKET,FUEL PUMP	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
15316-85500-000	CUSHION,FUEL PUMP BRACKET	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
15410-85200-000	FILTER,FUEL	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
15420-75D00-000	Bracket,fuel reserve tank	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
15420-75D0V-000	BRACKET,FUEL RESERVE	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
15430-75D00-000	TANK,FUEL RESERVE	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
15811-85500-000	パイプ,フューエル	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
15815-79110-000	クランプ,トランスミッションケース	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
15861-75D00-000	パイプ,フューエルリターン	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
15864-75D00-000	ホース,フューエルリターン	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
15881-75D00-000	クランプ,フューエルホース	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
44421-12FR0-000	HOSE	Fuel Pump (V:4V; 1990-01-01~1991-08-01)
