Search › Model › DB41T

DB41T

Suzuki CARRY-EVERY · 1989 · 2,461 parts · 103 categories

2,461 items

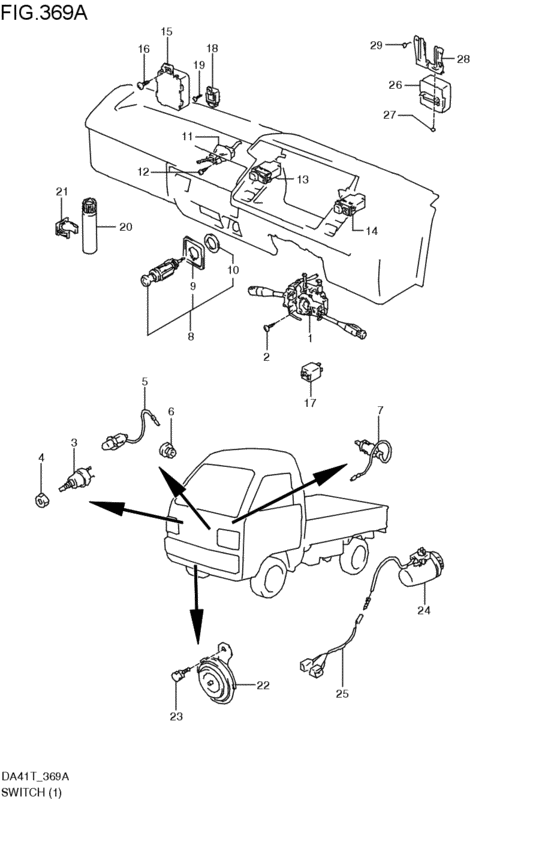

switch (C; 1989-05-01~1990-01-01) 33

#	OEM	Part name
1	37400-83223-000	スイッチアッシ,コンビネーション
1	37400-77510-000	SWITCH ASSY,COMB
2	03211-05166-000	Screw, l:16 - Vis
2	03211-0516A-000	SCREW
3	37740-66010-000	SWITCH ASSY,BRAKE LAMP
4	08310-22106-000	Nut
4	08310-0010B-000	NUT
4	08310-0010A-000	NUT
5	37940-79000-000	スイッチアッシ,パーキングブレーキ
5	37940-50A00-000	SWITCH ASSY,PARKING BRAKE
6	09308-03005-000	GROMMET
7	37670-85001-000	SWITCH ASSY,DOOR
8	39400-83810-000	CIGARATE LIGHTER
8	39400-83811-000	LIGHTER ASSY,CIGARETTE
9	39471-78001-000	RIM,CIGARETTE LIGHTER
10	09160-23007-000	WASHER(23X34X1)
11	37870-80000-000	SWITCH ASSY,HTR FAN MOTOR
12	03212-04107-000	Screw, center fender
12	03211-0410B-000	SCREW
13	37780-85010-000	スイッチアッシ,アクスルロックコントロール
15	38885-85021-000	CONTROLLER ASSY,4WD SHIFT
17	38610-50A01-000	RELAY
17	38610-76G00-000	RELAY,TURN SIGNAL&4WAY - Relay, turnsignal & 4 way
18	38860-81430-000	RELAY ASSY,FUEL PUMP
19	03141-06106-000	Screw 6 x 10
19	03141-0610A-000	SCREW
20	39710-58010-000	シグナルアッシ,フレヤ(KARRIT)
20	76470-84B00-000	シグナルアッシ,フレヤ(KARRIT)
21	09403-32301-000	HOLDER
22	38500-78010-000	ホーンアッシ
22	38500-84101-000	HORN ASSY
23	01137-08166-000	BOLT
23	01570-0816A-000	Bolt

OEM	Part name	Category
01137-08166-000	BOLT	switch (C; 1989-05-01~1990-01-01)
01570-0816A-000	Bolt	switch (C; 1989-05-01~1990-01-01)
03141-06106-000	Screw 6 x 10	switch (C; 1989-05-01~1990-01-01)
03141-0610A-000	SCREW	switch (C; 1989-05-01~1990-01-01)
03211-0410B-000	SCREW	switch (C; 1989-05-01~1990-01-01)
03211-05166-000	Screw, l:16 - Vis	switch (C; 1989-05-01~1990-01-01)
03211-0516A-000	SCREW	switch (C; 1989-05-01~1990-01-01)
03212-04107-000	Screw, center fender	switch (C; 1989-05-01~1990-01-01)
08310-0010A-000	NUT	switch (C; 1989-05-01~1990-01-01)
08310-0010B-000	NUT	switch (C; 1989-05-01~1990-01-01)
08310-22106-000	Nut	switch (C; 1989-05-01~1990-01-01)
09160-23007-000	WASHER(23X34X1)	switch (C; 1989-05-01~1990-01-01)
09308-03005-000	GROMMET	switch (C; 1989-05-01~1990-01-01)
09403-32301-000	HOLDER	switch (C; 1989-05-01~1990-01-01)
37400-77510-000	SWITCH ASSY,COMB	switch (C; 1989-05-01~1990-01-01)
37400-83223-000	スイッチアッシ,コンビネーション	switch (C; 1989-05-01~1990-01-01)
37670-85001-000	SWITCH ASSY,DOOR	switch (C; 1989-05-01~1990-01-01)
37740-66010-000	SWITCH ASSY,BRAKE LAMP	switch (C; 1989-05-01~1990-01-01)
37780-85010-000	スイッチアッシ,アクスルロックコントロール	switch (C; 1989-05-01~1990-01-01)
37870-80000-000	SWITCH ASSY,HTR FAN MOTOR	switch (C; 1989-05-01~1990-01-01)
37940-50A00-000	SWITCH ASSY,PARKING BRAKE	switch (C; 1989-05-01~1990-01-01)
37940-79000-000	スイッチアッシ,パーキングブレーキ	switch (C; 1989-05-01~1990-01-01)
38500-78010-000	ホーンアッシ	switch (C; 1989-05-01~1990-01-01)
38500-84101-000	HORN ASSY	switch (C; 1989-05-01~1990-01-01)
38610-50A01-000	RELAY	switch (C; 1989-05-01~1990-01-01)
38610-76G00-000	RELAY,TURN SIGNAL&4WAY - Relay, turnsignal & 4 way	switch (C; 1989-05-01~1990-01-01)
38860-81430-000	RELAY ASSY,FUEL PUMP	switch (C; 1989-05-01~1990-01-01)
38885-85021-000	CONTROLLER ASSY,4WD SHIFT	switch (C; 1989-05-01~1990-01-01)
39400-83810-000	CIGARATE LIGHTER	switch (C; 1989-05-01~1990-01-01)
39400-83811-000	LIGHTER ASSY,CIGARETTE	switch (C; 1989-05-01~1990-01-01)
39471-78001-000	RIM,CIGARETTE LIGHTER	switch (C; 1989-05-01~1990-01-01)
39710-58010-000	シグナルアッシ,フレヤ(KARRIT)	switch (C; 1989-05-01~1990-01-01)
76470-84B00-000	シグナルアッシ,フレヤ(KARRIT)	switch (C; 1989-05-01~1990-01-01)
