Search › Model › DB41T

DB41T

Suzuki CARRY-EVERY · 1989 · 2,461 parts · 103 categories

2,461 items

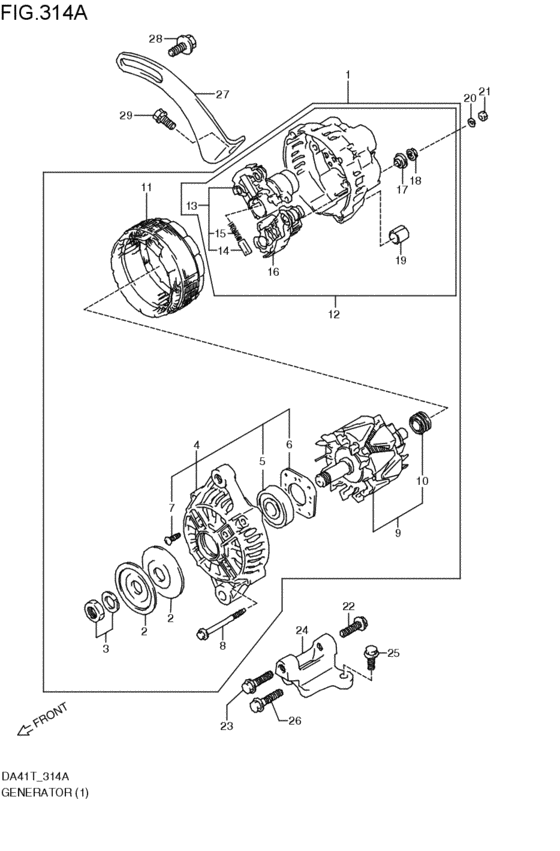

generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01) 54

#	OEM	Part name
1	31400-60C10-000	ジェネレータアッシ
1	31400-60C13-000	GENERATOR ASSY
1	31400-60C14-000	Generator Assy
2	31171-82131-000	PULLEY
3	31775-60C10-000	NUT,PULLEY
3	31775-50F20-000	NUT
4	31580-60C10-000	ブラケットアッシ,フロント
5	31582-60A21-000	BEARING
6	31585-60A10-000	RETAINER,BEARING
7	31586-60A10-000	SCREW SET
8	31651-86520-000	SCREW SET
9	31710-60A10-000	ROTOR ASSY
10	31612-60A10-000	Bearing,rr
10	31612-60A11-000	BEARING,REAR
11	31410-85320-000	STATOR ASSY
12	31611-60C10-000	ハウジングアッシ,リヤ
13	32500-60C10-000	REGULATOR ASSY
14	31631-60A10-000	ブラシ
14	31631-60F30-000	BRUSH SET
15	31653-86520-000	SPRING BRUSH
16	31621-60C10-000	RECTIFIER ASSY
17	31514-60C10-000	インシュレータ
17	31514-82630-000	INSULATOR
18	31456-86030-000	ナット
18	08316-1006A-000	NUT
18	08316-1006B-000	NUT
18	08319-31067-000	NUT - Nut, center
18	08316-10063-000	Nut
19	31616-82131-000	BUSH
19	31616-82C20-000	BUSH
20	08321-21067-000	Lock washer
20	08321-01067-000	WASHER,LOCK
21	08310-12066-000	Nut
21	08310-0006B-000	NUT - Nut gear shift link rod
21	08310-0006A-000	NUT
22	01517-08306-000	Bolt
22	01550-0830B-000	Bolt
22	01550-0830A-000	Bolt - Bolt, mount oil seal cover
23	01517-08356-000	Bolt, front
23	01550-0835B-000	Bolt
23	01550-0835A-000	Bolt
24	11551-60C00-000	ブラケット,オルタネータ
24	11551-60C01-000	BRACKET,ALTERNATOR
25	01517-08253-000	ボルト
25	01550-0825A-000	Bolt
25	01550-0825B-000	Bolt
26	01517-08403-000	ボルト
26	01550-0840B-000	Bolt
27	11561-79100-000	ARM,ADJUSTER
28	09118-08057-000	ボルト,8X25
28	09118-08107-000	BOLT(8X25)
29	01137-08203-000	Bolt, brace front
29	01570-0820B-000	Bolt
29	01570-0820A-000	Bolt

OEM	Part name	Category
01137-08203-000	Bolt, brace front	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
01517-08253-000	ボルト	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
01517-08306-000	Bolt	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
01517-08356-000	Bolt, front	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
01517-08403-000	ボルト	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
01550-0825A-000	Bolt	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
01550-0825B-000	Bolt	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
01550-0830A-000	Bolt - Bolt, mount oil seal cover	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
01550-0830B-000	Bolt	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
01550-0835A-000	Bolt	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
01550-0835B-000	Bolt	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
01550-0840B-000	Bolt	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
01570-0820A-000	Bolt	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
01570-0820B-000	Bolt	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
08310-0006A-000	NUT	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
08310-0006B-000	NUT - Nut gear shift link rod	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
08310-12066-000	Nut	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
08316-10063-000	Nut	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
08316-1006A-000	NUT	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
08316-1006B-000	NUT	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
08319-31067-000	NUT - Nut, center	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
08321-01067-000	WASHER,LOCK	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
08321-21067-000	Lock washer	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
09118-08057-000	ボルト,8X25	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
09118-08107-000	BOLT(8X25)	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
11551-60C00-000	ブラケット,オルタネータ	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
11551-60C01-000	BRACKET,ALTERNATOR	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
11561-79100-000	ARM,ADJUSTER	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31171-82131-000	PULLEY	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31400-60C10-000	ジェネレータアッシ	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31400-60C13-000	GENERATOR ASSY	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31400-60C14-000	Generator Assy	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31410-85320-000	STATOR ASSY	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31456-86030-000	ナット	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31514-60C10-000	インシュレータ	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31514-82630-000	INSULATOR	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31580-60C10-000	ブラケットアッシ,フロント	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31582-60A21-000	BEARING	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31585-60A10-000	RETAINER,BEARING	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31586-60A10-000	SCREW SET	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31611-60C10-000	ハウジングアッシ,リヤ	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31612-60A10-000	Bearing,rr	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31612-60A11-000	BEARING,REAR	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31616-82131-000	BUSH	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31616-82C20-000	BUSH	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31621-60C10-000	RECTIFIER ASSY	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31631-60A10-000	ブラシ	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31631-60F30-000	BRUSH SET	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31651-86520-000	SCREW SET	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31653-86520-000	SPRING BRUSH	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31710-60A10-000	ROTOR ASSY	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31775-50F20-000	NUT	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
31775-60C10-000	NUT,PULLEY	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
32500-60C10-000	REGULATOR ASSY	generator ((2V,4V):CARB:(C,V); 1989-05-01~1990-01-01)
