DB41T

Suzuki CARRY-EVERY · 1989 · 2,461 parts · 103 categories

2,461 items

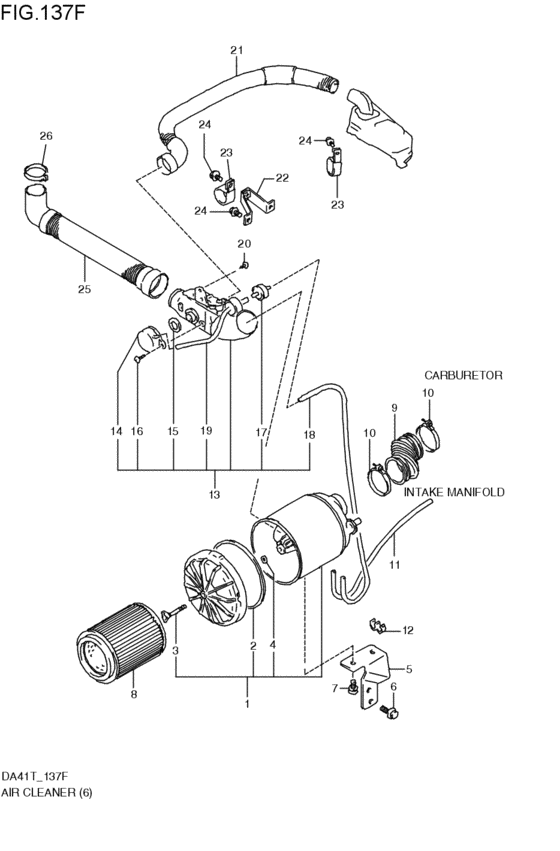

air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01) 41

#	OEM	Part name
1	13701-85402-000	ケースアッシ,エアクリーナ
2	13772-85000-000	GASKET,CASE
3	13745-79120-000	BOLT,WING
3	01580-0650A-000	Bolt
4	09280-09003-000	O ring, clutch lever shaft
4	09280-09005-000	O RING(D:1.9,ID:8.6)
5	11643-64C00-000	ブラケット,エアクリーナケース
5	11643-64C01-000	Bracket,air cleaner case
6	01517-08203-000	BOLT
6	01550-0820A-000	Bolt - Bolt, funnel bracket
6	01550-0820B-000	Bolt
7	01137-08123-000	Bolt - Bolt, brace rear
7	01570-0812A-000	Bolt
8	13780-79001-000	ELEMENT,AIR CLEANER
9	13881-85410-000	HOSE,AIR CLEANER TO CARBURETOR
10	09402-62309-000	CLAMP
11	09358-35754-600	ホース,3.5X7.5X600
11	09355-35754-601	HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve)
11	09355-35006-601	Hose(3.5X7.5X601)
12	09408-00033-000	CLAMP
13	13740-64C00-000	ケースアッシ,エアバルブ
14	13748-85510-000	ACTUATOR,AIR VALVE
15	13746-85000-000	Gasket,actuator
16	03142-05109-000	Screw 5x10
16	03142-0510B-000	SCREW
17	18114-85000-000	バルブ,バキュームトランスミツテイング
17	18114-82150-000	VALVE,VACUUM TRANSMITTING - Valve, vacuum transmitting
18	09358-35754-300	ホース,3.5X7.5X300
20	03141-06123-000	Screw 6x12
20	03141-0612A-000	SCREW
21	13840-60C40-000	ホース,ウォームエア
21	13840-60C41-000	HOSE,WARM AIR
22	13862-65C00-000	ブラケット,ウォームエアホース
23	09403-38401-000	CLAMP
24	01517-06103-000	BOLT 6X10
24	01550-0610A-000	Bolt
24	01550-0610B-000	Bolt
25	13870-64C00-000	ホース,クールエア
25	13870-85X50-000	ホース,クールエア
26	09402-46308-000	Сlamp
26	09402-46309-XC0	CLAMP

OEM	Part name	Category
01137-08123-000	Bolt - Bolt, brace rear	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
01517-06103-000	BOLT 6X10	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
01517-08203-000	BOLT	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
01550-0610A-000	Bolt	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
01550-0610B-000	Bolt	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
01550-0820A-000	Bolt - Bolt, funnel bracket	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
01550-0820B-000	Bolt	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
01570-0812A-000	Bolt	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
01580-0650A-000	Bolt	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
03141-06123-000	Screw 6x12	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
03141-0612A-000	SCREW	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
03142-05109-000	Screw 5x10	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
03142-0510B-000	SCREW	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
09280-09003-000	O ring, clutch lever shaft	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
09280-09005-000	O RING(D:1.9,ID:8.6)	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
09355-35006-601	Hose(3.5X7.5X601)	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
09355-35754-601	HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve)	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
09358-35754-300	ホース,3.5X7.5X300	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
09358-35754-600	ホース,3.5X7.5X600	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
09402-46308-000	Сlamp	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
09402-46309-XC0	CLAMP	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
09402-62309-000	CLAMP	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
09403-38401-000	CLAMP	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
09408-00033-000	CLAMP	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
11643-64C00-000	ブラケット,エアクリーナケース	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
11643-64C01-000	Bracket,air cleaner case	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
13701-85402-000	ケースアッシ,エアクリーナ	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
13740-64C00-000	ケースアッシ,エアバルブ	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
13745-79120-000	BOLT,WING	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
13746-85000-000	Gasket,actuator	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
13748-85510-000	ACTUATOR,AIR VALVE	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
13772-85000-000	GASKET,CASE	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
13780-79001-000	ELEMENT,AIR CLEANER	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
13840-60C40-000	ホース,ウォームエア	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
13840-60C41-000	HOSE,WARM AIR	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
13862-65C00-000	ブラケット,ウォームエアホース	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
13870-64C00-000	ホース,クールエア	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
13870-85X50-000	ホース,クールエア	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
13881-85410-000	HOSE,AIR CLEANER TO CARBURETOR	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
18114-82150-000	VALVE,VACUUM TRANSMITTING - Valve, vacuum transmitting	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
18114-85000-000	バルブ,バキュームトランスミツテイング	air cleaner (C:4V:CARB:P4WD; 1989-05-01~1990-01-01)
