DB102

Toyota HEAVY-DUTY-TRUCK · 1969 · 3,033 parts · 115 categories
DB102 ×

← Back to categories

3,033 items

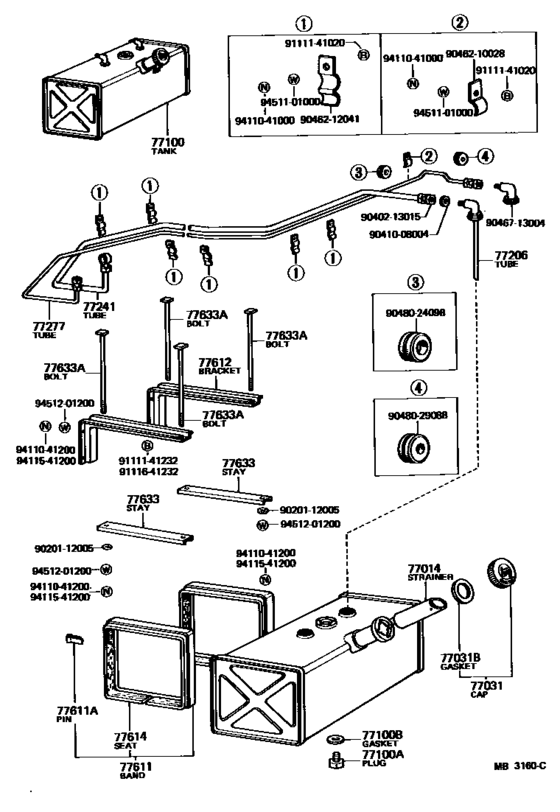

Fuel Tank & Tube ([03.1969 - 05.1972] (6903-7205)DB10#) 49
#OEMPart name
77014 77012-56010 Strainer Sub-Assy, Fuel
77031 77310-55090 Cap Assy, Fuel Tank
77031 77310-60100 Cap Assy, Fuel Tank
77031 77310-56020 Cap Assy, Fuel Tank
77031 77316-27010 Gasket (For Fuel Tank Cap)
77031 90430-67079 Gasket (For Fuel Tank Cap)
77100 77001-55902 Tank Assy, Fuel
77100 77001-55150 Tank Assy, Fuel
77100 77001-56030 Tank Assy, Fuel
77100 77100-56022 Tank Assy, Fuel
77100 77001-56013 Tank Assy, Fuel (lpg)
77100 90105-12018 Plug(For Fuel Tank)
77100 90105-12005 Plug(For Fuel Tank)
77100 90430-12038 Gasket(For Fuel Tank)
77206 77206-66010 Tube Sub-Assy, Fuel Tank Suction
77241 77252-96522 Tube, Fuel Main, No.1
77241 90923-01004 Tube, Fuel Main, No.1
77277 77257-96519 Tube, Fuel Return, No.1
77277 90923-01003 Tube, Fuel Return, No.1
77611 77601-56010 Band, Fuel Tank
77611 77653-35010 Clamp Or Clip, Hood Side Panel Cushion Shim
77612 77603-56010 Bracket Sub-Assy, Fuel Tank
77612 77604-56010 Bracket Sub-Assy, Fuel Tank
77614 77614-56010 Seat, Fuel Tank Band
77633 77646-56010 Stay, Fuel Tank
77633 77605-56010 Bolt Sub-Assy, Fuel Tank Set
9020112005 90201-12005 Washer, Plate (For Front Power Take-Off Shaft)
9020112005 90201-12169 Washer, Plate (For Front Power Take-Off Shaft)
9040213015 90402-13015 Nut, Union(For Fuel Pipe)
9040213015 90402-13041 Nut, Union(For Fuel Pipe)
9041008004 90410-08004 Olive(For Fuel Pipe)
9041008004 96395-71400 Olive(For Fuel Pipe)
9046210028 90462-10028 New Genuine Part
9046212041 90462-12041 New Genuine Part
9046713004 90467-13004 Clip(For Hood Insulator)
9046713004 90467-13009 Clip(For Hood Insulator)
9048024098 90480-24098 New Genuine Part
9048029088 90480-29088 New Genuine Part
9111141020 91111-41020 New Genuine Part
9111141020 91111-51020 New Genuine Part
9111141232 91111-41232 New Genuine Part
9111141232 91111-51232 New Genuine Part
9111641232 91116-41232 New Genuine Part
9411041000 94110-41000 Nut(For Steering Damper)
9411041200 94110-41200 New Genuine Part
9411541200 94115-41200 Nut
9411541200 94130-61200 Nut
9451101000 94511-01000 Washer(For Rear Drive Shaft)
9451201200 94512-01200 Washer
