Search › Model › DB102

DB102

Toyota HEAVY-DUTY-TRUCK · 1969 · 3,033 parts · 115 categories

3,033 items

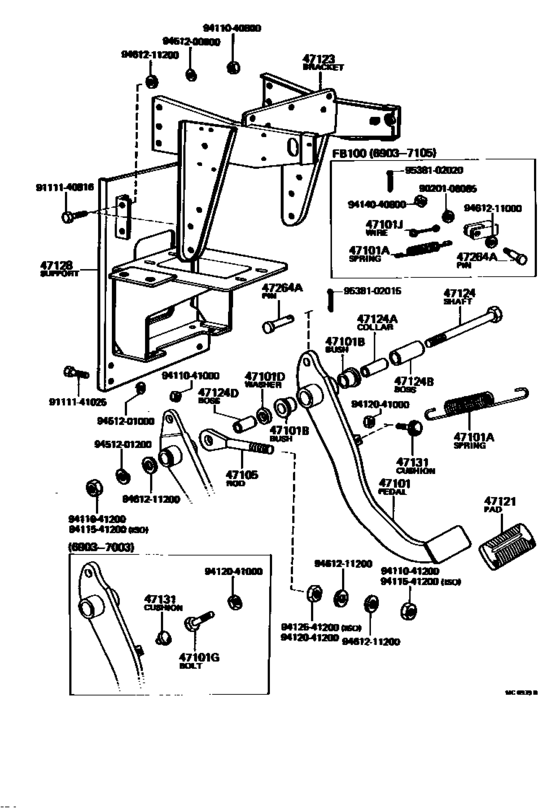

Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100) 48

#	OEM	Part name
47101	47102-96519	Pedal Sub-Assy, Brake
47101	47111-96525	Pedal Sub-Assy, Brake
47101	31319-96519	Spring(For Brake Pedal Return)
47101	90506-23405	Spring(For Brake Pedal Return)
47101	90386-20037	Bush(For Clutch Pedal)
47101	47134-96518	Washer(For Pedal Shaft)
47101	90564-20170	Washer(For Pedal Shaft)
47101	47135-96518	Washer(For Pedal Shaft)
47101	90564-20171	Washer(For Pedal Shaft)
47101	31328-96518	Bolt, Brake Pedal Stop, No.1
47105	31316-96518	Rod, Pedal Shaft Brace
47105	94130-61200	Nut
47105	31316-96520	Rod, Pedal Shaft Brace
47105	94125-41200	Nut, Steering Wheel Set
47121	31321-35010	Pad, Clutch Pedal
47123	55160-96519	Bracket, Brake Pedal
47124	31324-96518	Shaft, Brake Pedal
47124	31324-96519	Shaft, Brake Pedal
47124	47131-96518	Collar(For Brake Pedal Shaft)
47124	47132-96518	Boss, Brake Pedal
47124	90387-20104	Boss, Brake Pedal
47124	47133-96518	Boss, Brake Pedal, No.2
47124	90387-20103	Boss, Brake Pedal, No.2
47128	51081-96520	Support Sub-Assy, Pedal Bracket
47131	47131-55011	Cushion(For Stop Lamp Switch)
47131	90541-06008	Cushion, No.1(For Clutch Pedal)
47264	90240-10027	Pin (For High & Low Shift Rod)
9020108085	90201-08085	Washer, Plate(For Camshaft Thrust Plate)
9111140816	91111-40816	New Genuine Part
9111140816	91111-50816	Bolt
9111141025	91111-41025	Bolt(For Crankshaft Pulley Set)
9111141025	91112-61025	Bolt(For Clutch Pedal Stopper)
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9411041000	94110-41000	Nut(For Steering Damper)
9411041200	94110-41200	New Genuine Part
9411541200	94115-41200	Nut
9412041000	94120-41000	Nut(For Clutch Pedal Stopper)
9412041000	90170-A0002	Nut
9412041200	94120-41200	New Genuine Part
9414040800	94140-40800	New Genuine Part
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201200	94512-01200	Washer
9461211000	94612-11000	Plate, Spring Set
9461211200	94612-11200	Washer
9538102015	95381-02015	New Genuine Part
9538102020	95381-02020	PIN

OEM	Part name	Category
31316-96518	Rod, Pedal Shaft Brace	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
31316-96520	Rod, Pedal Shaft Brace	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
31319-96519	Spring(For Brake Pedal Return)	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
31321-35010	Pad, Clutch Pedal	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
31324-96518	Shaft, Brake Pedal	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
31324-96519	Shaft, Brake Pedal	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
31328-96518	Bolt, Brake Pedal Stop, No.1	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
47102-96519	Pedal Sub-Assy, Brake	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
47111-96525	Pedal Sub-Assy, Brake	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
47131-55011	Cushion(For Stop Lamp Switch)	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
47131-96518	Collar(For Brake Pedal Shaft)	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
47132-96518	Boss, Brake Pedal	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
47133-96518	Boss, Brake Pedal, No.2	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
47134-96518	Washer(For Pedal Shaft)	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
47135-96518	Washer(For Pedal Shaft)	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
51081-96520	Support Sub-Assy, Pedal Bracket	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
55160-96519	Bracket, Brake Pedal	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
90170-A0002	Nut	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
90201-08085	Washer, Plate(For Camshaft Thrust Plate)	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
90240-10027	Pin (For High & Low Shift Rod)	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
90386-20037	Bush(For Clutch Pedal)	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
90387-20103	Boss, Brake Pedal, No.2	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
90387-20104	Boss, Brake Pedal	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
90506-23405	Spring(For Brake Pedal Return)	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
90541-06008	Cushion, No.1(For Clutch Pedal)	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
90564-20170	Washer(For Pedal Shaft)	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
90564-20171	Washer(For Pedal Shaft)	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
91111-40816	New Genuine Part	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
91111-41025	Bolt(For Crankshaft Pulley Set)	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
91111-50816	Bolt	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
91112-61025	Bolt(For Clutch Pedal Stopper)	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
94110-40800	Nut(For Steering Damper)	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
94110-41000	Nut(For Steering Damper)	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
94110-41200	New Genuine Part	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
94115-41200	Nut	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
94120-41000	Nut(For Clutch Pedal Stopper)	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
94120-41200	New Genuine Part	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
94125-41200	Nut, Steering Wheel Set	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
94130-00802	Nut, No.1 (For Center Support Bearing)	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
94130-61200	Nut	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
94140-40800	New Genuine Part	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
94512-01200	Washer	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
94612-11000	Plate, Spring Set	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
94612-11200	Washer	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
95381-02015	New Genuine Part	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
95381-02020	PIN	Brake Pedal & Bracket ([03.1969 - 03.1977] (6903-7703)DB10#,FB100)
