Search › Model › DA65T
DA65T

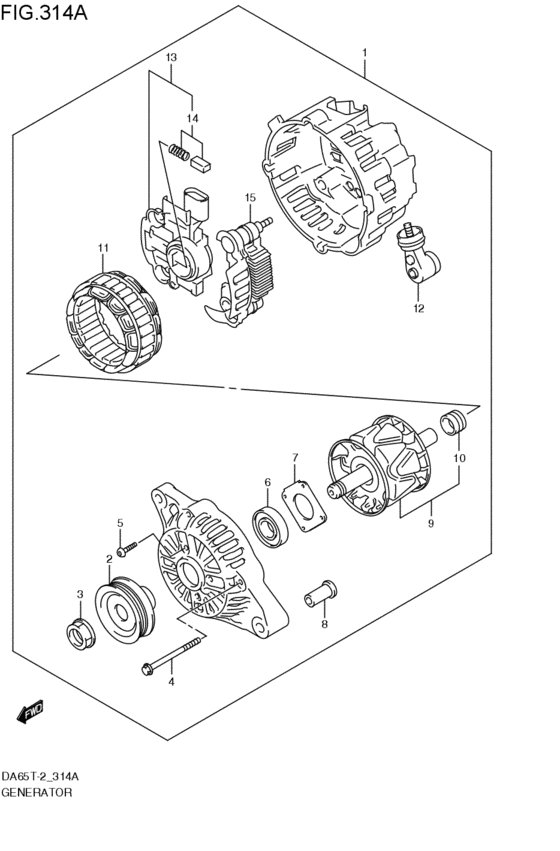

generator (2008-01-01~) 19
| # | OEM | Part name |
|---|---|---|
| 1 | 31400-76J00-000 | Generator assy |
| 1 | 31400-76J02-000 | GENERATOR ASSY |
| 2 | 31171-60A21-000 | PULLEY |
| 3 | 31775-50F20-000 | NUT |
| 4 | 31651-86520-000 | SCREW SET |
| 5 | 31586-86520-000 | SCREW SET |
| 6 | 31582-50F21-000 | Bearing |
| 6 | 31582-50F40-000 | BEARING,FR |
| 7 | 31585-83E00-000 | RETAINER,BEARING |
| 8 | 31616-83E00-000 | BUSH |
| 9 | 31710-65H10-000 | Rotor assy |
| 9 | 31710-65H11-000 | ROTOR ASSY |
| 10 | 31612-60A10-000 | Bearing,rr |
| 10 | 31612-60A11-000 | BEARING,REAR |
| 11 | 31410-65H10-000 | STATOR ASSY |
| 12 | 31514-61J00-000 | TERMINAL SET |
| 13 | 32500-76J00-000 | REGULATOR ASSY |
| 14 | 31631-60F30-000 | BRUSH SET |
| 15 | 31621-65H10-000 | Rectifier Assy |
| OEM | Part name | Category |
|---|---|---|
| 31171-60A21-000 | PULLEY | generator (2008-01-01~) |
| 31400-76J00-000 | Generator assy | generator (2008-01-01~) |
| 31400-76J02-000 | GENERATOR ASSY | generator (2008-01-01~) |
| 31410-65H10-000 | STATOR ASSY | generator (2008-01-01~) |
| 31514-61J00-000 | TERMINAL SET | generator (2008-01-01~) |
| 31582-50F21-000 | Bearing | generator (2008-01-01~) |
| 31582-50F40-000 | BEARING,FR | generator (2008-01-01~) |
| 31585-83E00-000 | RETAINER,BEARING | generator (2008-01-01~) |
| 31586-86520-000 | SCREW SET | generator (2008-01-01~) |
| 31612-60A10-000 | Bearing,rr | generator (2008-01-01~) |
| 31612-60A11-000 | BEARING,REAR | generator (2008-01-01~) |
| 31616-83E00-000 | BUSH | generator (2008-01-01~) |
| 31621-65H10-000 | Rectifier Assy | generator (2008-01-01~) |
| 31631-60F30-000 | BRUSH SET | generator (2008-01-01~) |
| 31651-86520-000 | SCREW SET | generator (2008-01-01~) |
| 31710-65H10-000 | Rotor assy | generator (2008-01-01~) |
| 31710-65H11-000 | ROTOR ASSY | generator (2008-01-01~) |
| 31775-50F20-000 | NUT | generator (2008-01-01~) |
| 32500-76J00-000 | REGULATOR ASSY | generator (2008-01-01~) |
