Search › Model › DA65T
DA65T

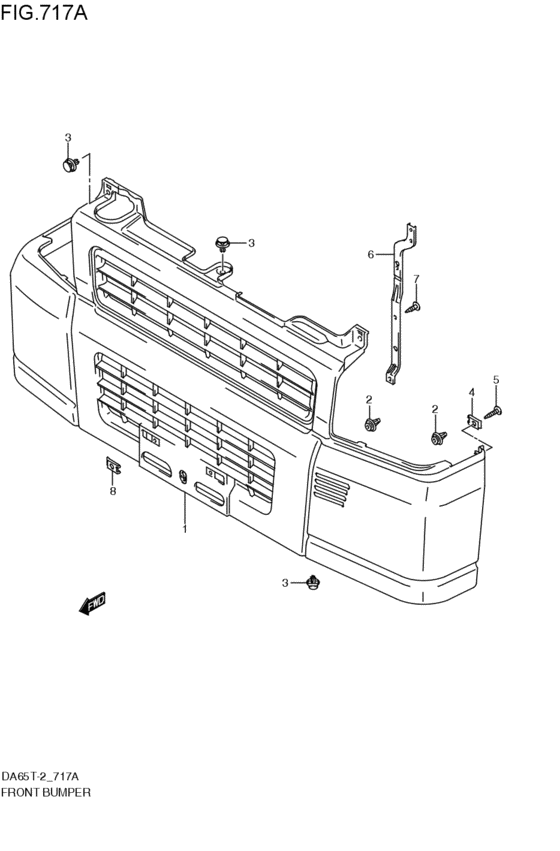

front bumper (2008-01-01~) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 71711-83J00-R7E | バンパ,フロント(ホワイト) |
| 2 | 09409-08320-000 | CLIP |
| 3 | 09409-08327-000 | CLIP |
| 4 | 09148-05047-000 | NUT |
| 5 | 03141-0516A-000 | SCREW |
| 6 | 71713-67H01-000 | REINFORCEMENT,FR BUMPER |
| 7 | 03541-0512A-000 | SCREW |
| 8 | 09148-06021-000 | NUT - Nut, air cleaner |
| OEM | Part name | Category |
|---|---|---|
| 03141-0516A-000 | SCREW | front bumper (2008-01-01~) |
| 03541-0512A-000 | SCREW | front bumper (2008-01-01~) |
| 09148-05047-000 | NUT | front bumper (2008-01-01~) |
| 09148-06021-000 | NUT - Nut, air cleaner | front bumper (2008-01-01~) |
| 09409-08320-000 | CLIP | front bumper (2008-01-01~) |
| 09409-08327-000 | CLIP | front bumper (2008-01-01~) |
| 71711-83J00-R7E | バンパ,フロント(ホワイト) | front bumper (2008-01-01~) |
| 71713-67H01-000 | REINFORCEMENT,FR BUMPER | front bumper (2008-01-01~) |
