| 01550-0820A-000 |
Bolt - Bolt, funnel bracket |

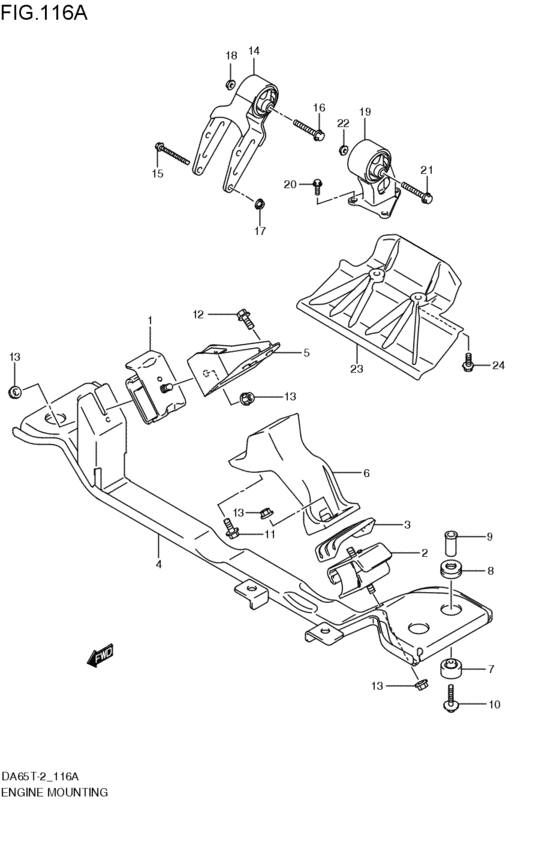

engine mounting (2008-01-01~) |
| 01550-0825A-000 |
Bolt |
engine mounting (2008-01-01~) |
| 01550-1025A-000 |
Bolt - Bolt, drive gear |
engine mounting (2008-01-01~) |
| 01550-1080A-000 |
Bolt |
engine mounting (2008-01-01~) |
| 08316-1010A-000 |
NUT - Nut, kick starter |
engine mounting (2008-01-01~) |
| 09116-10132-000 |
BOLT(10X76) |
engine mounting (2008-01-01~) |
| 11610-67H00-000 |
MOUNTING,ENG FR |
engine mounting (2008-01-01~) |
| 11610-68H00-000 |
MOUNTING,ENG FR |
engine mounting (2008-01-01~) |
| 11616-67H30-000 |
COVER,FR MTG,L |
engine mounting (2008-01-01~) |
| 11630-83J00-000 |
メンバ,エンジンフロントマウンチング |
engine mounting (2008-01-01~) |
| 11640-68H00-000 |
Bracket comp,eng fr mtg,r |
engine mounting (2008-01-01~) |
| 11640-68H10-000 |
BRACKET,ENG FR MTG,R |
engine mounting (2008-01-01~) |
| 11650-67H01-000 |
BRACKET,ENG FR MTG,L |
engine mounting (2008-01-01~) |
| 11684-68H00-000 |
CUSHION,MTG MEMBER LOWER |
engine mounting (2008-01-01~) |
| 11686-68H00-000 |
CUSHION,MTG MEMBER UPPER |
engine mounting (2008-01-01~) |
| 11687-67H00-000 |
COLLAR,MTG MEMBER |
engine mounting (2008-01-01~) |
| 11810-67H12-000 |
MOUNTING,RR |
engine mounting (2008-01-01~) |
| 12650-83J00-000 |
カバー,エンジンスプラッシュ |
engine mounting (2008-01-01~) |
