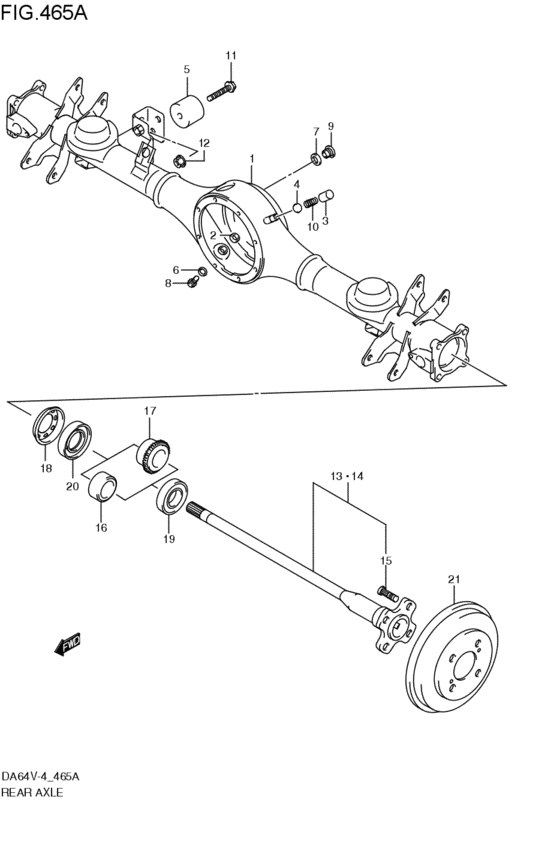

| 01550-1055A-000 |
Bolt |
rear axle (2008-01-01~) |
| 08316-1010A-000 |
NUT - Nut, kick starter |
rear axle (2008-01-01~) |
| 09119-12012-000 |
BOLT(12X38) |
rear axle (2008-01-01~) |
| 09168-12002-000 |
GASKET(12.1X16.2X3.7) |
rear axle (2008-01-01~) |
| 09168-20003-000 |
GASKET(20X27X2) - Gasket (20x27x2) |
rear axle (2008-01-01~) |
| 09247-12003-000 |
PLUG - Plug (12x13) |
rear axle (2008-01-01~) |
| 09248-20003-000 |
PLUG |
rear axle (2008-01-01~) |
| 09282-48006-000 |
SEAL,OIL(46X62X9) |
rear axle (2008-01-01~) |
| 09440-12004-000 |
SPRING |
rear axle (2008-01-01~) |
| 24861-71B70-000 |
MAGNET,OIL CLEANER |
rear axle (2008-01-01~) |
| 43485-67H00-000 |
RING,RR WHEEL BRG RETAINER |
rear axle (2008-01-01~) |
| 43511-68H00-000 |
DRUM,RR BRAKE |
rear axle (2008-01-01~) |
| 43588-73000-000 |
PROTECTOR,OIL SEAL |
rear axle (2008-01-01~) |
| 44210-68850-000 |
SHAFT SET,REAR AXLE,R |
rear axle (2008-01-01~) |
| 44220-68850-000 |
SHAFT SET,REAR AXLE,L |
rear axle (2008-01-01~) |
| 46510-68H50-000 |
HOUSING,RR AXLE |
rear axle (2008-01-01~) |
| 46541-52002-000 |
CAP,BREATHER |
rear axle (2008-01-01~) |
| 46542-52000-000 |
VALVE,BREATHER |
rear axle (2008-01-01~) |
| 46542-52001-000 |
VALVE,RR AXLE HSG BREATHER |
rear axle (2008-01-01~) |
| 46544-68H00-000 |
DAMPER,MASS |
rear axle (2008-01-01~) |
| 46860-67H00-000 |
BEARING,RR WHEEL |
rear axle (2008-01-01~) |
