| 02162-0612A-000 |
SCREW - Bolt, bracket |

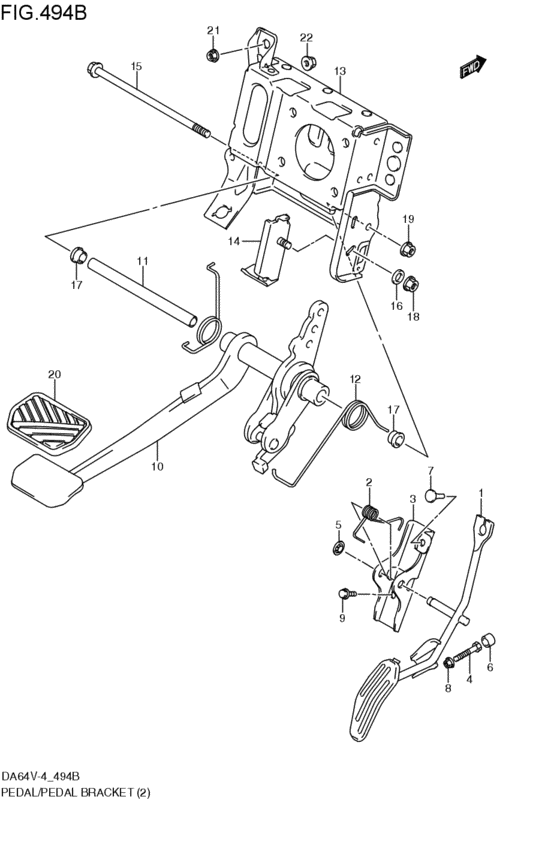

pedal / pedal bracket (AT; 2008-01-01~) |
| 08310-0006A-000 |
NUT |
pedal / pedal bracket (AT; 2008-01-01~) |
| 08310-0008A-000 |
NUT - Nut, bead stopper |
pedal / pedal bracket (AT; 2008-01-01~) |
| 08316-1008A-000 |
NUT - Nut, idle gear shaft |
pedal / pedal bracket (AT; 2008-01-01~) |
| 08316-1010A-000 |
NUT - Nut, kick starter |
pedal / pedal bracket (AT; 2008-01-01~) |
| 09100-06150-000 |
BOLT(6X31) - Bolt, adjuster |
pedal / pedal bracket (AT; 2008-01-01~) |
| 09148-09001-000 |
NUT |
pedal / pedal bracket (AT; 2008-01-01~) |
| 09160-08120-000 |
WASHER(8.5X18X2) |
pedal / pedal bracket (AT; 2008-01-01~) |
| 09251-09002-000 |
CAP(OD:13.6) |
pedal / pedal bracket (AT; 2008-01-01~) |
| 09251-09008-000 |
Cap(Od:13.6) |
pedal / pedal bracket (AT; 2008-01-01~) |
| 09307-13005-000 |
BUSH - Bushing |
pedal / pedal bracket (AT; 2008-01-01~) |
| 09321-06026-000 |
CUSHION |
pedal / pedal bracket (AT; 2008-01-01~) |
| 49410-68H00-000 |
PEDAL,ACCELERATOR |
pedal / pedal bracket (AT; 2008-01-01~) |
| 49491-68H00-000 |
SPRING,ACCEL PEDAL RETURN |
pedal / pedal bracket (AT; 2008-01-01~) |
| 49511-68H00-000 |
BRACKET,ACCELERATOR PEDAL |
pedal / pedal bracket (AT; 2008-01-01~) |
| 49610-68H10-000 |
Pedal comp,brake |
pedal / pedal bracket (AT; 2008-01-01~) |
| 49610-68H11-000 |
PEDAL,BRAKE |
pedal / pedal bracket (AT; 2008-01-01~) |
| 49671-68H00-000 |
SPACER,BRAKE PEDAL SHAFT |
pedal / pedal bracket (AT; 2008-01-01~) |
| 49691-68H00-000 |
SPRING,BRAKE PEDAL |
pedal / pedal bracket (AT; 2008-01-01~) |
| 49710-68H00-000 |
BRACKET,BRAKE PEDAL |
pedal / pedal bracket (AT; 2008-01-01~) |
| 49717-68H00-000 |
STAY,BRAKE PEDAL RELEASE |
pedal / pedal bracket (AT; 2008-01-01~) |
| 49722-65J00-000 |
BOLT,PEDAL SHAFT |
pedal / pedal bracket (AT; 2008-01-01~) |
| 49751-58J10-000 |
PAD,PEDAL |
pedal / pedal bracket (AT; 2008-01-01~) |
