| 08316-1010A-000 |
NUT - Nut, kick starter |

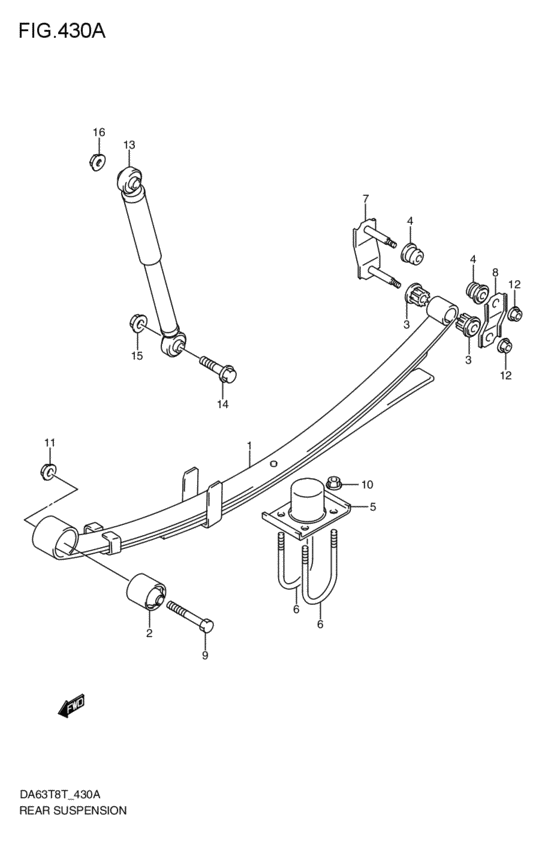

rear suspension (2008-01-01~) |
| 09103-12051-000 |
BOLT(12X50) |
rear suspension (2008-01-01~) |
| 09135-12013-000 |
BOLT(12X98) |
rear suspension (2008-01-01~) |
| 09159-10101-000 |
NUT |
rear suspension (2008-01-01~) |
| 09159-12068-000 |
NUT |
rear suspension (2008-01-01~) |
| 41310-67H30-000 |
SPRING ASSY,REAR |
rear suspension (2008-01-01~) |
| 41331-67H00-000 |
BUSHING,RR SPRING,FR |
rear suspension (2008-01-01~) |
| 41333-67H00-000 |
BUSHING,SPRING SHACKLE NO.2 |
rear suspension (2008-01-01~) |
| 41333-67H10-000 |
BUSHING,SPRING SHACKLE NO.2 |
rear suspension (2008-01-01~) |
| 41411-80201-000 |
U-BOLT,RR SPRING |
rear suspension (2008-01-01~) |
| 41460-67H00-000 |
SHACKLE ASSY,SPRING |
rear suspension (2008-01-01~) |
| 41461-67H00-000 |
プレート,スプリングシャックル,アウタ |
rear suspension (2008-01-01~) |
| 41461-67H01-000 |
PLATE,SPRING SHACKLE OTR |
rear suspension (2008-01-01~) |
| 41465-78A00-000 |
Bushing, spring shackle no.1 |
rear suspension (2008-01-01~) |
| 41465-78A10-000 |
BUSHING,SPRING SHACKLE NO.1 |
rear suspension (2008-01-01~) |
| 41700-67H00-000 |
ABSORBER ASSY,RR SHOCK |
rear suspension (2008-01-01~) |
| 41700-67H01-000 |
ABSORBER ASSY,RR SHOCK |
rear suspension (2008-01-01~) |
| 42150-67H00-000 |
BUMPER,RR SPRING |
rear suspension (2008-01-01~) |
