Search › Model › DA63T
DA63T

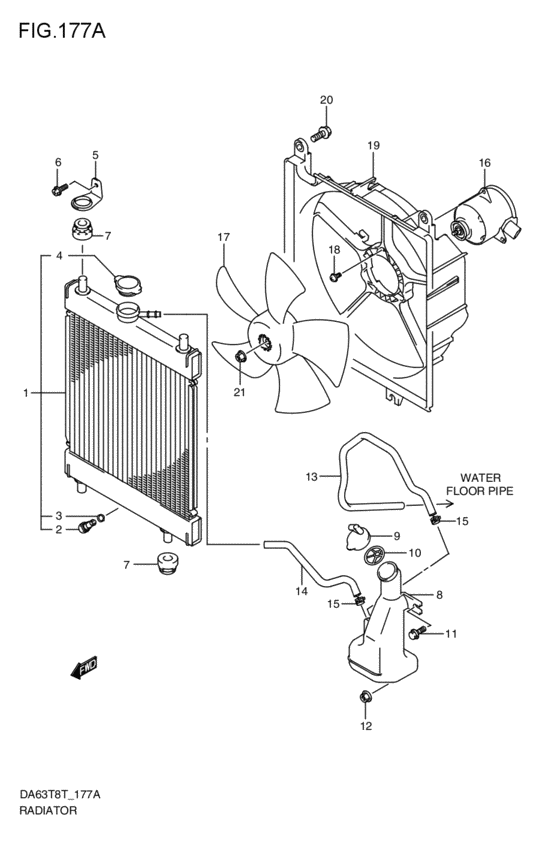

radiator (2008-01-01~) 23
| # | OEM | Part name |
|---|---|---|
| 1 | 17700-67H03-000 | RADIATOR ASSY |
| 2 | 17751-67H00-000 | COCK,DRAIN |
| 3 | 17759-67H00-000 | O-RING |
| 4 | 17920-68HB0-000 | CAP,RADIATOR 0.9 |
| 5 | 17861-67H00-000 | BRACKET,RDTR UPPER |
| 6 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 7 | 17879-77A10-000 | MOUNTING,RDTR |
| 8 | 17931-67H00-000 | タンク,ウォータリザーブ |
| 8 | 17931-67H01-000 | TANK,WATER RESERVE |
| 9 | 17932-67H00-000 | CAP,WTR RSVR TANK |
| 10 | 17933-60B00-000 | RUBBER,WTR RSV TANK CAP - Rubber, tank cap |
| 11 | 02162-0616A-000 | SCREW |
| 11 | 02162-0616B-000 | SCREW - Bolt, adjust |
| 12 | 09159-06076-000 | NUT |
| 13 | 17938-67H00-000 | HOSE,RSVR PIPE TO RSVR |
| 14 | 17939-67H00-000 | HOSE,RSVR RDTR TO RSVR |
| 15 | 09401-11419-000 | CLIP |
| 16 | 17120-67H00-000 | MOTOR ASSY,COOLING FAN |
| 17 | 17111-67H00-000 | FAN,COOLING |
| 18 | 17129-77A00-000 | SCREW,FAN MOTOR |
| 19 | 17761-67H02-000 | SHROUD,FAN |
| 20 | 01550-0616A-000 | Bolt |
| 21 | 17131-67H00-000 | NUT,COOLING FAN |
| OEM | Part name | Category |
|---|---|---|
| 01550-0616A-000 | Bolt | radiator (2008-01-01~) |
| 02162-0612A-000 | SCREW - Bolt, bracket | radiator (2008-01-01~) |
| 02162-0616A-000 | SCREW | radiator (2008-01-01~) |
| 02162-0616B-000 | SCREW - Bolt, adjust | radiator (2008-01-01~) |
| 09159-06076-000 | NUT | radiator (2008-01-01~) |
| 09401-11419-000 | CLIP | radiator (2008-01-01~) |
| 17111-67H00-000 | FAN,COOLING | radiator (2008-01-01~) |
| 17120-67H00-000 | MOTOR ASSY,COOLING FAN | radiator (2008-01-01~) |
| 17129-77A00-000 | SCREW,FAN MOTOR | radiator (2008-01-01~) |
| 17131-67H00-000 | NUT,COOLING FAN | radiator (2008-01-01~) |
| 17700-67H03-000 | RADIATOR ASSY | radiator (2008-01-01~) |
| 17751-67H00-000 | COCK,DRAIN | radiator (2008-01-01~) |
| 17759-67H00-000 | O-RING | radiator (2008-01-01~) |
| 17761-67H02-000 | SHROUD,FAN | radiator (2008-01-01~) |
| 17861-67H00-000 | BRACKET,RDTR UPPER | radiator (2008-01-01~) |
| 17879-77A10-000 | MOUNTING,RDTR | radiator (2008-01-01~) |
| 17920-68HB0-000 | CAP,RADIATOR 0.9 | radiator (2008-01-01~) |
| 17931-67H00-000 | タンク,ウォータリザーブ | radiator (2008-01-01~) |
| 17931-67H01-000 | TANK,WATER RESERVE | radiator (2008-01-01~) |
| 17932-67H00-000 | CAP,WTR RSVR TANK | radiator (2008-01-01~) |
| 17933-60B00-000 | RUBBER,WTR RSV TANK CAP - Rubber, tank cap | radiator (2008-01-01~) |
| 17938-67H00-000 | HOSE,RSVR PIPE TO RSVR | radiator (2008-01-01~) |
| 17939-67H00-000 | HOSE,RSVR RDTR TO RSVR | radiator (2008-01-01~) |
