Search › Model › DA63T
DA63T

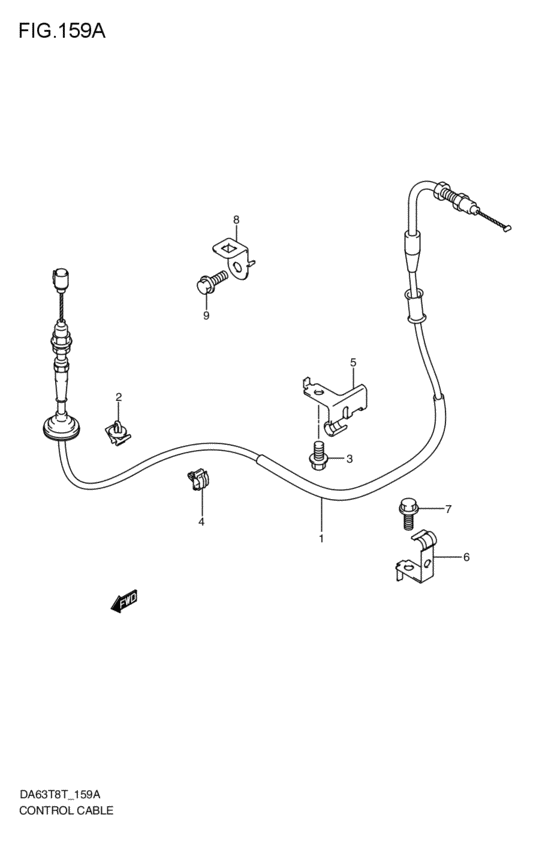

control cable (2008-01-01~) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 15910-67H01-000 | Cable assy,accel |
| 1 | 15910-67H02-000 | CABLE ASSY,ACCEL |
| 2 | 09403-07329-000 | Clamp |
| 3 | 09132-06006-000 | SCREW(6X12) |
| 4 | 09403-07327-000 | CLAMP - Clamp, sw lead wire |
| 5 | 15911-78A02-000 | CLAMP,ACCEL&CLUTCH CABLE |
| 6 | 15911-67H01-000 | CLAMP,ACCEL CABLE |
| 7 | 01550-0612A-000 | Bolt |
| 8 | 15918-67H30-000 | BRACKET,ACCEL CABLE CLAMP |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | control cable (2008-01-01~) |
| 09132-06006-000 | SCREW(6X12) | control cable (2008-01-01~) |
| 09403-07327-000 | CLAMP - Clamp, sw lead wire | control cable (2008-01-01~) |
| 09403-07329-000 | Clamp | control cable (2008-01-01~) |
| 15910-67H01-000 | Cable assy,accel | control cable (2008-01-01~) |
| 15910-67H02-000 | CABLE ASSY,ACCEL | control cable (2008-01-01~) |
| 15911-67H01-000 | CLAMP,ACCEL CABLE | control cable (2008-01-01~) |
| 15911-78A02-000 | CLAMP,ACCEL&CLUTCH CABLE | control cable (2008-01-01~) |
| 15918-67H30-000 | BRACKET,ACCEL CABLE CLAMP | control cable (2008-01-01~) |
