Search › Model › DA63T
DA63T

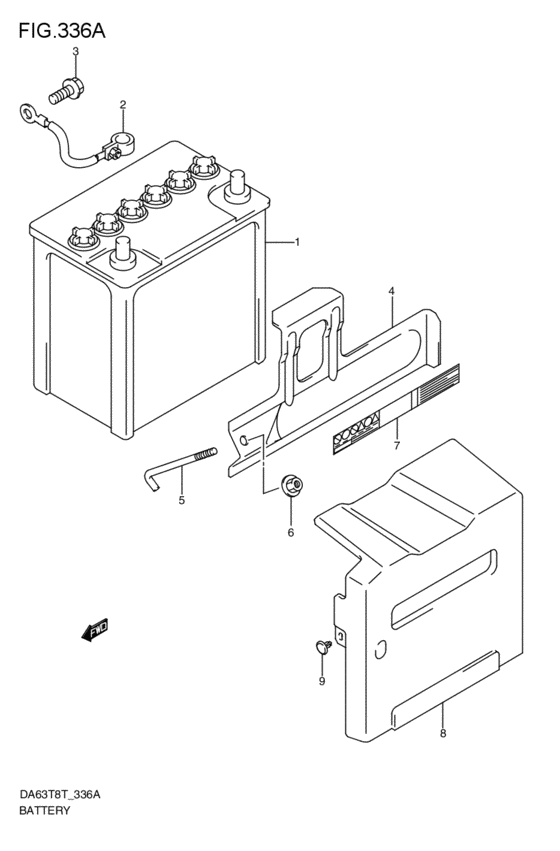

battery (2008-01-01~) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-71320-000 | Battery assy (38b20l,12v,28ah/ - Battery assy (38b20l,12v,28ah/5hr) |
| 2 | 33850-67H00-000 | ケーブル,バッテリグランド |
| 2 | 33850-67H01-000 | CABLE,BATTERY GND NO.1 |
| 3 | 09115-06005-000 | BOLT(6X16) |
| 4 | 72511-67H01-000 | BAND,BATTERY |
| 5 | 72513-67H00-000 | BOLT,BATTERY |
| 6 | 08316-1006A-000 | NUT |
| 7 | 33618-67H00-000 | ラベル,バッテリ |
| 8 | 72515-67H01-000 | COVER,BATTERY |
| 9 | 09409-08327-000 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 08316-1006A-000 | NUT | battery (2008-01-01~) |
| 09115-06005-000 | BOLT(6X16) | battery (2008-01-01~) |
| 09409-08327-000 | CLIP | battery (2008-01-01~) |
| 33610-71320-000 | Battery assy (38b20l,12v,28ah/ - Battery assy (38b20l,12v,28ah/5hr) | battery (2008-01-01~) |
| 33618-67H00-000 | ラベル,バッテリ | battery (2008-01-01~) |
| 33850-67H00-000 | ケーブル,バッテリグランド | battery (2008-01-01~) |
| 33850-67H01-000 | CABLE,BATTERY GND NO.1 | battery (2008-01-01~) |
| 72511-67H01-000 | BAND,BATTERY | battery (2008-01-01~) |
| 72513-67H00-000 | BOLT,BATTERY | battery (2008-01-01~) |
| 72515-67H01-000 | COVER,BATTERY | battery (2008-01-01~) |
