Search › Model › DA62W

DA62W

Suzuki CARRY-EVERY · 2001 · 2,484 parts · 126 categories

2,484 items

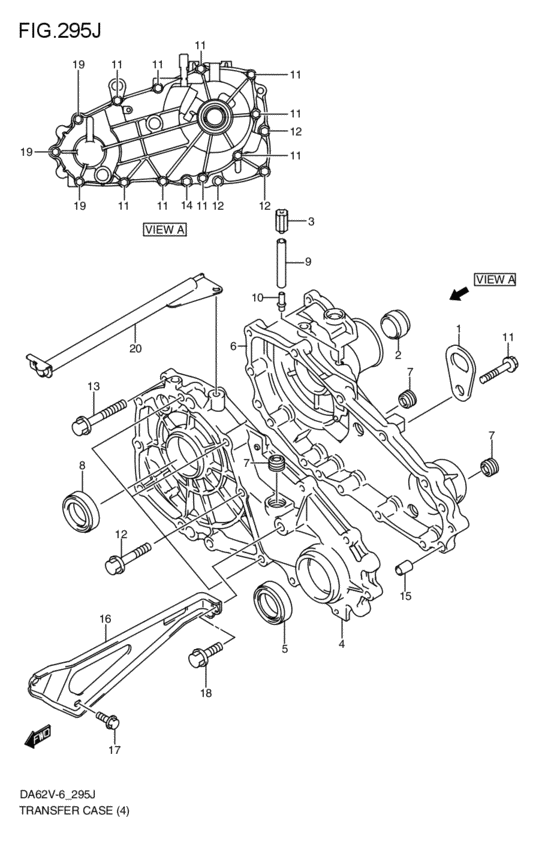

transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01) 36

#	OEM	Part name
1	11851-72B21-000	HOOK,ENGINE
2	24780-78A00-000	SEAL,EXTENSION CASE
3	27991-65D01-000	PLUG,BREATHER
4	29511-79A33-000	CASE,T/F,FR
5	29515-79A00-000	SEAL,T/F FR CASE OIL
6	29520-66H20-000	ケース,トランスファ,リヤ
6	29520-66H22-000	CASE,T/F,RR
7	09246-16010-000	PLUG
7	09246-16021-000	Plug,t/m Oil Drain
8	09282-35002-000	SEAL,OIL(35X55X9)
9	09352-70113-600	HOSE(7X11X600)
9	09352-70119-600	Hose(7X11X600)
10	09364-08004-000	UNION
11	01550-08403-000	Bolt
11	01550-0840B-000	Bolt
11	01550-0840A-000	Bolt
12	01550-10403-000	Bolt - Bolt, rear lh (10x40)
12	01550-1040B-000	Bolt
12	01550-1040A-000	Bolt
13	01550-10603-000	Bolt
13	01550-1060B-000	Bolt
13	01550-1060A-000	Bolt
14	01550-10953-000	Bolt
14	01550-1095A-000	Bolt
15	04211-13149-000	PIN
16	29621-71J10-000	スチフナ,トランスミッション/トランスファ,レフト
16	29621-71J11-000	New Genuine Part
17	01550-08203-000	Bolt
17	01550-0820B-000	Bolt
17	01550-0820A-000	Bolt - Bolt, funnel bracket
18	01550-10253-000	Bolt - Bolt, rr swgarm bracket
18	01550-1025B-000	Bolt - Bolt, rr swgarm bracket, l
18	01550-1025A-000	Bolt - Bolt, drive gear
19	09103-08038-000	BOLT(8X135) - Bolt (8x135)
20	29630-66H10-000	スチフナ,トランスミッション/トランスファライト
20	29630-66H11-000	スチフナ,トランスミッション/トランスファ,ライト

OEM	Part name	Category
01550-08203-000	Bolt	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
01550-0820A-000	Bolt - Bolt, funnel bracket	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
01550-0820B-000	Bolt	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
01550-08403-000	Bolt	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
01550-0840A-000	Bolt	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
01550-0840B-000	Bolt	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
01550-10253-000	Bolt - Bolt, rr swgarm bracket	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
01550-1025A-000	Bolt - Bolt, drive gear	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
01550-1025B-000	Bolt - Bolt, rr swgarm bracket, l	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
01550-10403-000	Bolt - Bolt, rear lh (10x40)	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
01550-1040A-000	Bolt	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
01550-1040B-000	Bolt	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
01550-10603-000	Bolt	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
01550-1060A-000	Bolt	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
01550-1060B-000	Bolt	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
01550-10953-000	Bolt	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
01550-1095A-000	Bolt	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
04211-13149-000	PIN	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
09103-08038-000	BOLT(8X135) - Bolt (8x135)	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
09246-16010-000	PLUG	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
09246-16021-000	Plug,t/m Oil Drain	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
09282-35002-000	SEAL,OIL(35X55X9)	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
09352-70113-600	HOSE(7X11X600)	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
09352-70119-600	Hose(7X11X600)	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
09364-08004-000	UNION	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
11851-72B21-000	HOOK,ENGINE	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
24780-78A00-000	SEAL,EXTENSION CASE	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
27991-65D01-000	PLUG,BREATHER	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
29511-79A33-000	CASE,T/F,FR	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
29515-79A00-000	SEAL,T/F FR CASE OIL	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
29520-66H20-000	ケース,トランスファ,リヤ	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
29520-66H22-000	CASE,T/F,RR	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
29621-71J10-000	スチフナ,トランスミッション/トランスファ,レフト	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
29621-71J11-000	New Genuine Part	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
29630-66H10-000	スチフナ,トランスミッション/トランスファライト	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)
29630-66H11-000	スチフナ,トランスミッション/トランスファ,ライト	transfer case (AT:4AT:4WD; 2003-08-01~2005-09-01)

Source: Public OEM parts-catalog data
Variants: 2 / 52
Category: 126
Collected: 2026-08-01
