| 01550-08253-000 |
Bolt, rear |

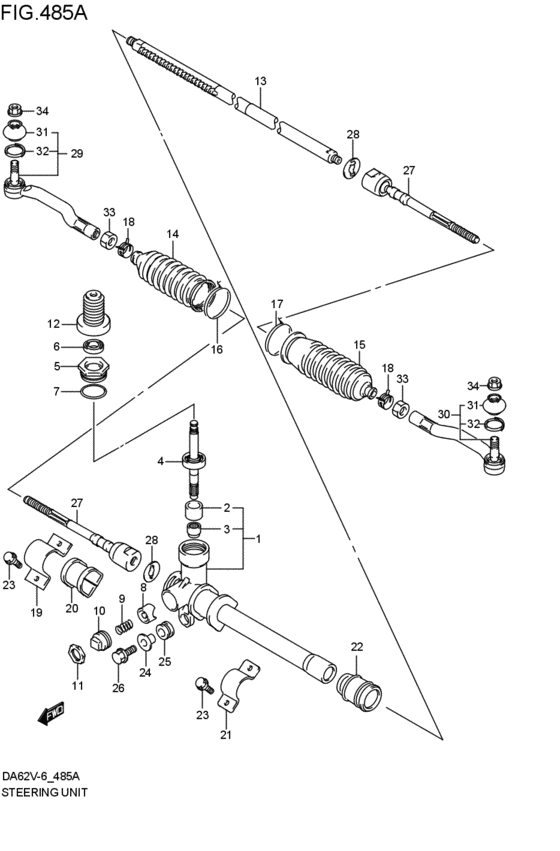

steering unit (2003-08-01~2005-09-01) |
| 01550-0825A-000 |
Bolt |
steering unit (2003-08-01~2005-09-01) |
| 01550-0825B-000 |
Bolt |
steering unit (2003-08-01~2005-09-01) |
| 01551-08203-000 |
Bolt |
steering unit (2003-08-01~2005-09-01) |
| 01551-0820A-000 |
Bolt |
steering unit (2003-08-01~2005-09-01) |
| 04111-3020A-000 |
PIN |
steering unit (2003-08-01~2005-09-01) |
| 08314-4012A-000 |
NUT |
steering unit (2003-08-01~2005-09-01) |
| 09140-12030-000 |
NUT - Nut, tie rod (rh thread) |
steering unit (2003-08-01~2005-09-01) |
| 09159-12053-000 |
NUT |
steering unit (2003-08-01~2005-09-01) |
| 09180-08174-000 |
SPACER(8.6X12X16.1) |
steering unit (2003-08-01~2005-09-01) |
| 09280-34003-000 |
O RING(D:2,ID:34.1) |
steering unit (2003-08-01~2005-09-01) |
| 09283-17024-000 |
SEAL,OIL(17X25X5) |
steering unit (2003-08-01~2005-09-01) |
| 09320-12028-000 |
CUSHION |
steering unit (2003-08-01~2005-09-01) |
| 09401-16403-000 |
CLIP - Clip, 2nd air hose no.2 |
steering unit (2003-08-01~2005-09-01) |
| 09401-23402-000 |
CLIP |
steering unit (2003-08-01~2005-09-01) |
| 09440-19011-000 |
SPRING |
steering unit (2003-08-01~2005-09-01) |
| 09460-01028-000 |
WIRE |
steering unit (2003-08-01~2005-09-01) |
| 09460-01029-000 |
WIRE |
steering unit (2003-08-01~2005-09-01) |
| 48500-78810-000 |
CASE SET,STRG GEAR |
steering unit (2003-08-01~2005-09-01) |
| 48521-82000-000 |
BRACKET,STEERING PINION SIDE |
steering unit (2003-08-01~2005-09-01) |
| 48522-82000-000 |
BRACKET,STEERING RACK SIDE |
steering unit (2003-08-01~2005-09-01) |
| 48525-60F00-000 |
MOUNT,STRG PINION SIDE |
steering unit (2003-08-01~2005-09-01) |
| 48526-77A00-000 |
MOUNT,STRG RACK SIDE |
steering unit (2003-08-01~2005-09-01) |
| 48531-78A00-000 |
RACK,STEERING |
steering unit (2003-08-01~2005-09-01) |
| 48534-60J00-000 |
PLUNGER,STEERING RACK |
steering unit (2003-08-01~2005-09-01) |
| 48535-76G01-000 |
SCREW,RACK DAMPER |
steering unit (2003-08-01~2005-09-01) |
| 48536-76G00-000 |
NUT,DAMPER SCREW LOCK |
steering unit (2003-08-01~2005-09-01) |
| 48550-78A00-000 |
PINION,STEERING |
steering unit (2003-08-01~2005-09-01) |
| 48553-77A00-000 |
BUSH,STEERING PINION |
steering unit (2003-08-01~2005-09-01) |
| 48555-74F00-000 |
BEARING,STEERING PINION NDL |
steering unit (2003-08-01~2005-09-01) |
| 48562-82000-000 |
Plug, pinion bearing |
steering unit (2003-08-01~2005-09-01) |
| 48562-82K00-000 |
PLUG,PINION BEARING |
steering unit (2003-08-01~2005-09-01) |
| 48571-58J00-000 |
BOOT,STEERING PINION SIDE |
steering unit (2003-08-01~2005-09-01) |
| 48572-58J00-000 |
BOOT,STEERING RACK SIDE |
steering unit (2003-08-01~2005-09-01) |
| 48581-77A00-000 |
COVER,STRG GEAR CASE |
steering unit (2003-08-01~2005-09-01) |
| 48800-60810-000 |
Boot Set |
steering unit (2003-08-01~2005-09-01) |
| 48810-78A00-000 |
End, steering tie rod rh |
steering unit (2003-08-01~2005-09-01) |
| 48810-78A01-000 |
END,STEERING TIE-ROD,R |
steering unit (2003-08-01~2005-09-01) |
| 48819-60B00-000 |
BOOT SET |
steering unit (2003-08-01~2005-09-01) |
| 48819-60B01-000 |
Boot Set |
steering unit (2003-08-01~2005-09-01) |
| 48820-78A00-000 |
End, steering tie rod lh |
steering unit (2003-08-01~2005-09-01) |
| 48820-78A01-000 |
END,STEERING TIE-ROD,L |
steering unit (2003-08-01~2005-09-01) |
| 48830-67H00-000 |
Tie-rod comp,steering |
steering unit (2003-08-01~2005-09-01) |
| 48830-67H01-000 |
TIE-ROD,STRG |
steering unit (2003-08-01~2005-09-01) |
| 48841-77A00-000 |
WASHER,STEERING TIE ROD LOCK |
steering unit (2003-08-01~2005-09-01) |
