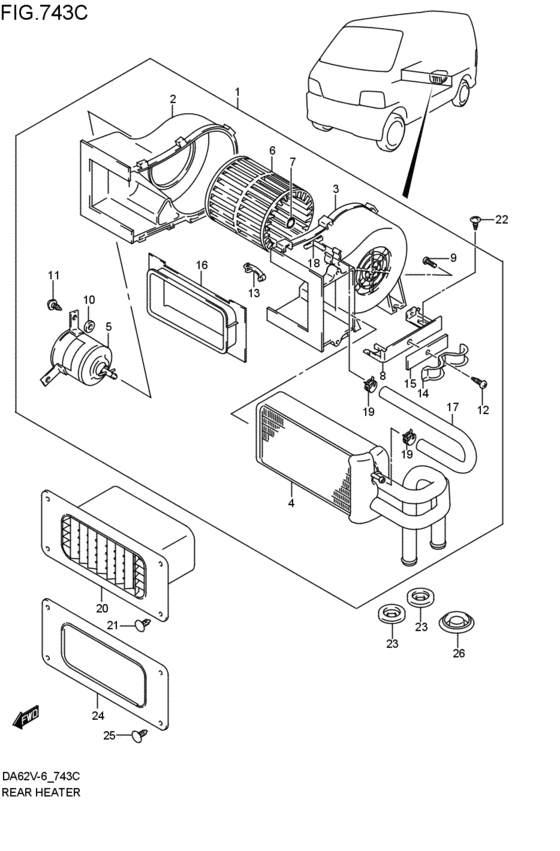

| 03111-0512A-000 |
SCREW |
rear heater (2003-08-01~2005-09-01) |
| 03112-05123-000 |
Screw |
rear heater (2003-08-01~2005-09-01) |
| 03141-06123-000 |
Screw 6x12 |
rear heater (2003-08-01~2005-09-01) |
| 03141-0612A-000 |
SCREW |
rear heater (2003-08-01~2005-09-01) |
| 03542-06123-000 |
Screw |
rear heater (2003-08-01~2005-09-01) |
| 03542-0612B-000 |
SCREW |
rear heater (2003-08-01~2005-09-01) |
| 08331-31066-000 |
CIRCLIP |
rear heater (2003-08-01~2005-09-01) |
| 09308-10005-000 |
GROMMET - Grommet, rr lead |
rear heater (2003-08-01~2005-09-01) |
| 09401-08411-000 |
CLIP |
rear heater (2003-08-01~2005-09-01) |
| 09409-05307-P4Z |
CLIP(GRAY) |
rear heater (2003-08-01~2005-09-01) |
| 09409-05307-T01 |
CLIP(GRAY) - Clip (gray) |
rear heater (2003-08-01~2005-09-01) |
| 74191-50F00-000 |
HOSE,HTR AIR |
rear heater (2003-08-01~2005-09-01) |
| 74300-78A01-000 |
ヒータユニット,リヤ |
rear heater (2003-08-01~2005-09-01) |
| 74311-85501-000 |
CASE,HTR,R |
rear heater (2003-08-01~2005-09-01) |
| 74312-85501-000 |
CASE,RR HTR,LOWER |
rear heater (2003-08-01~2005-09-01) |
| 74316-85500-000 |
CLAMP - Clamp, case |
rear heater (2003-08-01~2005-09-01) |
| 74319-78A00-000 |
PLUG |
rear heater (2003-08-01~2005-09-01) |
| 74320-50F00-000 |
C0RE,RR HEATER |
rear heater (2003-08-01~2005-09-01) |
| 74328-50F00-000 |
CUSHION,HTR PIPE |
rear heater (2003-08-01~2005-09-01) |
| 74329-50F00-000 |
CLAMP,HTR RR |
rear heater (2003-08-01~2005-09-01) |
| 74330-50X50-000 |
MOTOR ASSY |
rear heater (2003-08-01~2005-09-01) |
| 74341-85501-000 |
BLOWER,RR HEATER |
rear heater (2003-08-01~2005-09-01) |
| 74351-78A10-P4Z |
ガーニッシュ,リヤヒータ(グレー) |
rear heater (2003-08-01~2005-09-01) |
| 74361-50F01-000 |
STAY,REAR HEATER |
rear heater (2003-08-01~2005-09-01) |
| 74363-85500-000 |
CUSHION,MOTOR |
rear heater (2003-08-01~2005-09-01) |
| 74366-85500-000 |
SCREW,STAY |
rear heater (2003-08-01~2005-09-01) |
