| 01421-06253-000 |
Stud bolt |

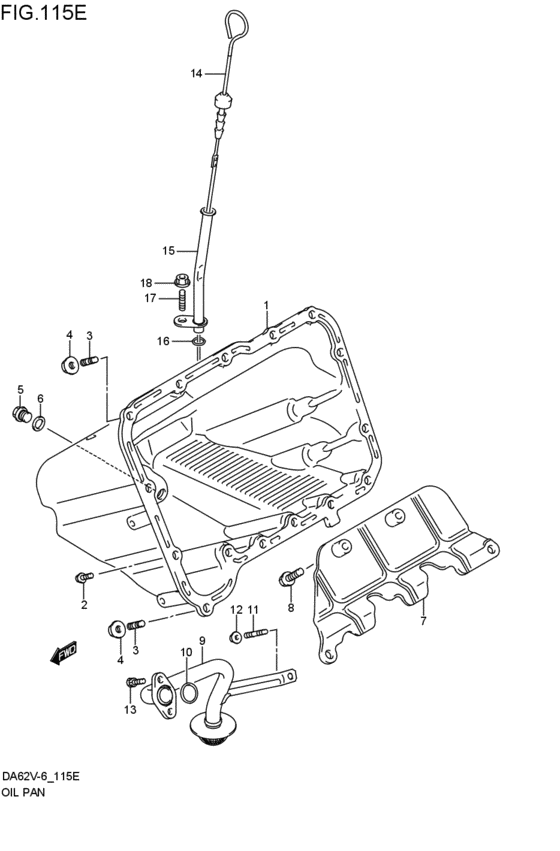

oil pan (2003-08-01~2005-09-01) |
| 01421-0625A-000 |
BOLT,STUD |
oil pan (2003-08-01~2005-09-01) |
| 01550-06253-000 |
Bolt (6x25) |
oil pan (2003-08-01~2005-09-01) |
| 01550-0625A-000 |
Bolt |
oil pan (2003-08-01~2005-09-01) |
| 01550-0625B-000 |
Bolt - Bolt, head cover |
oil pan (2003-08-01~2005-09-01) |
| 01570-06163-000 |
Bolt |
oil pan (2003-08-01~2005-09-01) |
| 01570-0616A-000 |
Bolt |
oil pan (2003-08-01~2005-09-01) |
| 01570-0616B-000 |
Bolt |
oil pan (2003-08-01~2005-09-01) |
| 08316-10063-000 |
Nut |
oil pan (2003-08-01~2005-09-01) |
| 08316-1006B-000 |
NUT |
oil pan (2003-08-01~2005-09-01) |
| 09103-06240-000 |
BOLT(6X16) |
oil pan (2003-08-01~2005-09-01) |
| 09108-06113-000 |
BOLT,STUD |
oil pan (2003-08-01~2005-09-01) |
| 09108-06130-000 |
BOLT,STUD |
oil pan (2003-08-01~2005-09-01) |
| 09168-14015-000 |
GASKET(14X20X1.5) - Gasket, oil hose union |
oil pan (2003-08-01~2005-09-01) |
| 09247-14027-000 |
PLUG(14X11.5) - Plug, oil drain |
oil pan (2003-08-01~2005-09-01) |
| 09247-14044-000 |
DRAIN PLUG (M14x1.5) |
oil pan (2003-08-01~2005-09-01) |
| 09280-10016-000 |
O RING(D:1.9,ID:9.8) |
oil pan (2003-08-01~2005-09-01) |
| 09280-16005-000 |
O RING(D:2.4,ID:15.8) - O ring, exhaust pipe |
oil pan (2003-08-01~2005-09-01) |
| 11511-67H01-000 |
パン,オイル |
oil pan (2003-08-01~2005-09-01) |
| 11511-67H04-000 |
PAN,OIL |
oil pan (2003-08-01~2005-09-01) |
| 11518-63J00-000 |
プラグ,オイルドレーン,14X22 |
oil pan (2003-08-01~2005-09-01) |
| 11518-63J01-000 |
Plug,Oil Drain |
oil pan (2003-08-01~2005-09-01) |
| 11540-67H11-000 |
プレート,オイルバッフル |
oil pan (2003-08-01~2005-09-01) |
| 11540-67H12-000 |
PLATE,OIL BAFFLE |
oil pan (2003-08-01~2005-09-01) |
| 16520-67H00-000 |
STRAINER,OIL PUMP |
oil pan (2003-08-01~2005-09-01) |
| 16910-67H00-000 |
GAUGE,OIL LEVEL |
oil pan (2003-08-01~2005-09-01) |
| 16930-65H00-000 |
GUIDE,OIL LEVEL GAUGE |
oil pan (2003-08-01~2005-09-01) |
