Search › Model › DA62W

DA62W

Suzuki CARRY-EVERY · 2001 · 2,484 parts · 126 categories

2,484 items

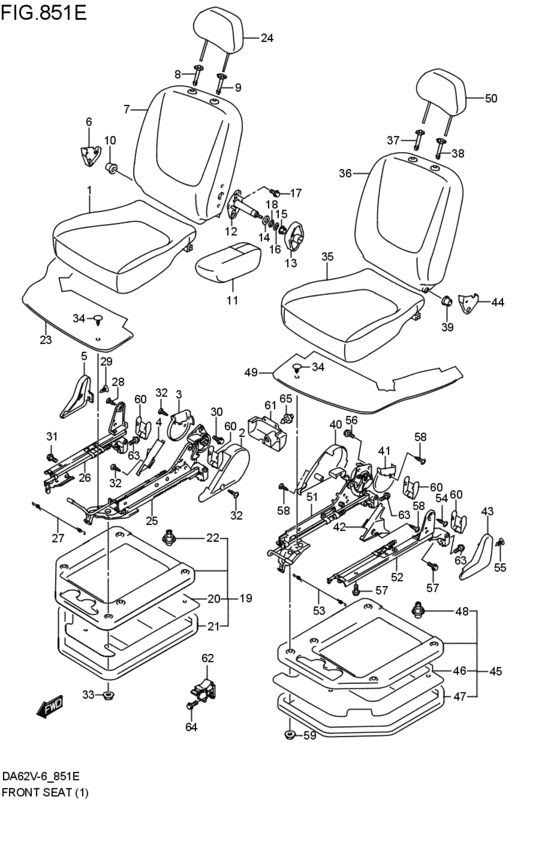

front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01) 68

#	OEM	Part name
1	85101-66H00-AJG	クッションアッシ,フロント,ライト(グレー)
2	85241-79A00-P4Z	COVER,FR,RECL INSIDE,R
3	85242-79A00-P4Z	COVER,FR RECL INS UPR,R
4	85243-79A00-P4Z	COVER,FR RECL INS LWR,R
5	85281-79A00-P4Z	COVER,FR ADJUSTER OUTSIDE,R
6	85282-79A00-P4Z	COVER,FR BACK HINGE,R
7	85301-66H40-AJG	バックアッシ,フロント,ライト(グレー)
8	85341-81A00-P4Z	GUIDE,HEADRESTRAINT
9	85840-81A10-P4Z	GUIDE,HEADRESTRAINT
10	85293-61H00-000	BUSH,FR BACK FIX
11	85501-66H00-AJA	アームレストアッシ,フロント,ライト
12	85540-66H00-000	HINGE,FR ARMREST
13	85571-66H00-P4Z	COVER,ARMREST HINGE
14	85293-52F00-000	WASHER,FR SEAT BACK HINGE
15	09159-08068-000	MUTTER
15	09159-08075-000	NUT
16	09162-10008-000	WASHER,LOCK - Lock washer, rod end
17	01550-08123-000	Bolt - Plug, oil gallery
17	01550-0812B-000	Bolt - Plug, drain
17	01550-0812A-000	Bolt
18	08322-01103-000	Washer
18	08322-0110B-000	WASHER - Washer, knuckle end
18	08322-0110A-000	WASHER - Washer, knuckle end
19	85410-79A21-000	PANEL ASSY,FR RISER,R
20	85427-79A00-000	INSULATOR,FR RISER,R
21	85428-79A00-000	WEATHERSTRIP,FR RISER
22	09410-00067-000	MALE
23	85430-63H01-S9J	CARPET,FR RISER,R
24	86401-76G00-AHT	ヘッドレストレイントアッシ
24	86401-76G01-AHT	ヘッドレストレイントアッシ
24	86401-76G02-AHT	New Genuine Part
25	86601-66H01-P4Z	ADJUSTER ASSY,FR INSIDE,R
26	86603-61HA0-000	ADJUSTER ASSY,FR OUTSIDE,R
27	86850-77A00-000	WIRE,FR ADJUSTER - Wire, fr adjuster
28	09116-06109-000	BOLT(6X12)
29	09409-10304-P4Z	CLIP(GRAY)
30	01550-10203-000	Bolt - Bolt, lower
30	01550-1020A-000	Bolt - Bolt, bal sprocket
31	01570-08203-000	Bolt
31	01570-0820B-000	Bolt
31	01570-0820A-000	Bolt
32	03241-05083-000	Screw
32	03241-0508A-000	SCREW
33	08316-1008A-000	NUT - Nut, idle gear shaft
34	09409-06326-P4Z	CLIP(GRAY)
35	85102-66H10-AJG	クッションアッシ,フロント,レフト(グレー)
36	85302-66H20-AJG	バックアッシ,フロント,レフト(グレー)
40	85741-79A00-P4Z	COVER,FR,RECL INSIDE,L
41	85742-79A00-P4Z	COVER,FR RECL INS UPR,L
42	85743-79A00-P4Z	COVER,FR RECL INS LWR,L
43	85781-79A00-P4Z	COVER,FR ADJUSTER OUTSIDE,L
44	85782-79A00-P4Z	COVER,FR BACK HINGE,L
45	85910-79A31-000	PANEL ASSY,FR RISER,L
46	85927-79A10-000	INSULATOR,FR RISOR,L
47	85428-79A10-000	WEATHERSTRIP,FR RISER - Weatherstrip, fr riser
49	85930-63H11-S9J	CARPET,FR RISER,L
51	86801-77A01-P4Z	ADJUSTER ASSY,FR INSIDE,L
52	86803-79A00-000	ADJUSTER ASSY,FR OUTSIDE,L
60	85495-79A00-P4Z	COVER,RR
61	85496-79A00-P4Z	COVER,SEAT BELT HARNESS
62	86650-77A01-000	ロックアッシ,フロント
62	86650-77A02-000	LOCK ASSY,FR
63	01551-10203-000	Bolt, 3rd striker
63	01551-1020A-000	Bolt
64	01570-06123-000	Bolt
64	01570-0612B-000	Bolt - Bolt, upper
64	01570-0612A-000	Bolt
65	09409-06314-P4Z	CLIP(GRAY)

OEM	Part name	Category
01550-08123-000	Bolt - Plug, oil gallery	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
01550-0812A-000	Bolt	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
01550-0812B-000	Bolt - Plug, drain	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
01550-10203-000	Bolt - Bolt, lower	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
01550-1020A-000	Bolt - Bolt, bal sprocket	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
01551-10203-000	Bolt, 3rd striker	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
01551-1020A-000	Bolt	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
01570-06123-000	Bolt	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
01570-0612A-000	Bolt	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
01570-0612B-000	Bolt - Bolt, upper	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
01570-08203-000	Bolt	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
01570-0820A-000	Bolt	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
01570-0820B-000	Bolt	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
03241-05083-000	Screw	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
03241-0508A-000	SCREW	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
08316-1008A-000	NUT - Nut, idle gear shaft	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
08322-01103-000	Washer	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
08322-0110A-000	WASHER - Washer, knuckle end	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
08322-0110B-000	WASHER - Washer, knuckle end	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
09116-06109-000	BOLT(6X12)	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
09159-08068-000	MUTTER	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
09159-08075-000	NUT	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
09162-10008-000	WASHER,LOCK - Lock washer, rod end	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
09409-06314-P4Z	CLIP(GRAY)	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
09409-06326-P4Z	CLIP(GRAY)	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
09409-10304-P4Z	CLIP(GRAY)	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
09410-00067-000	MALE	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85101-66H00-AJG	クッションアッシ,フロント,ライト(グレー)	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85102-66H10-AJG	クッションアッシ,フロント,レフト(グレー)	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85241-79A00-P4Z	COVER,FR,RECL INSIDE,R	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85242-79A00-P4Z	COVER,FR RECL INS UPR,R	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85243-79A00-P4Z	COVER,FR RECL INS LWR,R	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85281-79A00-P4Z	COVER,FR ADJUSTER OUTSIDE,R	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85282-79A00-P4Z	COVER,FR BACK HINGE,R	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85293-52F00-000	WASHER,FR SEAT BACK HINGE	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85293-61H00-000	BUSH,FR BACK FIX	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85301-66H40-AJG	バックアッシ,フロント,ライト(グレー)	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85302-66H20-AJG	バックアッシ,フロント,レフト(グレー)	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85341-81A00-P4Z	GUIDE,HEADRESTRAINT	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85410-79A21-000	PANEL ASSY,FR RISER,R	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85427-79A00-000	INSULATOR,FR RISER,R	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85428-79A00-000	WEATHERSTRIP,FR RISER	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85428-79A10-000	WEATHERSTRIP,FR RISER - Weatherstrip, fr riser	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85430-63H01-S9J	CARPET,FR RISER,R	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85495-79A00-P4Z	COVER,RR	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85496-79A00-P4Z	COVER,SEAT BELT HARNESS	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85501-66H00-AJA	アームレストアッシ,フロント,ライト	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85540-66H00-000	HINGE,FR ARMREST	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85571-66H00-P4Z	COVER,ARMREST HINGE	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85741-79A00-P4Z	COVER,FR,RECL INSIDE,L	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85742-79A00-P4Z	COVER,FR RECL INS UPR,L	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85743-79A00-P4Z	COVER,FR RECL INS LWR,L	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85781-79A00-P4Z	COVER,FR ADJUSTER OUTSIDE,L	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85782-79A00-P4Z	COVER,FR BACK HINGE,L	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85840-81A10-P4Z	GUIDE,HEADRESTRAINT	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85910-79A31-000	PANEL ASSY,FR RISER,L	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85927-79A10-000	INSULATOR,FR RISOR,L	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
85930-63H11-S9J	CARPET,FR RISER,L	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
86401-76G00-AHT	ヘッドレストレイントアッシ	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
86401-76G01-AHT	ヘッドレストレイントアッシ	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
86401-76G02-AHT	New Genuine Part	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
86601-66H01-P4Z	ADJUSTER ASSY,FR INSIDE,R	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
86603-61HA0-000	ADJUSTER ASSY,FR OUTSIDE,R	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
86650-77A01-000	ロックアッシ,フロント	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
86650-77A02-000	LOCK ASSY,FR	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
86801-77A01-P4Z	ADJUSTER ASSY,FR INSIDE,L	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
86803-79A00-000	ADJUSTER ASSY,FR OUTSIDE,L	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
86850-77A00-000	WIRE,FR ADJUSTER - Wire, fr adjuster	front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01)
