Search › Model › DA62W

DA62W

Suzuki CARRY-EVERY · 2001 · 2,484 parts · 126 categories

2,484 items

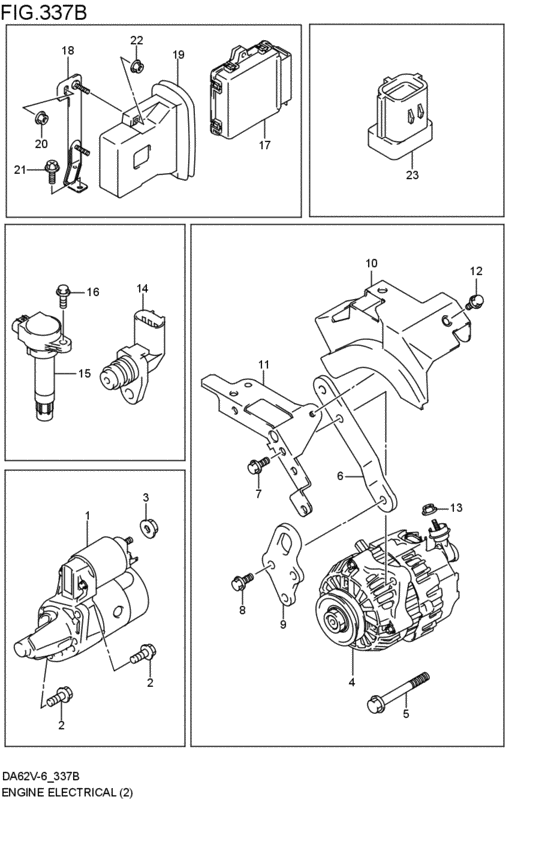

engine electrical (TURBO; 2003-08-01~2005-09-01) 51

#	OEM	Part name
1	31100-71J00-000	MOTOR ASSY,STARTING
1	31100-78A10-000	MOTOR ASSY,STARTING
2	01550-08303-000	Bolt
2	01550-0830B-000	Bolt
2	01550-0830A-000	Bolt - Bolt, mount oil seal cover
3	08316-10083-000	Nut
3	08316-1008B-000	NUT
4	31400-65H11-000	Generator assy
4	31400-65H12-000	GENERATOR ASSY
4	31400-65H13-000	Generator Assy
4	31400-65H30-000	Generator assy
4	31400-65H31-000	GENERATOR ASSY
5	01550-10853-000	Bolt
5	01550-1085A-000	Bolt
6	11561-65H00-000	ARM,GENERATOR
7	01550-08253-000	Bolt, rear
7	01550-0825B-000	Bolt
7	01550-0825A-000	Bolt
9	11851-65H00-000	HOOK,ENGINE
10	31614-65H00-000	カバー,ジェネレータ
11	31614-65H20-000	BRACKET,GENERATOR COVER
12	01550-06123-000	Bolt
12	01550-0612B-000	Bolt - Bolt, clamp
12	01550-0612A-000	Bolt
13	08316-10063-000	Nut
13	08316-1006B-000	NUT
14	33220-76G30-000	SENSOR ASSY,CAM POSITION
15	33400-76G01-000	コイルアッシ,イグニツシヨン(DENSO)
15	33400-85K10-000	COIL ASSY,IGNITION DE
15	33400-76G30-000	Coil assy,ignition
16	09135-06024-000	BOLT(6X23)
17	33920-71JB1-000	コントローラアッシ,インジェクション/エアコン
17	33920-71JB2-000	コントローラアッシ,インジェクション/エアコン
18	33924-76A00-000	BRACKET,EPI CONT
19	33925-78A10-000	COVER,EPI CONT
20	09159-06076-000	NUT
21	02162-06123-000	Bolt (6x12)
21	02162-0612B-000	SCREW - Bolt
21	02162-0612A-000	SCREW - Bolt, bracket
23	33926-78A40-000	RESISTOR,IGT NO.4
23	33926-78A50-000	RESISTOR,IGT NO.5
23	33926-78A60-000	RESISTOR,IGT NO.6
23	33926-78A70-000	RESISTOR,IGT NO.7
23	33926-78A80-000	RESISTOR,IGT NO.8
23	33926-78A90-000	RESISTOR,IGT NO.9
23	33926-78AA0-000	RESISTOR,IGT NO.10
23	33926-78AB0-000	RESISTOR,IGT NO.11
23	33926-78A01-000	RESISTOR,IGT NO.N
23	33926-78A10-000	RESISTOR,IGT NO.1
23	33926-78A20-000	RESISTOR,IGT NO.2
23	33926-78A30-000	RESISTOR,IGT NO.3

OEM	Part name	Category
01550-06123-000	Bolt	engine electrical (TURBO; 2003-08-01~2005-09-01)
01550-0612A-000	Bolt	engine electrical (TURBO; 2003-08-01~2005-09-01)
01550-0612B-000	Bolt - Bolt, clamp	engine electrical (TURBO; 2003-08-01~2005-09-01)
01550-08253-000	Bolt, rear	engine electrical (TURBO; 2003-08-01~2005-09-01)
01550-0825A-000	Bolt	engine electrical (TURBO; 2003-08-01~2005-09-01)
01550-0825B-000	Bolt	engine electrical (TURBO; 2003-08-01~2005-09-01)
01550-08303-000	Bolt	engine electrical (TURBO; 2003-08-01~2005-09-01)
01550-0830A-000	Bolt - Bolt, mount oil seal cover	engine electrical (TURBO; 2003-08-01~2005-09-01)
01550-0830B-000	Bolt	engine electrical (TURBO; 2003-08-01~2005-09-01)
01550-10853-000	Bolt	engine electrical (TURBO; 2003-08-01~2005-09-01)
01550-1085A-000	Bolt	engine electrical (TURBO; 2003-08-01~2005-09-01)
02162-06123-000	Bolt (6x12)	engine electrical (TURBO; 2003-08-01~2005-09-01)
02162-0612A-000	SCREW - Bolt, bracket	engine electrical (TURBO; 2003-08-01~2005-09-01)
02162-0612B-000	SCREW - Bolt	engine electrical (TURBO; 2003-08-01~2005-09-01)
08316-10063-000	Nut	engine electrical (TURBO; 2003-08-01~2005-09-01)
08316-1006B-000	NUT	engine electrical (TURBO; 2003-08-01~2005-09-01)
08316-10083-000	Nut	engine electrical (TURBO; 2003-08-01~2005-09-01)
08316-1008B-000	NUT	engine electrical (TURBO; 2003-08-01~2005-09-01)
09135-06024-000	BOLT(6X23)	engine electrical (TURBO; 2003-08-01~2005-09-01)
09159-06076-000	NUT	engine electrical (TURBO; 2003-08-01~2005-09-01)
11561-65H00-000	ARM,GENERATOR	engine electrical (TURBO; 2003-08-01~2005-09-01)
11851-65H00-000	HOOK,ENGINE	engine electrical (TURBO; 2003-08-01~2005-09-01)
31100-71J00-000	MOTOR ASSY,STARTING	engine electrical (TURBO; 2003-08-01~2005-09-01)
31100-78A10-000	MOTOR ASSY,STARTING	engine electrical (TURBO; 2003-08-01~2005-09-01)
31400-65H11-000	Generator assy	engine electrical (TURBO; 2003-08-01~2005-09-01)
31400-65H12-000	GENERATOR ASSY	engine electrical (TURBO; 2003-08-01~2005-09-01)
31400-65H13-000	Generator Assy	engine electrical (TURBO; 2003-08-01~2005-09-01)
31400-65H30-000	Generator assy	engine electrical (TURBO; 2003-08-01~2005-09-01)
31400-65H31-000	GENERATOR ASSY	engine electrical (TURBO; 2003-08-01~2005-09-01)
31614-65H00-000	カバー,ジェネレータ	engine electrical (TURBO; 2003-08-01~2005-09-01)
31614-65H20-000	BRACKET,GENERATOR COVER	engine electrical (TURBO; 2003-08-01~2005-09-01)
33220-76G30-000	SENSOR ASSY,CAM POSITION	engine electrical (TURBO; 2003-08-01~2005-09-01)
33400-76G01-000	コイルアッシ,イグニツシヨン(DENSO)	engine electrical (TURBO; 2003-08-01~2005-09-01)
33400-76G30-000	Coil assy,ignition	engine electrical (TURBO; 2003-08-01~2005-09-01)
33400-85K10-000	COIL ASSY,IGNITION DE	engine electrical (TURBO; 2003-08-01~2005-09-01)
33920-71JB1-000	コントローラアッシ,インジェクション/エアコン	engine electrical (TURBO; 2003-08-01~2005-09-01)
33920-71JB2-000	コントローラアッシ,インジェクション/エアコン	engine electrical (TURBO; 2003-08-01~2005-09-01)
33924-76A00-000	BRACKET,EPI CONT	engine electrical (TURBO; 2003-08-01~2005-09-01)
33925-78A10-000	COVER,EPI CONT	engine electrical (TURBO; 2003-08-01~2005-09-01)
33926-78A01-000	RESISTOR,IGT NO.N	engine electrical (TURBO; 2003-08-01~2005-09-01)
33926-78A10-000	RESISTOR,IGT NO.1	engine electrical (TURBO; 2003-08-01~2005-09-01)
33926-78A20-000	RESISTOR,IGT NO.2	engine electrical (TURBO; 2003-08-01~2005-09-01)
33926-78A30-000	RESISTOR,IGT NO.3	engine electrical (TURBO; 2003-08-01~2005-09-01)
33926-78A40-000	RESISTOR,IGT NO.4	engine electrical (TURBO; 2003-08-01~2005-09-01)
33926-78A50-000	RESISTOR,IGT NO.5	engine electrical (TURBO; 2003-08-01~2005-09-01)
33926-78A60-000	RESISTOR,IGT NO.6	engine electrical (TURBO; 2003-08-01~2005-09-01)
33926-78A70-000	RESISTOR,IGT NO.7	engine electrical (TURBO; 2003-08-01~2005-09-01)
33926-78A80-000	RESISTOR,IGT NO.8	engine electrical (TURBO; 2003-08-01~2005-09-01)
33926-78A90-000	RESISTOR,IGT NO.9	engine electrical (TURBO; 2003-08-01~2005-09-01)
33926-78AA0-000	RESISTOR,IGT NO.10	engine electrical (TURBO; 2003-08-01~2005-09-01)
33926-78AB0-000	RESISTOR,IGT NO.11	engine electrical (TURBO; 2003-08-01~2005-09-01)
