Search › Model › DA62V
DA62V

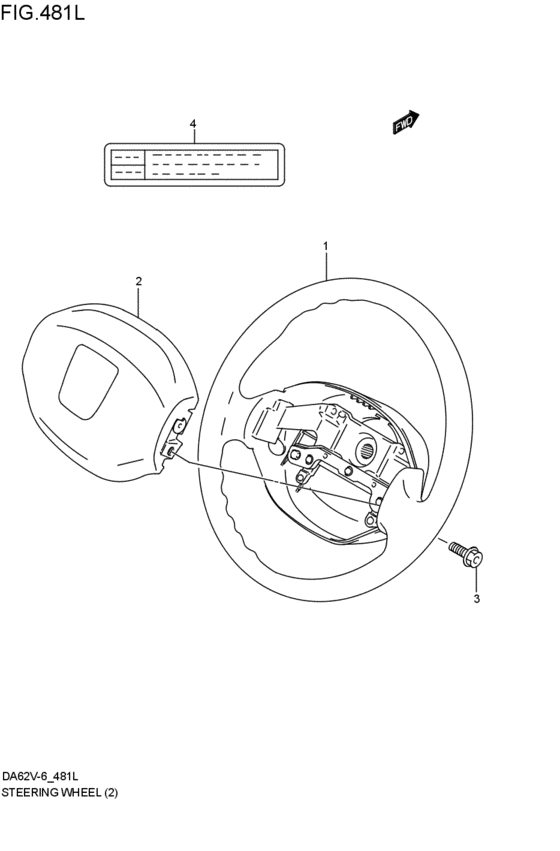

steering wheel (AB; 2003-08-01~2005-09-01) 5
| # | OEM | Part name |
|---|---|---|
| 1 | 48110-62H10-P4Z | WHEEL ASSY,STEERING |
| 1 | 48110-62H11-P4Z | WHEEL ASSY,STRG |
| 2 | 48150-77G30-P4Z | モジュールアッシ,エアバッグ(グレー) |
| 3 | 09119-06093-000 | Bolt |
| 4 | 79171-78A01-000 | LABEL,ENGINE COMPARTMENT A/B |
| OEM | Part name | Category |
|---|---|---|
| 09119-06093-000 | Bolt | steering wheel (AB; 2003-08-01~2005-09-01) |
| 48110-62H10-P4Z | WHEEL ASSY,STEERING | steering wheel (AB; 2003-08-01~2005-09-01) |
| 48110-62H11-P4Z | WHEEL ASSY,STRG | steering wheel (AB; 2003-08-01~2005-09-01) |
| 48150-77G30-P4Z | モジュールアッシ,エアバッグ(グレー) | steering wheel (AB; 2003-08-01~2005-09-01) |
| 79171-78A01-000 | LABEL,ENGINE COMPARTMENT A/B | steering wheel (AB; 2003-08-01~2005-09-01) |
